10 ADP200 • Quick installation guide - Specifications and connection
2.4 Product identication
The basic technical data of the inverter are included in the product code and data plate.
The inverter must be selected according to the rated current of the motor.
The rated output current of the drive must be higher than or equal to the rated current of the motor used.

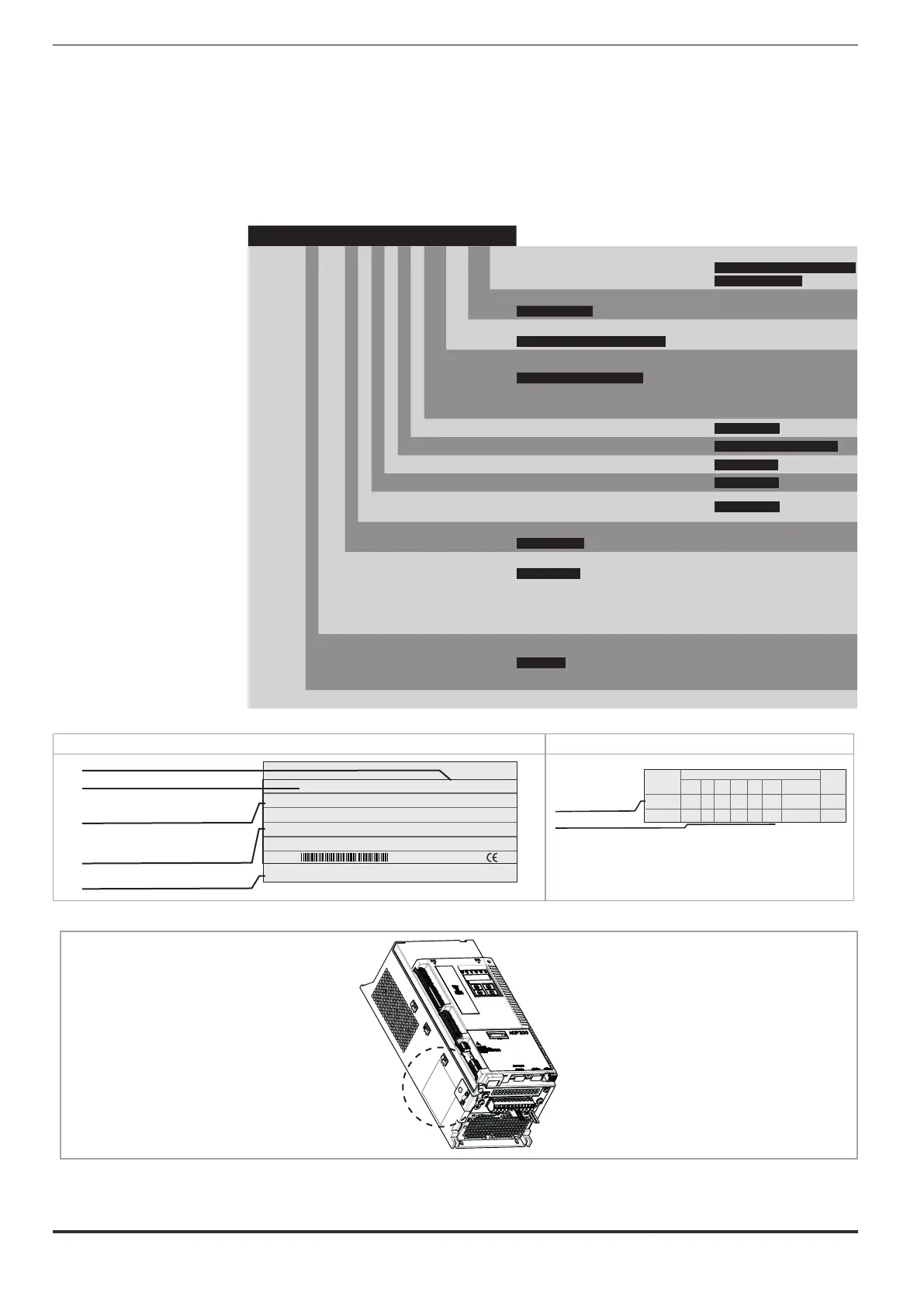

Name of model (code)
ADP200 2 075 -K B P -F-4-C-RS-ER -24 -I01
I/O card version:
[Empty] = standard I/O card EXP-IO-
D8A4R2-ADP
IO1 = optional I/O card EXP-
IO-D10A3R2-ADP
24 VDC external power supply:
24 = included,
[empty] = not included
Encoder Repetition:
ER = with encoder repetition;
[Empty] = not included
Encoder card:
RS = Resolver (standard);
ED = EnDat;
SI = Sinusoidal Encoder;
DE = Digital Encoder;
HI = Hiperface;
SC = Sinusoidal SinCos
Encoder;
CANBus: C = included
Rated voltage: 4 = 400Vca, three-phase
EMI Filter: F = included
PID IMM application: P = included
Braking unit:
X = not included
B = included
Keypad:
K = included
(1-line x 4-character alpha-
numerical LED display)
Inverter power in kW:
075 = 7.5kW
110 = 11kW
150 = 15kW
185 = 18.5kW
220 = 22kW
300 = 30kW
370 = 37kW
450 = 45kW
550 = 55kW
750 = 75kW
Mechanical dimensions of the drive:
2 = size 2
3 = size 3
4 = size 4
5 = size 5
5S = size 5 slim
Servodrive, ADP200 series
Data plate Firmware and card revision plate
Drive model
Serial number
Input (mains supply, frequency, AC Input
Current at constant torque)
Output (Output voltage, frequency, power,
current, overload)
Approvals
Type : ADP200-2075-KBP -4-C-RS S/N: 09012345
Inp: 230Vac-480Vac (Fctry set=400) 50/60Hz 3Ph
24A@400Vac 21A@480Vac
Out : 0-480Vac 300Hz 3Ph 7.5kW@400Vac 10 Hp @ 460Vac
18.5A @400V Ovld . 178%-60s 16.7A@460V Ovld.170%-60s
Code
Made in Italy
Firmware HW release S/N 09012345 Prod.
Release
DFPRSBUSW.CFG
CONF
Cards revision
Firmware revision
Power
Regulation
Safety
Braking unit
Software
revision
SF 10.10.10 A1BA
Position of plates on the drive
