ADP200 Application PID-IMM User Manual Pag. 19 of 80
Step 1 - Electrical connections
Make the connections as described in paragraph 7.3.2. of ADP200-QS manual.
Checks to be performed before powering the drive
• Check that the supply voltage is correct and that the input terminals on the drive (L1, L2 and L3) are
connected correctly.
• Check that the output terminals on the drive (U, V and W) are connected to the motor correctly.
• Check that all the drive control circuit terminals are connected correctly. Check that all control inputs are
open.
• Check the encoder connections, see ADP200 QS manual, Appendix section A.3.
Powering the drive
• After completing all the checks described above, power the drive and proceed to step 2.

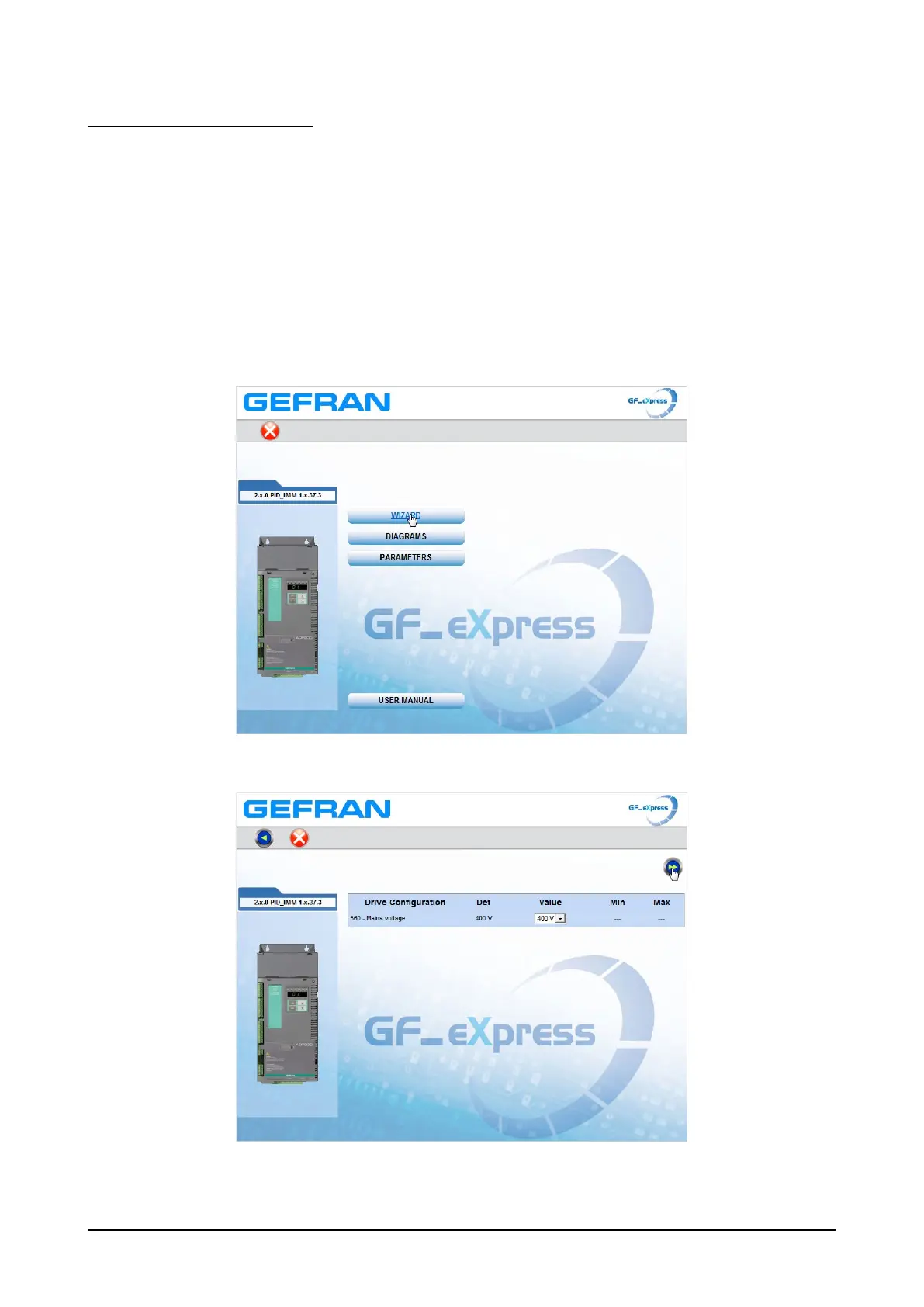

To start the guided installation, press “WIZARD” The following page appears:
Set the supply voltage value (for example, 400V).
Press the forward key to display the next page setting motor parameters.
