ADP200 Application PID-IMM User Manual Pag. 27 of 80

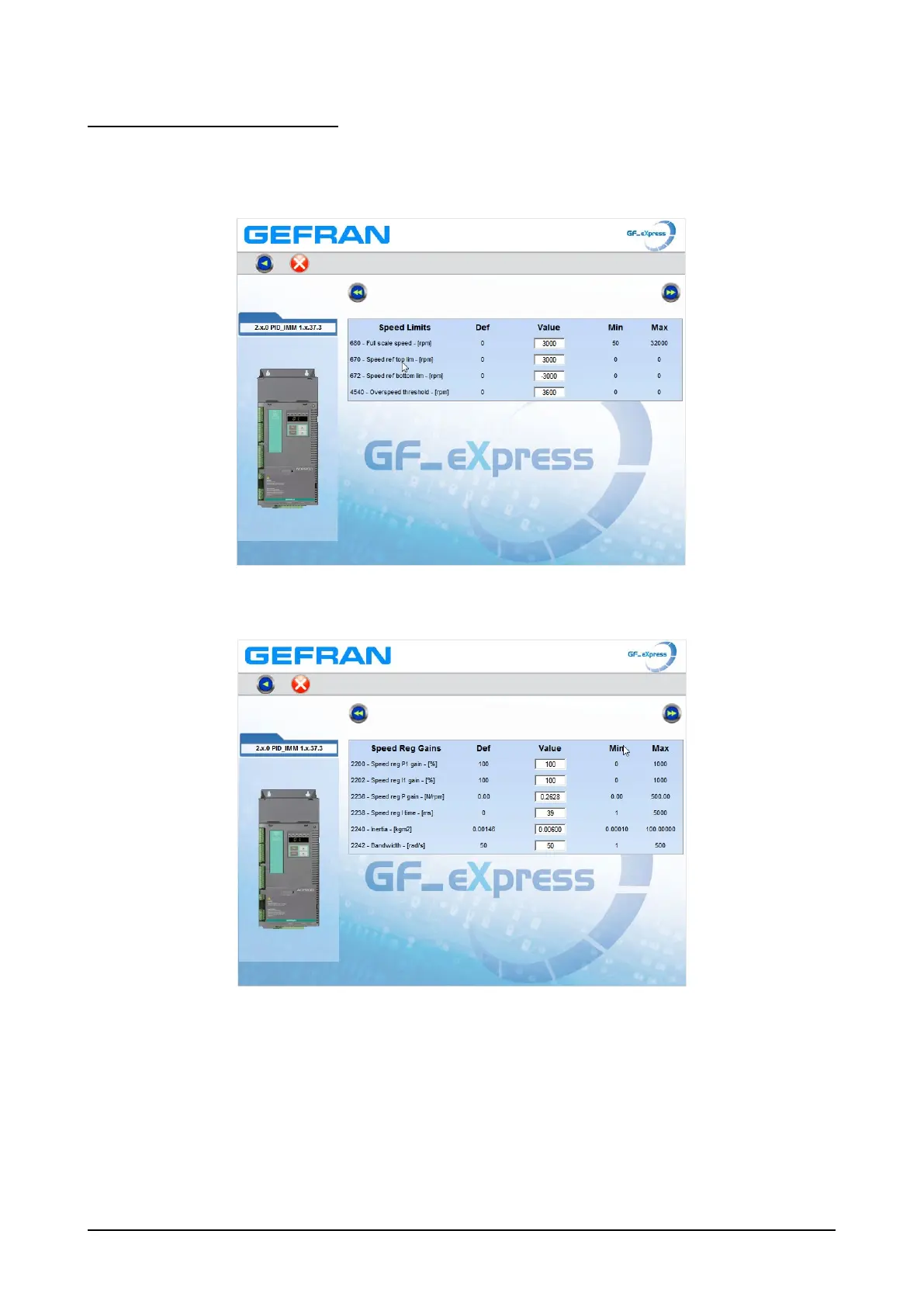

Step 6 - Setting speed parameters
Setting the maximum speed reference value: this defines the maximum motor speed value (in rpm) that can
be reached with each single reference signal (analog or digital).
Setting of the threshold above which the Overspeed alarm [23] is enabled.
Enter the full-scale speed value. The overspeed threshold is automatically calculated.
Go to the next page.
Speed loop tuning values are entered on this page.
See the “1S9PFPEN_...._ADP200FP-SYN_EN” manual for more information.
Next page.
