913323/CP0112 22 PRINTED IN U.S.A.

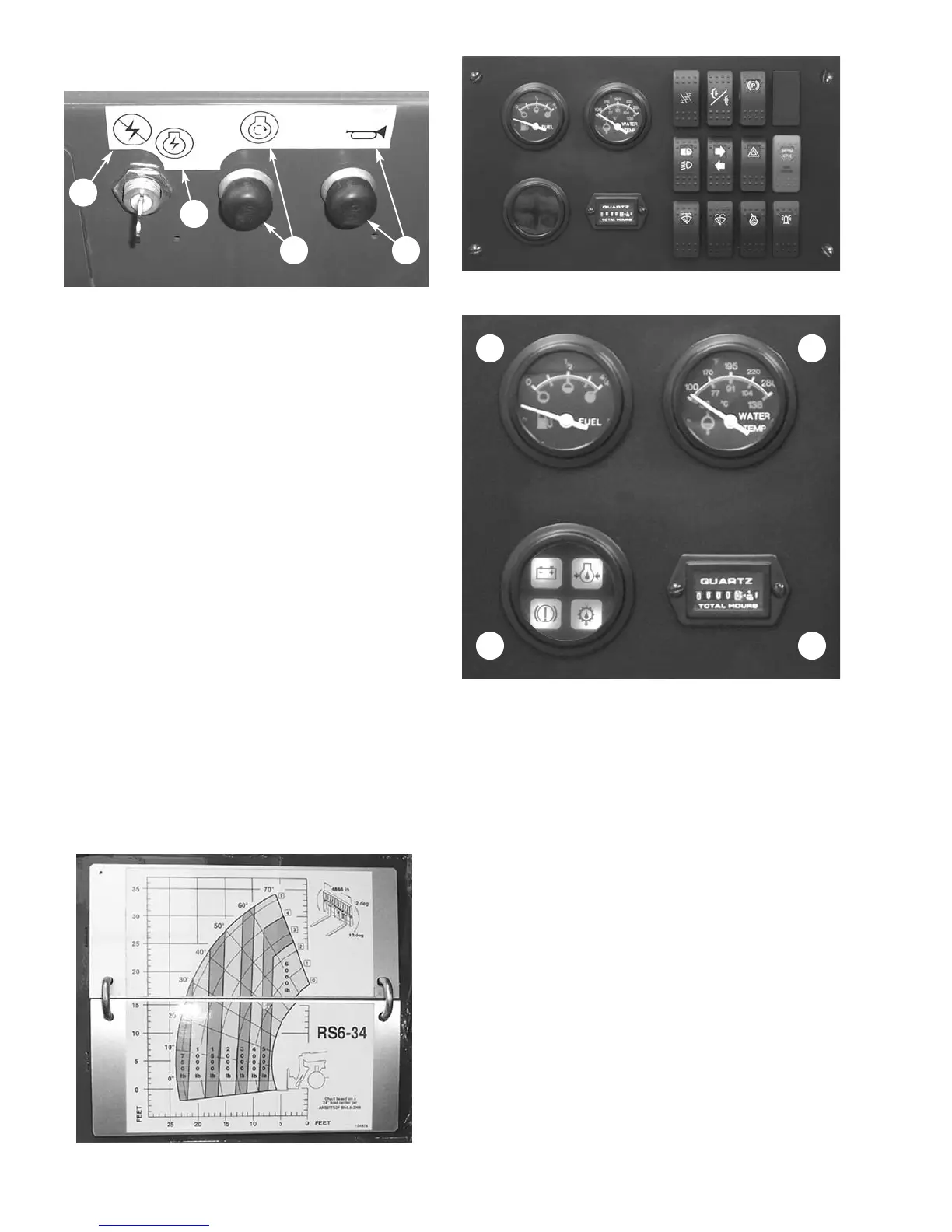

A - Fuel Level Gauge: The upper left gauge in the
instrument panel, it indicates the amount of fuel in the
fuel tank.
B - Coolant Temperature Gauge: The upper right
gauge in the instrument panel, it indicates the temper-
ature of the engine coolant. Under normal conditions,
this gauge should indicate approximately 185°F
(85°C).
C - Hourmeter: Located to the right of the lamp clus-
ter gauge, it indicates the total operating time of the
machine and should be used for keeping the mainte-
nance log.
D - Lamp Cluster Gauge: The lower left gauge in the
instrument panel, it contains four indicator lamps. The
functions of these lamps are shown on the next page:
DASH PANEL AREA
A1 - Key Switch OFF: When the key is vertical in the
keyswitch, power is disconnected from the battery to
the control and instrument panel electrical circuits.
This is the only position in which the key can be insert-
ed and removed.
A2 - Key Switch ON: When the key is turned one
position clockwise from the vertical (OFF) position,
power from the battery is supplied to the engine and all
control and instrument panel electrical circuits.
NOTE: If the engine requires repeated attempts
to start, the key MUST be returned to the OFF
position between starting attempts to prevent bat-
tery run down.
B - Start Button: With key switch in the ON position,
press the start button to activate the starter. Release it
as soon as the engine starts.
C - Horn Button: With the key switch ON, press the
horn button to activate warning sound.
Load Zone Charts: A series of flip charts show lift
height and reach limits relative to the load weight
being handled with various attachment tools.
Instrument and Switch Panel
Ignition Switch, Start and Horn Button
A1
CB
A2
D
A B
C
Instrument Panel
To Next Page
