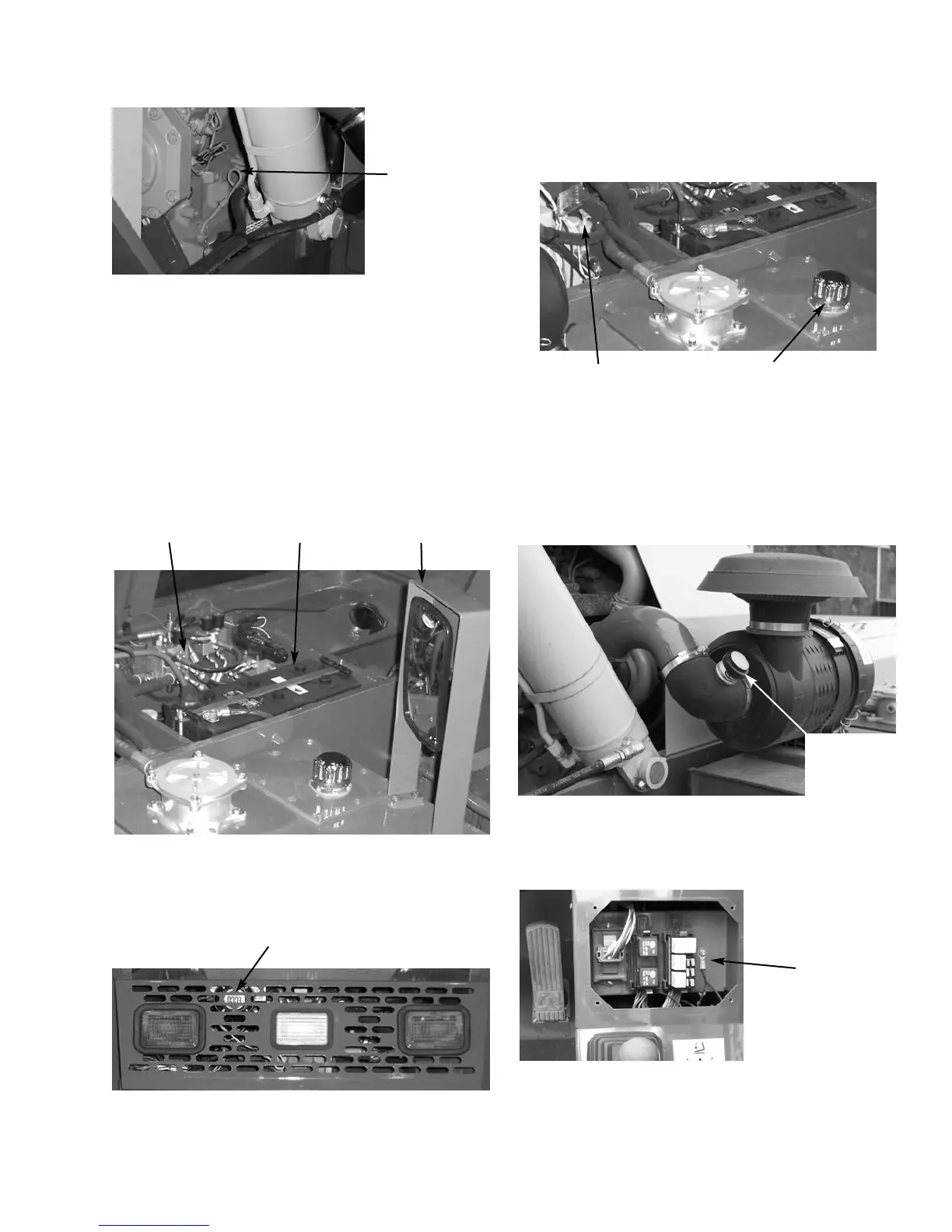

Engine Oil Level: The dipstick is located on the right
side of the engine.
Hydraulic Pressure Test Ports: A gauge can be
attached to these ports to check main valve, joystick
and steering pressures.
Side-View Mirror: Located on the front outside cor-
ner of the fuel tank, this mirror provides the operator
with a view toward the rear of the machine.
Battery Compartment: The battery is located under
the access cover on the front hood section.
Backup Alarm: Located inside the rear frame cover,
this alarm produces a loud warning sound when the
machine is in reverse.
Transmission Oil Level: The dipstick is located under
the access cover on the front hood section.
Hydraulic Reservoir Oil Level and Fill Cap: The
dipstick on the fill cap of the reservoir indicates the
level of the hydraulic oil in the reservoir.
Air Filter Restriction Indicator: Located in the rub-
ber connector at the rear of the air cleaner, it indicates
when the air cleaner needs service. If the clear portion
of the indicator is red, the air cleaner should be
checked for a clogged filter element.
Fuse and Relay Access Compartment: This compart-
ment is located under the load chart panel. Remove the
four screws to gain access to the fuses and relays.
Engine Oil
Dipstick
Backup Alarm
Hydraulic
Test Ports
Fuse and
Relay Access
Side-View
Mirror
Battery
Compartment
Transmission
Dipstick
Hydraulic Fill
Cap/Dipstick
Air Filter
Restriction
Indicator

Gehl RS6-34 Specifications

General

Engine Power	74 hp
Maximum Lift Capacity	6614 lbs
Max Forward Reach	22 ft
Rated Capacity	6, 000 lbs
Max Reach at Ground Level	22 ft
Hydraulic System Flow	26.4 gpm
