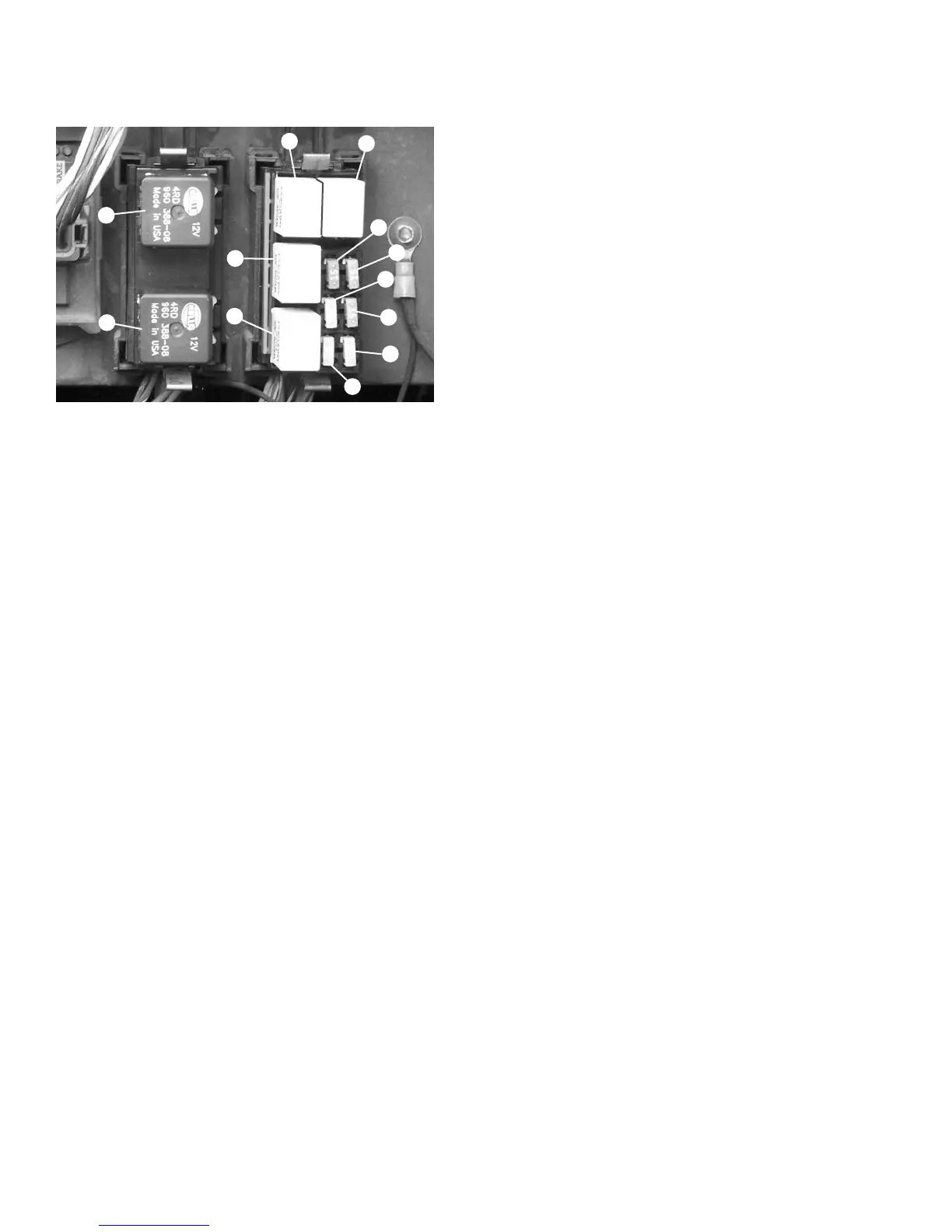

Fuses and Relays Functions: Refer to the illustration
and following description for the fuse and relay func-
tions.
FUSES:
1. 15 AMP fuse: Ignition Switch, Horn, Brake Lights,
and Backup Alarm.
2. 15 AMP fuse: Transmission, Park Brake, PWP,
Steer Select, and Injector Pump.
3. 15 AMP fuse: Lights, Ether, and Clutch Cutout.
4. 25 AMP fuse: Heater and Gauges.
5. 25 AMP fuse: Top Wiper Motor.
6. 25 AMP fuse: Front Wiper Motor.
RELAYS:
A. 20 AMP change-over relay: Ignition.
B. 20 AMP change-over relay: Park Brake.
C. 20 AMP relay: Front Wiper.
D. 20 AMP relay: Bulb Check.
E. 20 AMP relay: Lights.
F. 20 AMP relay: Top Wiper.
ATTACHMENT TOOLS
Gehl Company offers a range of attachment tools to
meet various lifting and material-handling applica-
tions. Contact your Gehl dealer for specifications and
ordering information.
ACCESSORIES
Gehl also offers a range of special accessories for this
machine. Contact your Gehl dealer for specifications
and ordering information.
NOTE: All accessories are field-installed unless
otherwise noted. Information and parts for
installing accessories are provided by your Gehl
Telescopic Handler dealer or Gehl Company.
2
E
F
3
5
1
D
C
A
B
6
4

Gehl RS6-34 Specifications

General

Engine Power	74 hp
Maximum Lift Capacity	6614 lbs
Max Forward Reach	22 ft
Rated Capacity	6, 000 lbs
Max Reach at Ground Level	22 ft
Hydraulic System Flow	26.4 gpm
