Speed Control Knobs: The tri-function joystick incor-
porates a manually adjusted speed control. Speed
adjustment is accomplished through the manual adjust-
ment of pilot-pressure apply valves located next to the
main valve at the rear of the machine.
If the machine is equipped with auxiliary hydraulics,
there will be two pilot-pressure apply valves, each hav-
ing two speed-control knobs. The top pilot valve con-
trols the auxiliary hydraulics, and the lower pilot valve
controls the attachment tilt function. On the attachment
tilt pilot valve, the left knob controls the attachment
tilt-back speed, and the right knob controls the attach-
ment tilt-forward speed. On the auxiliary hydraulic
pilot valve, the function of the knobs will depend on
the type of attachment requiring auxiliary hydraulics.
Turning a knob clockwise will increase the speed of its
associated function. Turning a knob counter-clockwise
will decrease the speed of its associated function.
NOTE: There is a locking knob located forward of
the adjusting knob, which must be loosened
before the adjusting knob can be turned. After
adjustment has been made, tighten the locking
knob to maintain the selected speed.
Frame Level Control: This control is located to the
rear of the tri-function joystick. The machine may be
tilted slowly
as much as 10° to the left or right to level
the frame and boom in relation to the ground.
FUNCTION INDICATORS
Frame Angle Indicator: Located in front of the oper-
ator on the ROPS upper cross tube, the position of the
ball indicates when the frame is level relative to a slop-
ing ground surface.
Boom Angle Indicator: Mounted on the left side of
the outer boom, the movement of a ball indicates the
angle of boom elevation relative to the ground.
SERVICE AND SAFETY FEATURES
Coolant Level: The radiator cap is located under the
opening toward the rear of the main hood section.

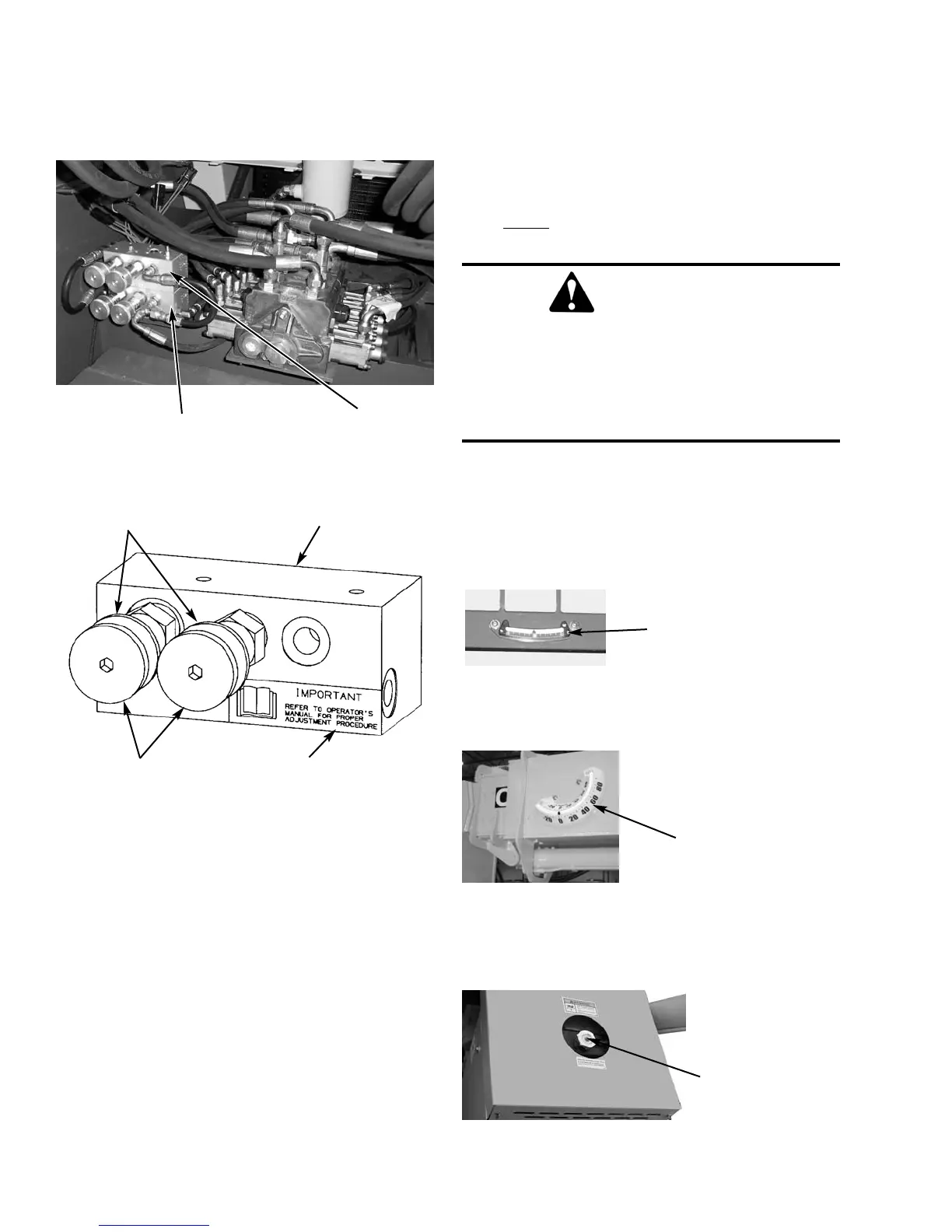

Boom Angle
Indicator
Frame Angle
Indicator
Auxiliary Hydraulics
Pilot-Pressure Apply
Valve
Attachment Tilt Pilot-
Pressure Apply Valve
Pilot-Pressure
Apply Valve
Speed Control
Knobs
Locking
Knobs
L71378
Decal
WARNING
DO NOT level the frame with the boom raised
or extended. Level the frame ONLY while
stopped, with the boom fully retracted and the
attachment raised just enough to clear the
ground.
Radiator Cap
