Gehl RS6-34 Operator's Manual

PRINTED IN U.S.A. 25 913323/CP0112
B - Cold Starting: This switch activates the injection
of ether starting fluid, used for engine starting in cold
weather.
C - Strobe Light: When a stobe light is installed on the
machine, activating this switch will produce a strobe
light on and off flashing, for working in conditions that
may obscure view of the machine.

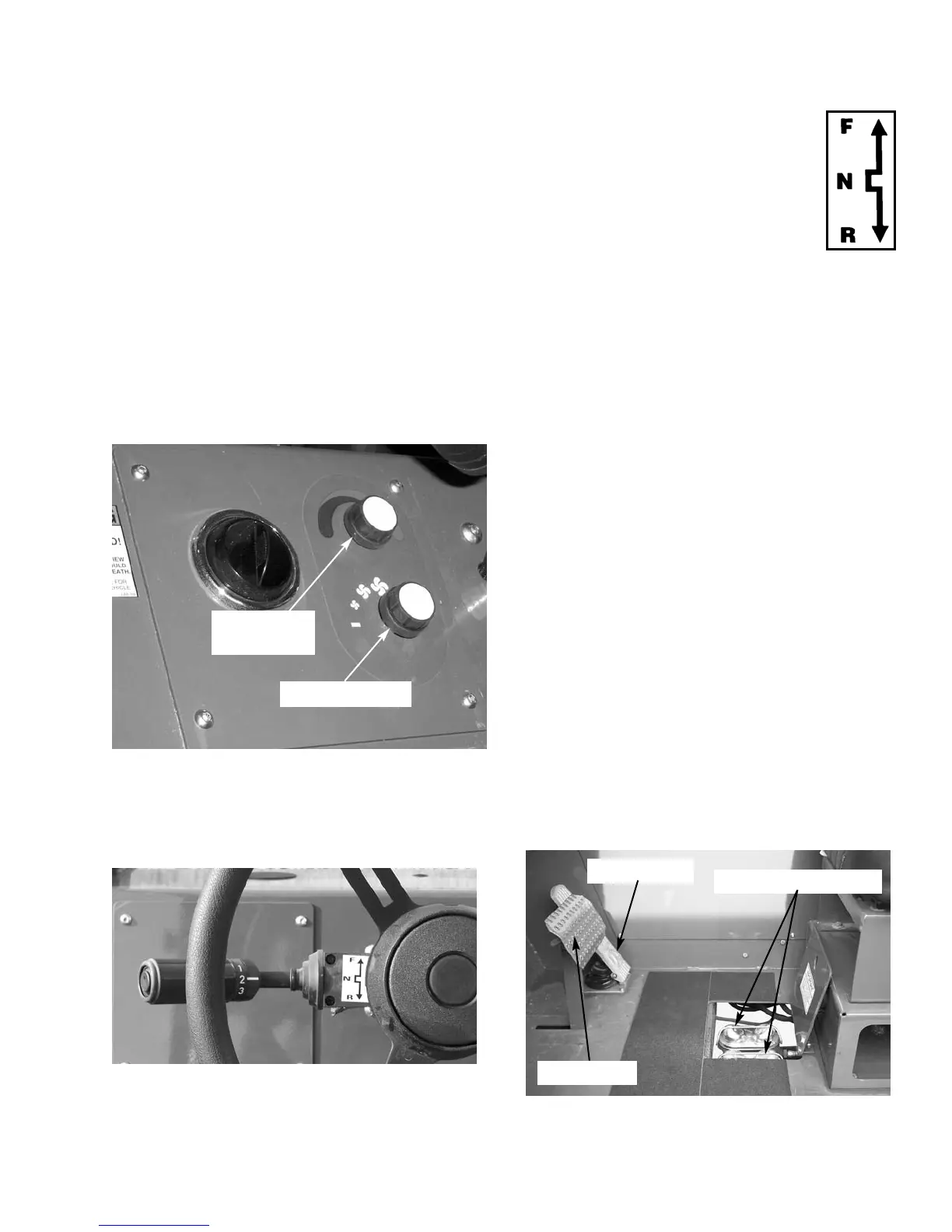

Heater Controls
Temperature Control: This is the upper knob located
to the left of the steering wheel. This knob is used to
adjust the temperature output of the heater. Turning the
knob clockwise will increase the temperature output of
the cab heater.
Fan Speed: This knob is located below the tempera-
ture control knob. Rotating the knob clockwise will
increase the fan speed for increased air circulation.
Travel Lever
Located on the left side of the steering wheel column,
this lever is used to change travel direction (forward or
reverse) and speed.
Travel Direction: The lever MUST be in “N”
(Neutral) position before the starter will engage to start
the engine.
NOTE: Backup alarm automatically sounds with
travel lever in “R” (Reverse).
Position “F” (Forward)
Position “N” (Neutral)
Position “R” (Reverse)
Speed Range: Twisting the lever end clockwise or
counter-clockwise will change the transmission speed
between low, medium and travel ranges.
Position “3” (Travel Range)
Position “2” (Medium Range)
Position “1” (Low Range)
IMPORTANT: Care should be taken when down-
shifting or changing direction, because damage to
the transmission can occur if shifting is forced or
attempted at too high a speed. Allow engine
speed to slow before any downshift or directional
change is attempted.
Steering
Turn the steering wheel to the right or left to turn the
machine in that direction.The power steering system is
designed to provide low-effort steering without shock
reaction from the tires to the steering wheel.
FLOOR AND SEAT AREA
Throttle Pedal: This pedal, operated by the right foot,
controls the engine speed to match power require-
ments. Pushing down on the pedal increases engine
speed; letting up on the pedal decreases engine speed.
Fan Speed Knob
Temperature
Control Knob
Throttle Pedal
Brake Pedal
Brake Fluid Reservoirs

Gehl RS6-34 Specifications

General

Engine Power	74 hp
Maximum Lift Capacity	6614 lbs
Max Forward Reach	22 ft
Rated Capacity	6, 000 lbs
Max Reach at Ground Level	22 ft
Hydraulic System Flow	26.4 gpm
