Generac Power Systems E - Generac Alternator Schematic Diagram (0 A5501)

Generac
®
Power Systems, Inc. 51
Section 5 — Electrical Data

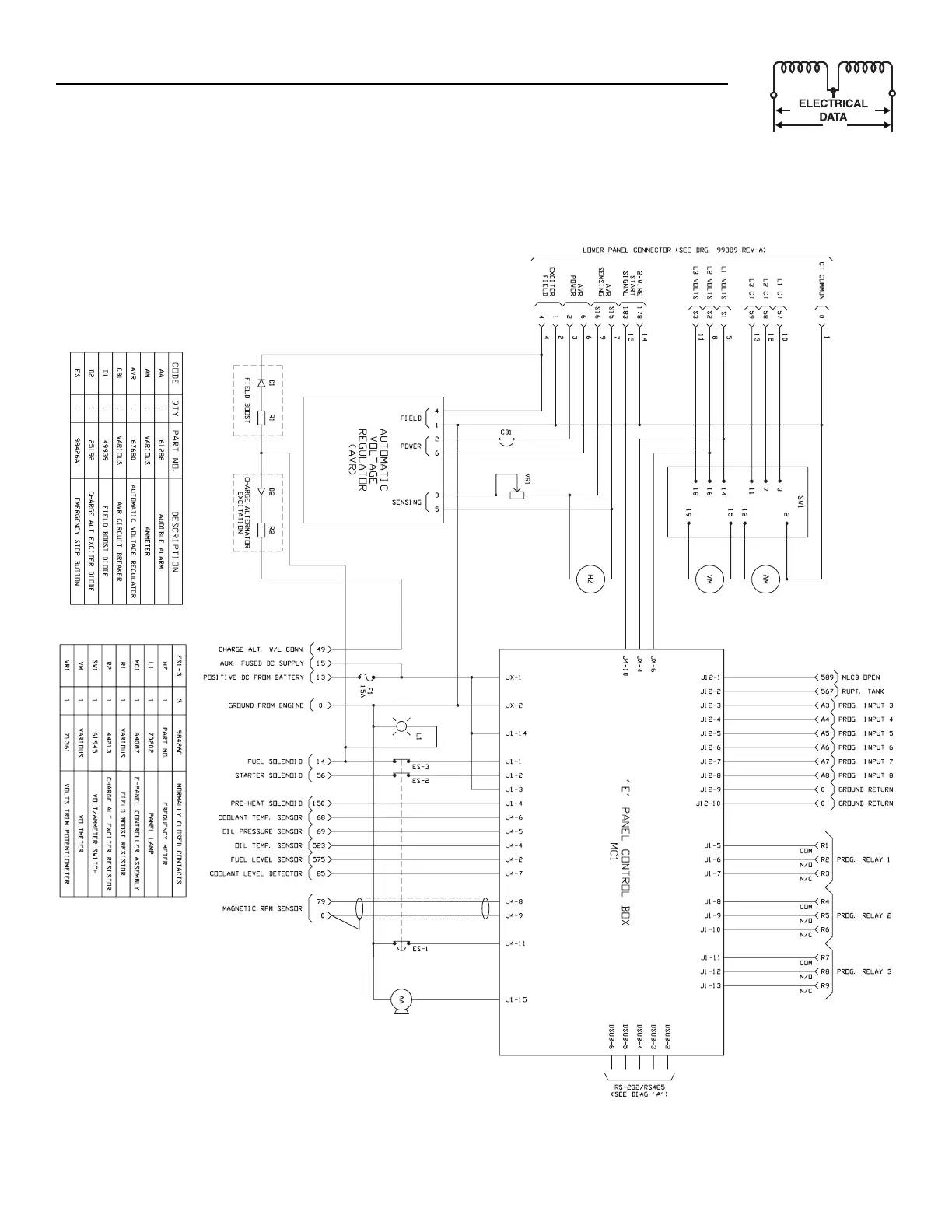

Schematic Diagram (For Use With Generac Alternator) – Drawing No. 0A5501
For units manufactured prior to the 2nd quarter of 2000.
Standard diagram. Please refer to the Owner’s Manual of the unit for specific details.
