Eccentric Point
Sometimes it is difficult to locate the prism at the point to be
measured. This can be solved by considering the point as an
eccentric point. Locate the prism at a known distance from
the eccentric point, see fig. 5.2 on next page. Works in STD,
FSTD (not TRK or D-bar). Available in P0-P19.

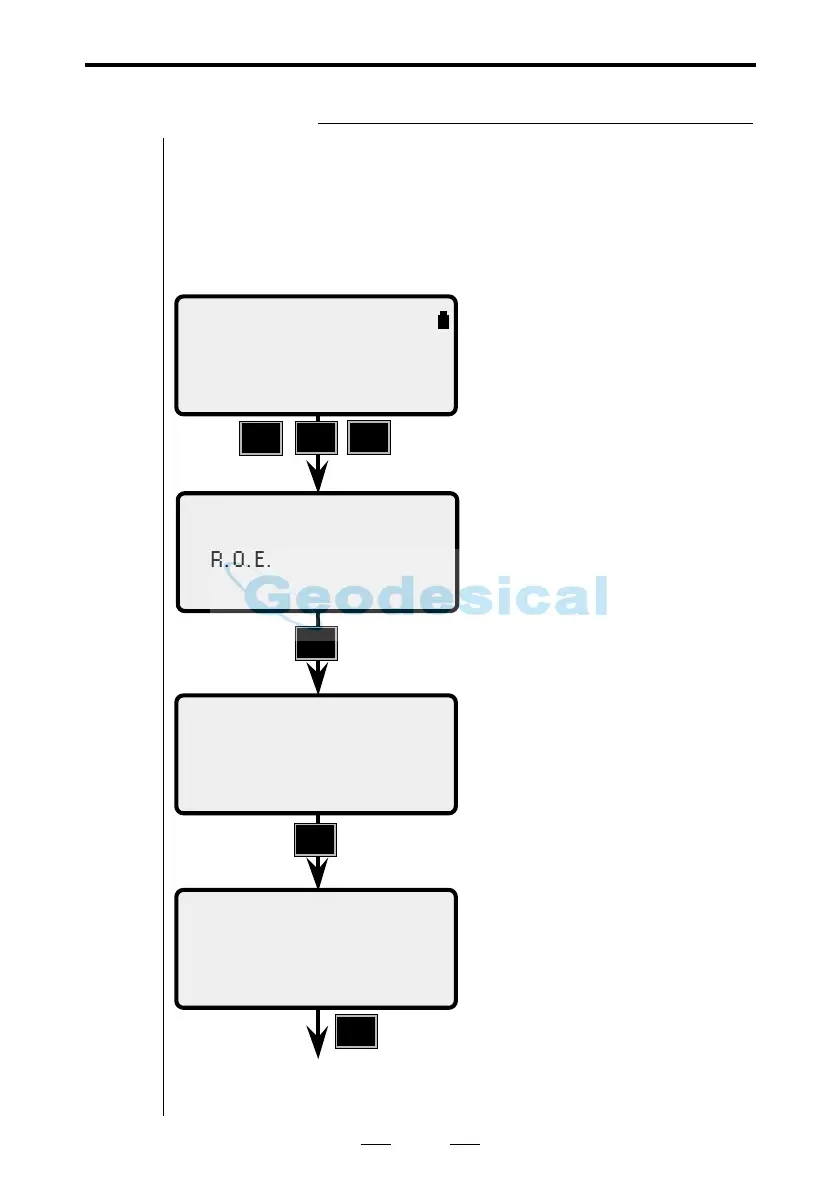

Choose menu 12, Preset.
Choose 1 Eccentric pt.
Enter the radial offset and press
ENT.
Enter the right angle offset and
press ENT.
Preset 16:13
1 Eccentric pt.
2 R.O.E.
STD P0 16:13 Am
HA: 21.4108
VA: 93.0732
SD: 105.213
Eccentric 16:13
Radofs=0.47
Eccentric 16:13
RT.ofs=0.795
Note !
☛
Radofs can
also be
entered by
pressing the
function key
and 70.
Note !
☛
RT.ofs can
also be
entered by
pressing the
function key
and 71.
See next page
