POWER SUPPLY CHAPTER 8 GEODIMETER SYSTEM 600
The internal NiMH 12V, 1.6 Ah
battery unit (Part No. 571 202
460) or NiCd 12V, 1.2 Ah
battery (Part No. 571 200 320)
slides into the underside of the
measuring unit.
These are the standard batteries
for the measuring unit.
Internal Battery unit (Central unit)
Batteries

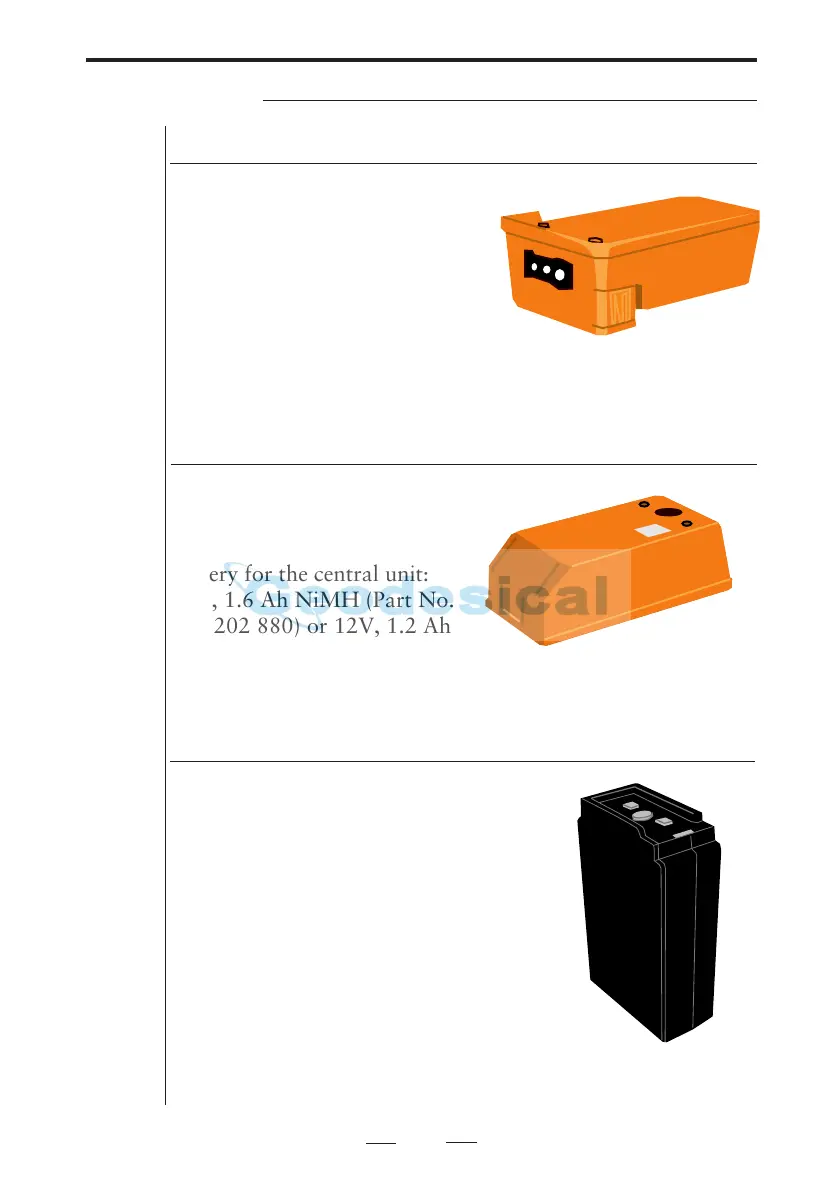

Fig 8.1 Battery unit, 12V,
for central unit
The internal battery unit for
the battery side cover is of the
same type as the internal
battery for the central unit:
12V, 1.6 Ah NiMH (Part No.
571 202 880) or 12V, 1.2 Ah
NiCd (Part No. 571 202 150).
Internal Battery unit (Battery side cover)
Fig 8.2 Battery unit, 12V,
for side cover
External Battery/Radio Battery
The external NiMH 12 V, 3.5 Ah
battery (Part No. 571 204 270), which
is also common to other Spectra Preci-
sion products, is connected to the instru-
ment via the Single Adapter (Part No.
571 204 256) or Multi Adapter (Part
No. 571 204 273) described below and
a standard Hirose cable. The battery
also fits directly on the External Radio.
Fig 8.3 External Battery/
Radio Battery, 12V, 3.5 Ah
