1.3.2
STATION ESTABLISHMENT CHAPTER 3
GEODIMETER SYSTEM 600
Start Procedure
The start procedure for Geodimeter instruments can be
divided into two different parts:
Measurement settings which can be decided and executed in
advance. These settings have already been dealt with in
chapter 1.2 "Pre-Measurement", section "Pre Settings".
In this section, we will deal with calibration of the dual-axis
compensator, setting of PPM, offset, HAref and station data
(coord).
Mount the instrument on the tripod in the normal manner at
a convenient working height.
Slide the internal battery along the housing of the tracklight
(see fig. 3.1) or attach the external battery on the tripod and
connect the battery cable (see fig. 3.2).
Note !
It is assumed that the operator is familiar with optical
theodolites. Setting up, centering with the optical plummet
and levelling with the plate level are not described.
Field Setup
Note!
☛
Setting
up

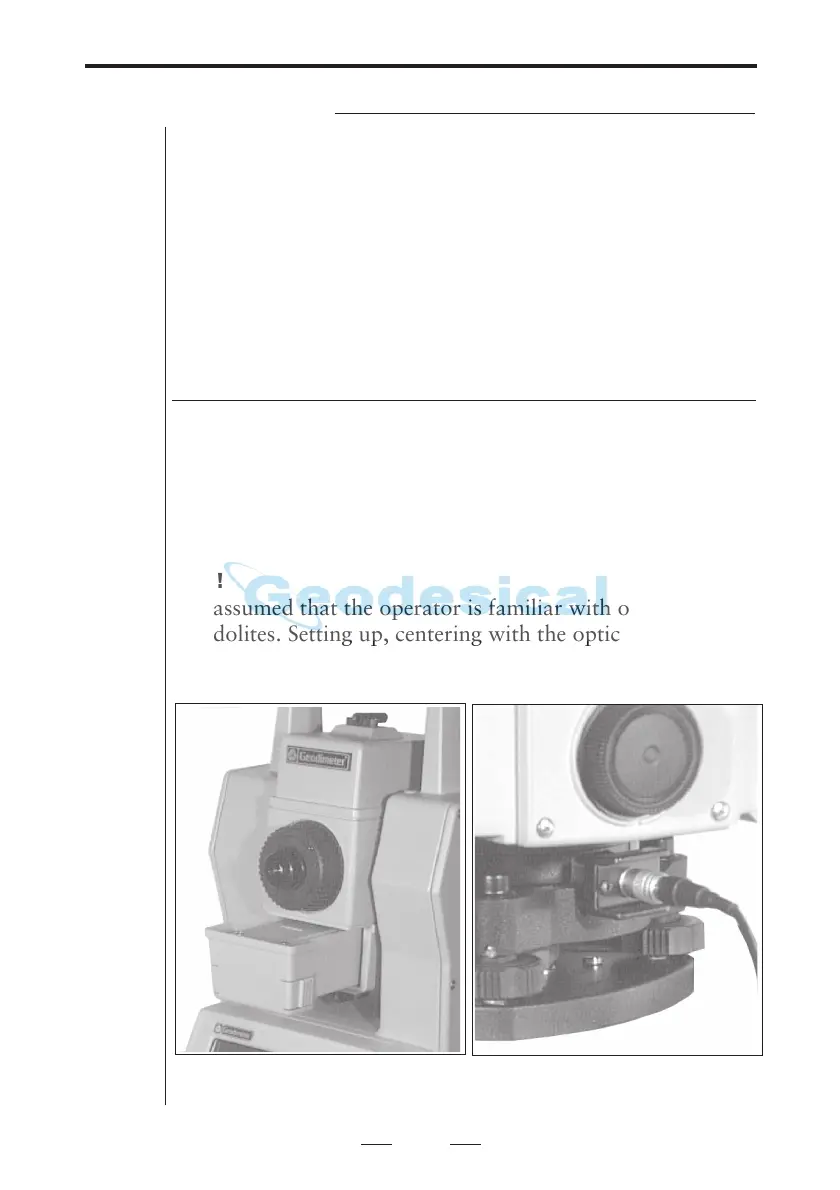

Fig. 3.1 Fitting the internal
battery
Fig. 3.2 Connecting the external
battery
