Geodimeter 600 - Page 208

2.1.2
ANGLE MEASUREMENT SYSTEM CHAPTER 1
GEODIMETER SYSTEM 600

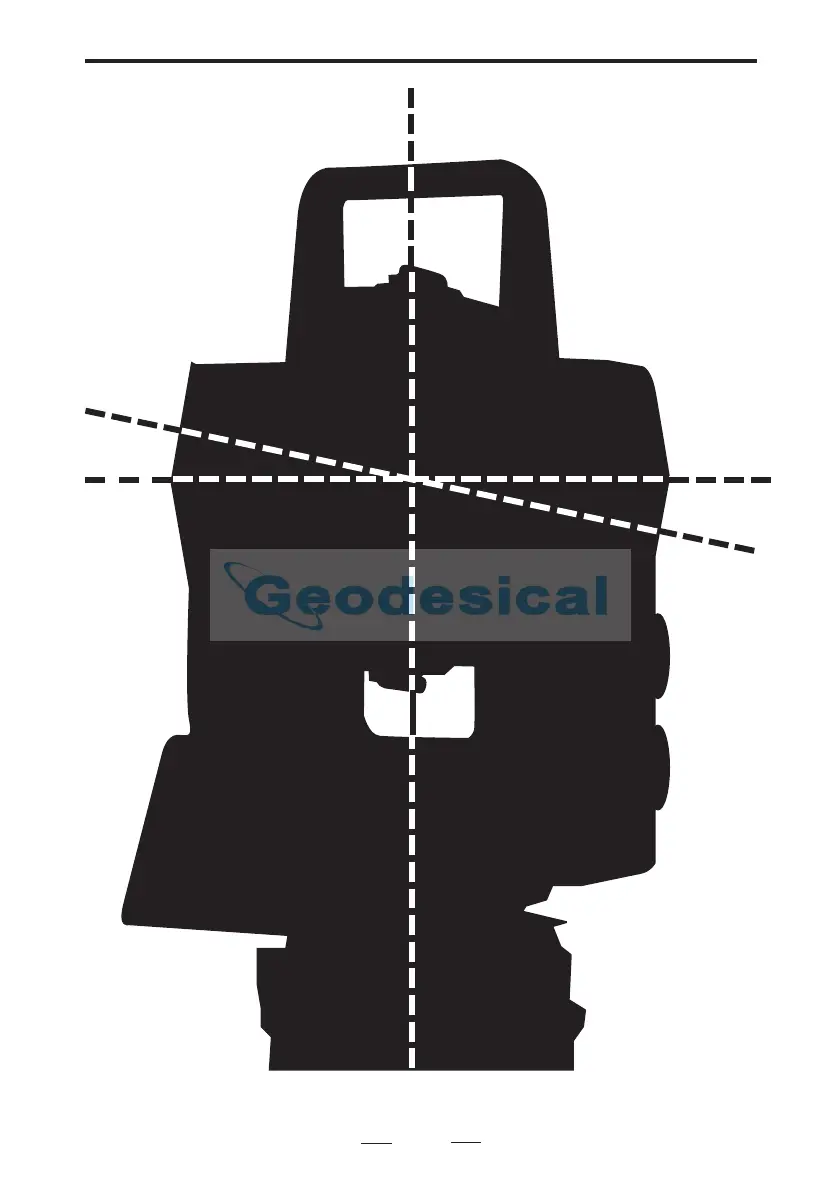

Fig 1.1 The Angle Measurement System
Automatic
correction
for
trunnion
axis tilt
Automatic
correction for
deviation in
relation to the
plumb axis
Automatic correction
for deviation in relation
to the plumb axis
Automatic
correction
for collima-
tion error
Automatic
correction
for collima-
tion error
Automatic
correction
for
trunnion
axis tilt
