Zoom | 110Applications

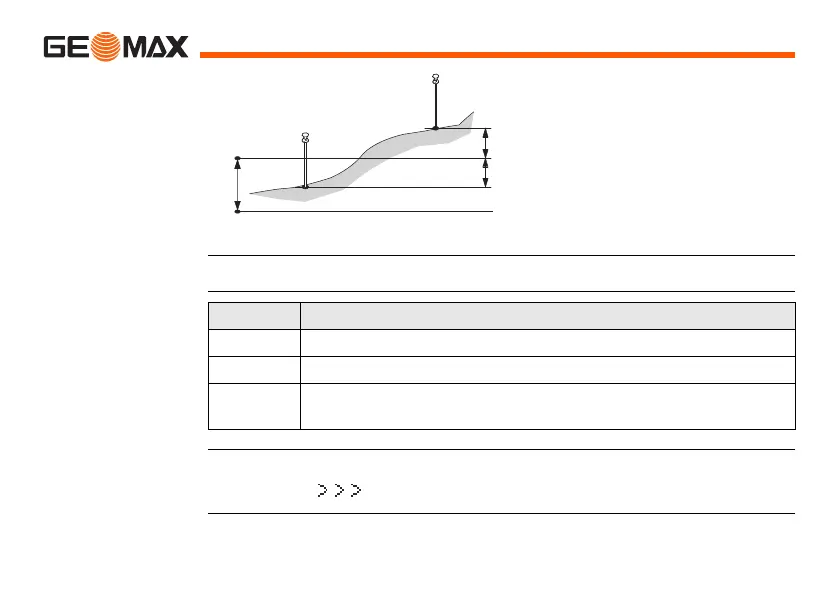

Example of
height difference
relative to first
reference point
Access Press MEAS in the REFERENCE LINE screen.
Measure
Next step • Either, press ALL to measure and record.
• Or, press BACK to return to the REFERENCE LINE screen.
1RP 1st reference point
1BP 1st base point
RH Reference height
Hd Height difference between refer-
ence and base point
d Z Height difference from reference
height
1BP
1RP
RH
Hd+
d Z+
d Z-
Field Description
d Line Calculated distance longitudinal to the reference line.
d Offset Calculated distance perpendicular from the reference line.
d.d.Z Calculated height difference relative to the defined reference
height.
