GeoMax Zoom 20 series User Manual

Zoom | 120Applications
9.4.4 Subapplication Setout
Description The setout subapplication calculates the difference between a measured point
and the calculated point. The reference arc application supports four ways to
set out:

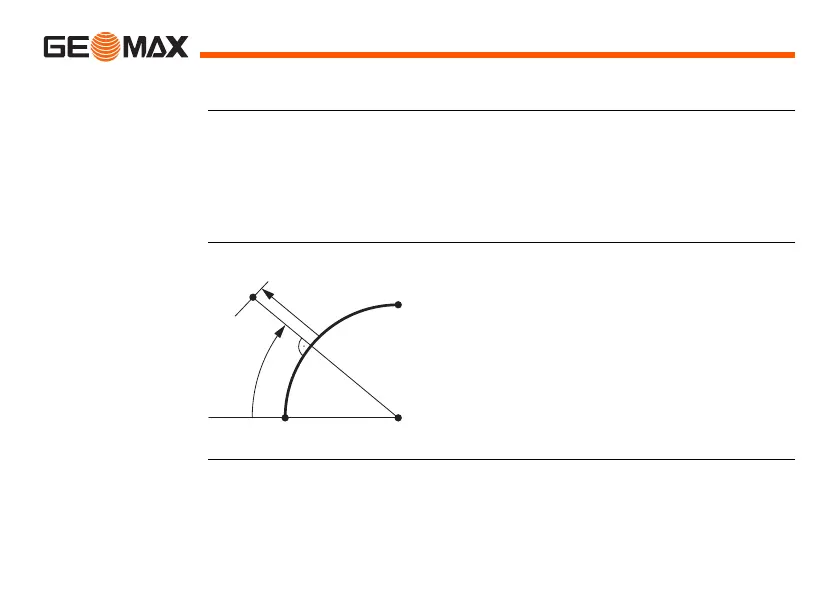

Set out point To set out a point by entering a line and an offset value.
• Set out point • Set out chord
• Set out arc • Set out angle
CP Center point of arc
SP Start point of arc
EP End point of arc
PSet out point
R Radius of arc
L Line offset
Off Perpendicular offset
CP
SP
R
L+
Off -
EP
P
