GeoMax Zoom 20 series User Manual

Applications Zoom | 111
9.3.5 Subapplication Setout
Description The setout subapplication calculates the difference between a measured point
and the calculated point. The orthogonal (dLine, dOffset, d.d.Z) and polar
(dHA, d.hDIST, d.d.Z) differences are displayed.

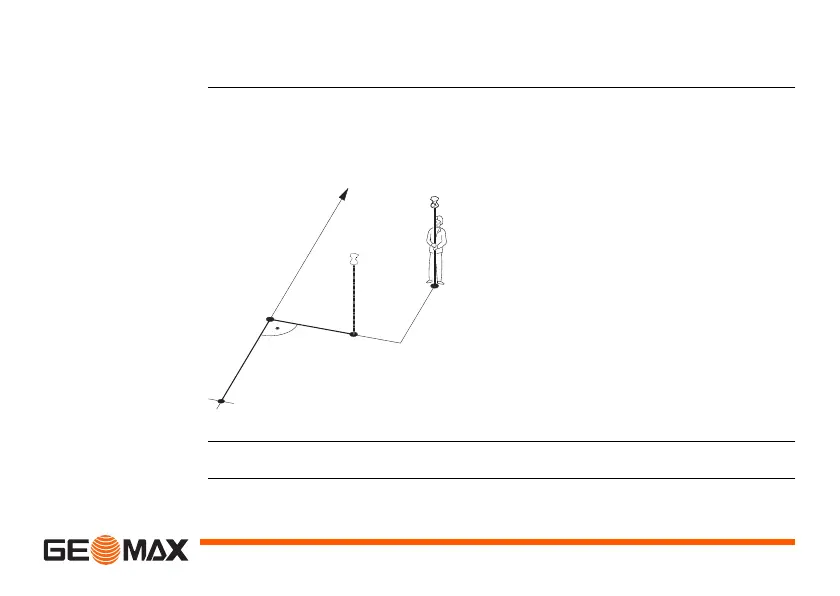

Example orthogonal setout
Access Press SETOUT from the REFERENCE LINE screen.
1RP 1st reference point
SP Set out point
MP Measured point
RL Reference line
dL Longitudinal offset
dO Parallel offset
1RP
RL
SP
MP
d L-
d O-
