Applications Zoom | 159
LAY-OUT The graphics are scaled to give a better overview. Therefore it is possible that
the set out point moves in the graphic.
Next step
• Either, press AsBLT to check point locations relative to a contruction line.
• Or, press Shift to enter offset values for shifting the construction
line.
AsBLT
To switch to AsBuilt mode to check
points relative to the construction
line.
Shift
To enter values for shifting the
line.

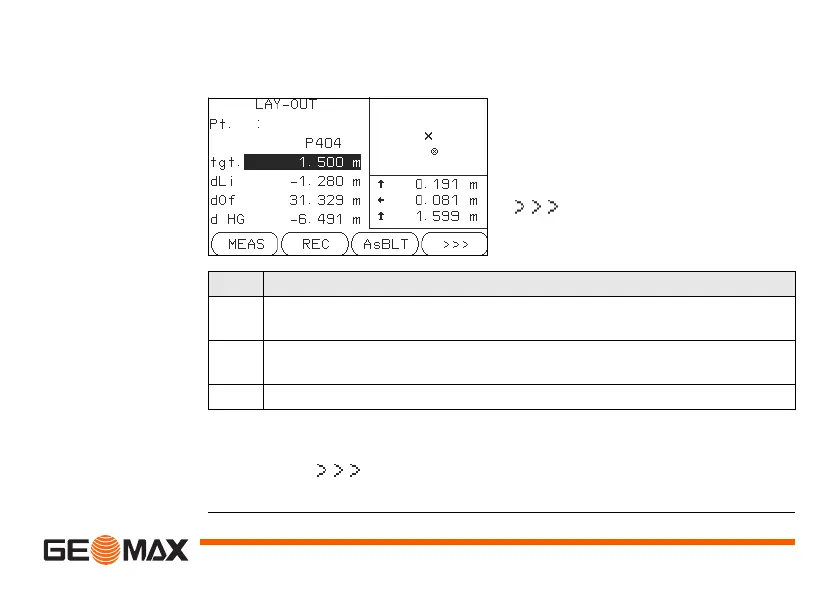

Field Description
dLi
Longitudinal offset: Positive if target point is further away than the
measured point.
dOf
Perpendicular offset: Positive if target point is to the right of the meas-
ured point.
d HG
Height offset: Positive if target point is higher than the measured point.
