Operating Manual
OMGEM5KN Iss. 5.1
Copyright Geotechnical Instruments (UK) Ltd
GEM5000
Any mistakes can be corrected using the soft-key ‘Delete’ which will delete the last digit typed. Alternatively, the
sequence can be retyped before the ‘Enter’ key is pressed and the existing numbers will be pushed off the
screen.
Note: The instrument will not allow invalid data to be entered; this should be deleted and re-entered.
Instrument main gas read screen
The ‘Main Gas Read Screen’ is considered to be the normal operating screen and all operations are carried out
from this starting point.
The actual data shown on this display will depend on the version of the instrument and the options that have
been selected. In general, all of the main readings will be shown.

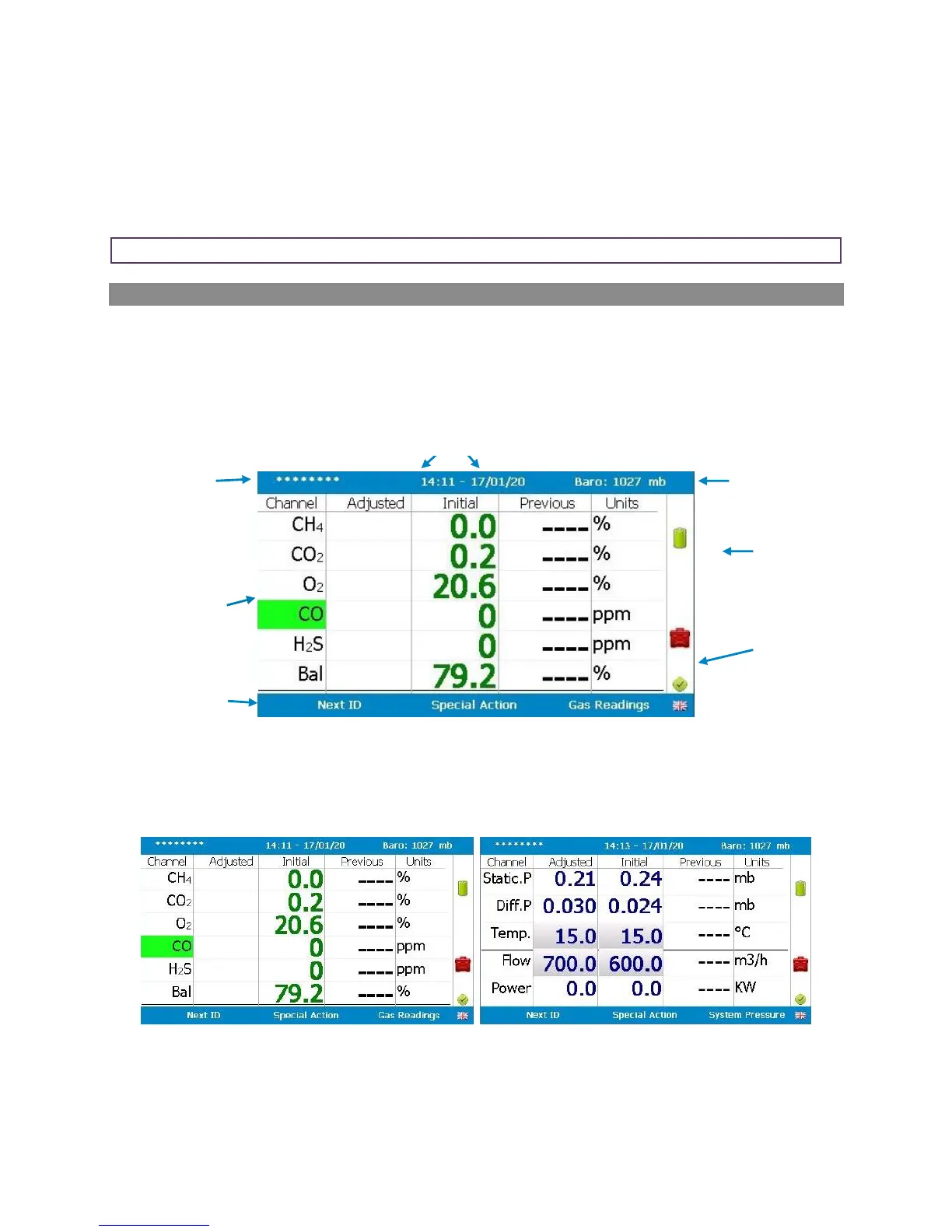

Main Gas Read Screen
You can also press key 2 and access a zoomed version of the main read screen, once you have entered this
mode, simply use keys 4 and 6 to switch between the gases and pressures. Examples of both screens can be
seen below:
Zoomed version
Baro
Battery
indicator
Borehole
ID
Green figure =
live reading
Blue figure = fixed
reading
Self test
has
passed
Soft key options
Time and date stamp
