Operating Manual
OMGEM5KN Iss. 5.1
Copyright Geotechnical Instruments (UK) Ltd
GEM5000
3) Select soft-key ‘Exit’ to exit this screen and return to the ‘User Settings’ menu.
ID selection

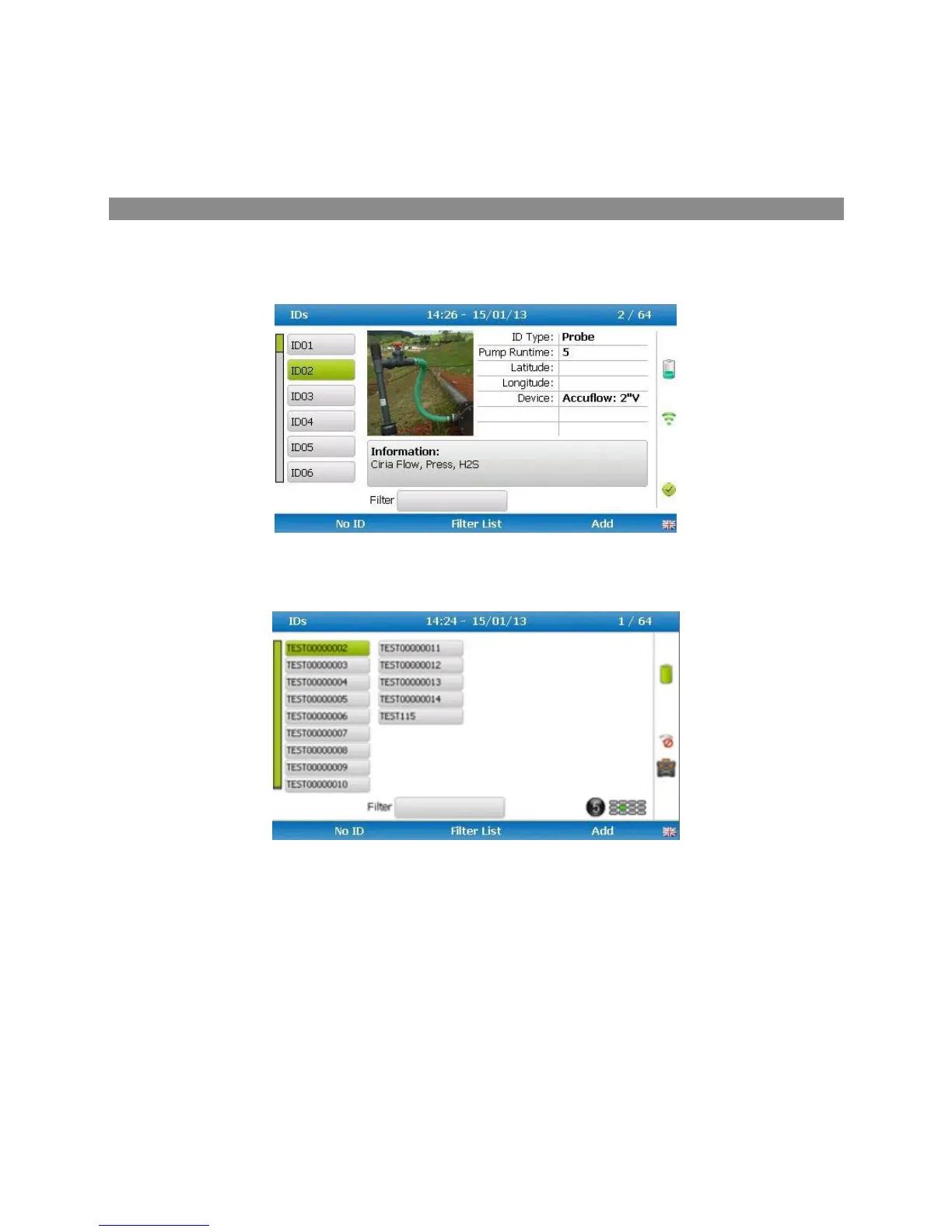

The ID selection screen allows the operator to scroll through all IDs, including those uploaded from GAM and
added directly onto the instrument, and then make a selection. Detailed information regarding the currently
selected ID, such as flow device type and pump runtime, are displayed below:-
By selecting ‘Key 5’ the operator can toggle between showing 30 IDs and showing 5 IDs with more detailed
information relating to the chosen ID.
The technician can scroll between the IDs using the following keys on the instrument keypad:
Two (2) and eight (8) move the selection up/down
Four (4) and six (6) move the selection left/right on the list view
One (1) and three (3) move the selection left/right a page in the list view only
Seven (7) and nine (9) move the selection to first/last ID
Five (5) toggles between the 'ID with information' and 'ID list'
Return/enter key selects the desired ID and proceeds to the navigation or reading screen.
