Operating Manual
OMGEM5KN Iss. 5.1
Copyright Geotechnical Instruments (UK) Ltd
GEM5000

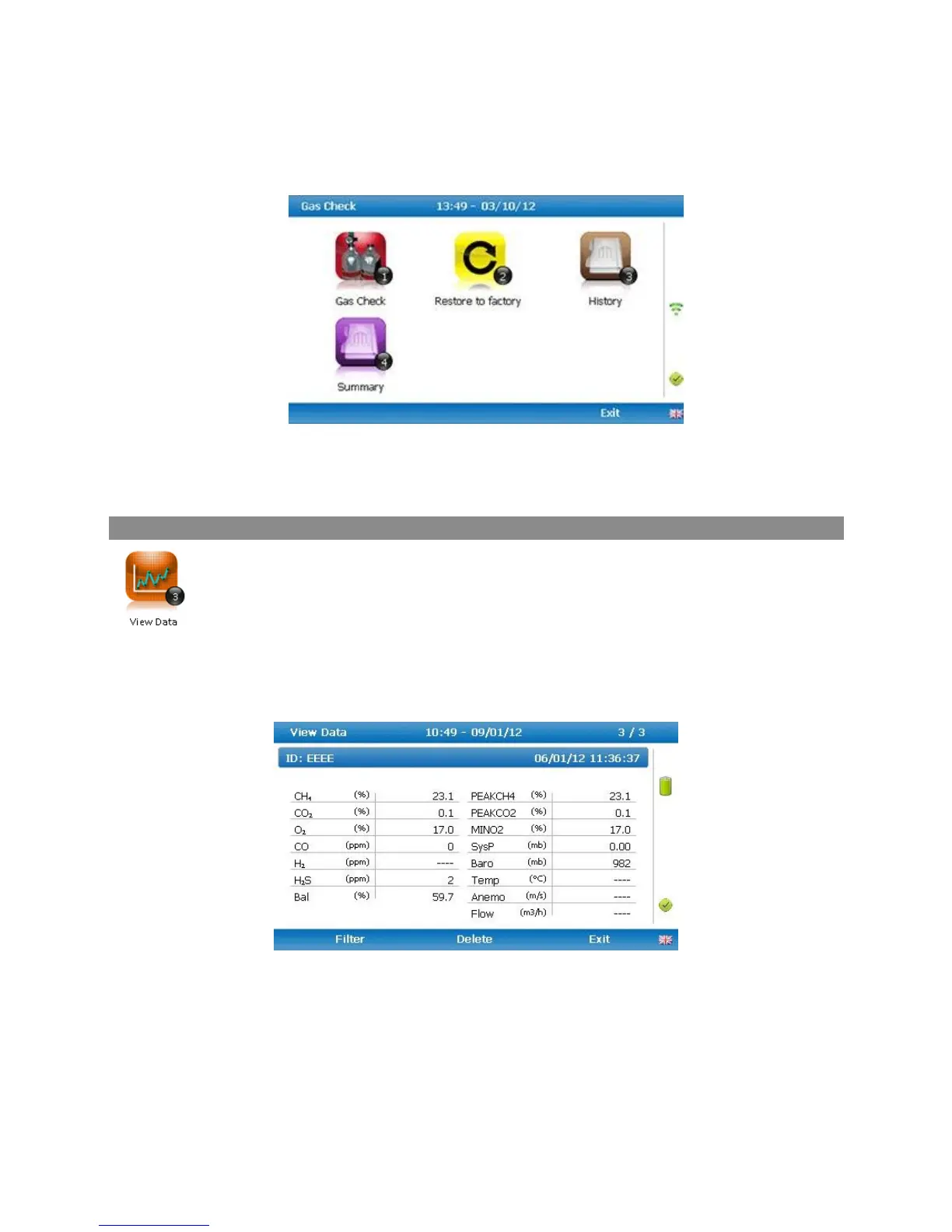

2) Select ‘Key 2 – Gas Check’ and the following menu is displayed:
Gas check
3) For more information about the Gas Check Menu please refer to section 9.0 Calibration.
4) Select soft-key ‘Exit’ to exit operation settings and return to the main screen.
View data
This option enables the operator to view the readings collected and stored on the instrument.
Readings many be downloaded to the optional Gas Analyser Manager (GAM) software if further
analysis is required.
1) Select the ‘Menu’ button on the front of the analyser to display the ‘Device Settings’ menu. Press
the soft-key to display ‘Operation Settings’.
2) Select ‘Key 3 – View Data and the following screen is displayed:
View data
3) Toggle through the reading by selecting ‘Key 4 – Scroll left’ and ‘Key 6 – Scroll right’ on the analyser.
Select ‘Key 2 – Page up’ and ‘Key 8 – Page down’ to page through the auxiliary channels listed.
