216

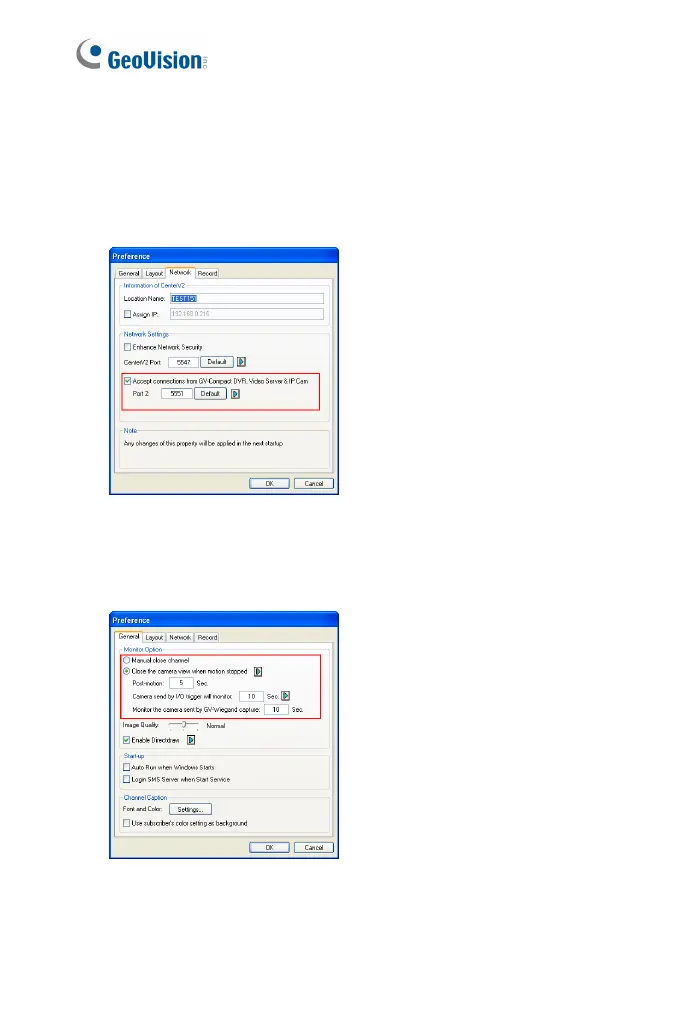

• To set the appropriate port for IP camera connection, click the
Preference Settings button, select System Configure, click the
Network tab, and select Accept connections from GV-Compact
DVR, Video Server & IP Cam. Keep default port 5551, or modify it to
match the Center V2 port on the IP camera.
Figure 8-2
• To define how to display the received video on motion detection and
input trigger from the IP camera, click the Preference Settings button
and select System Configure. This dialog box appears.
Figure 8-3
To Next Page
