Administrator Mode
139
4 4
4.8.2 Wireless Client Mode
Note this function is only supported in GV-BX1200 Series / 1500 Series /
2400 Series / 2500 Series / 2700 Series / 3400 Series / 4700 Series /
5300 / 5700 Series, GV-CAW120 / 220, GV-FER5700 and GV-MFD1501
Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series and when
GV-WiFi Adapter is installed. Set up the client mode before enabling the
wireless function.

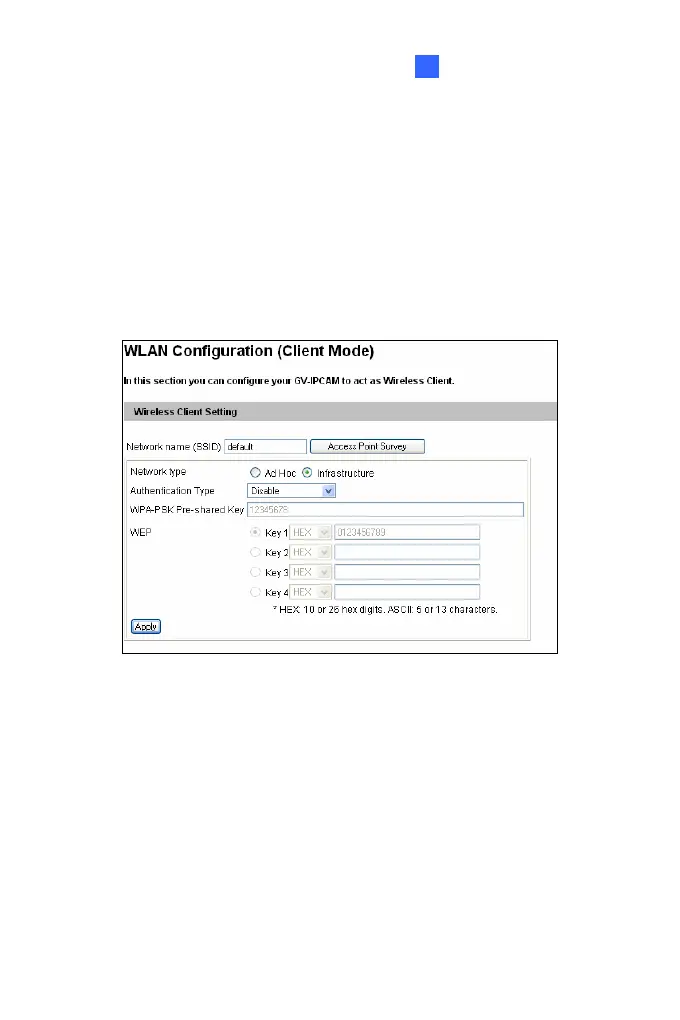

Figure 4-39
Network type: Select the network mode Ad Hoc or Infrastructure.
Infrastructure: Connect to the Internet via the Access Point. This
mode further gives wireless access to the Internet or data sharing
under a previously wired environment.
Ad-Hoc: A Peer-to-Peer mode. This mode connects to other
computer with the WLAN card, and does not need the Access
Point to connect to each other.
To Next Page
