Gesipa TAURUS 3 C - 7 Tools Description

45
GB
MEGA-GRIP
®
Ø (mm) Rivet material Nosepiece Part No.
4.8 Al/Al, steel/steel, stainless steel 17/31 MG* 725 2250
6.4 Al/Al, steel/steel, stainless steel 17/41 MG* 724 3146
* available as optional accessory.
Extended version of nosepiece and other special versions are available on request.
7. Tool’s description
In addition to the standard tool, the processing monitoring TAURUS
®
Cisequippedwithasensor-mo-
dule to record the pulling force and the pulling stroke during the riveting operation. Furthermore, the tool
may be equipped with a pressure trigger which releases the start of the setting process only if the blind
rivet is properly inserted into the application and a specific preload has been applied to the nosepiece.
A process data module is integrated in the base of the tool housing which analyses and evaluates the
recordedprocessdata.TheprocessanalysisisvisualizedonthetoolbymeansofanLEDintegratedinto
thehousing.Thesensoricsystemusedinthetoolandtheprocessdatamodulearemaintenance-free.

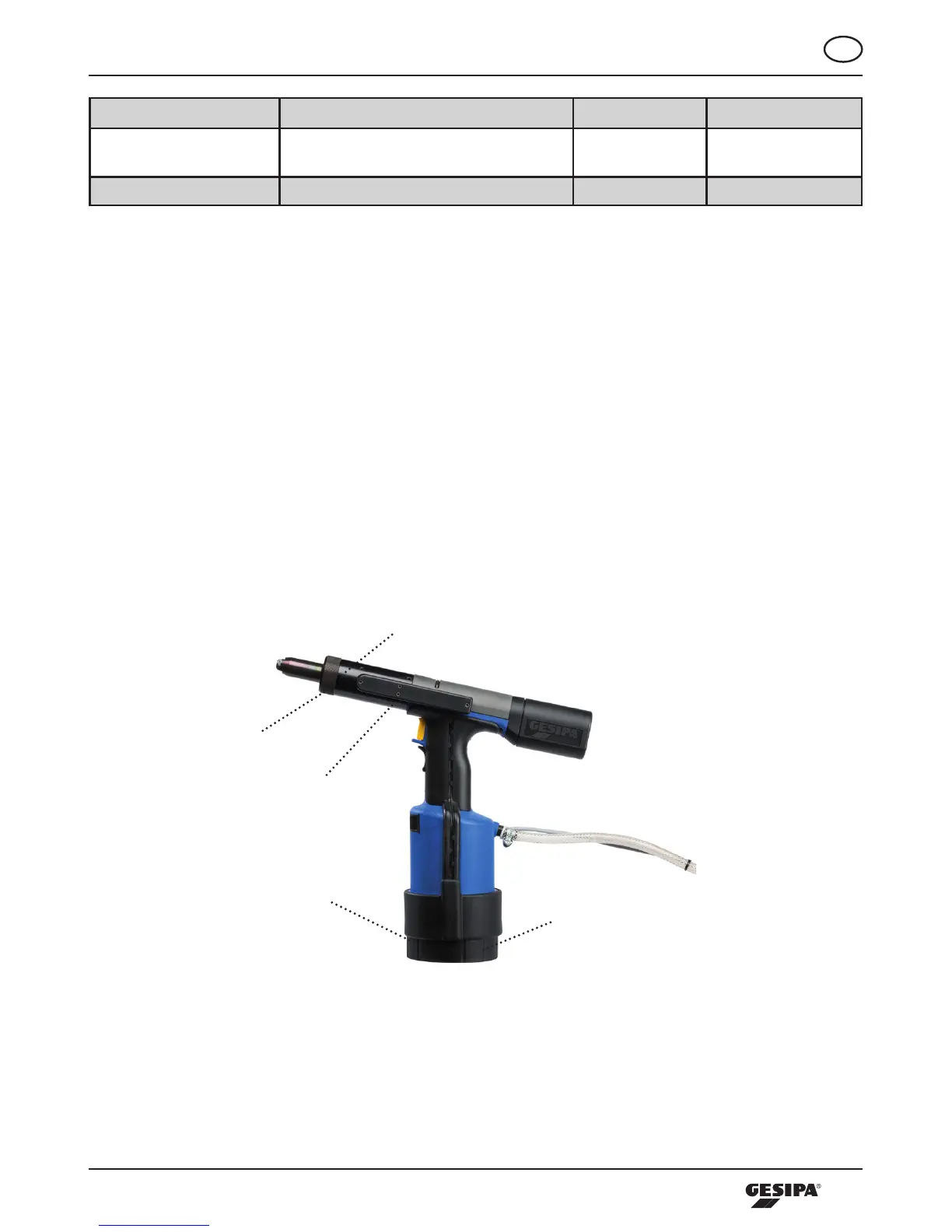

Illustration 1 shows a general view of the Taurus with setting process monitoring.
Pressure trigger (optional)
Sensor-module
limit sensor
Processdara-module
Visualization of
process evaluation
Illustration 1: General view of the Taurus with setting process monitoring
