ECturn/ECturn Inside
27
Mains connection

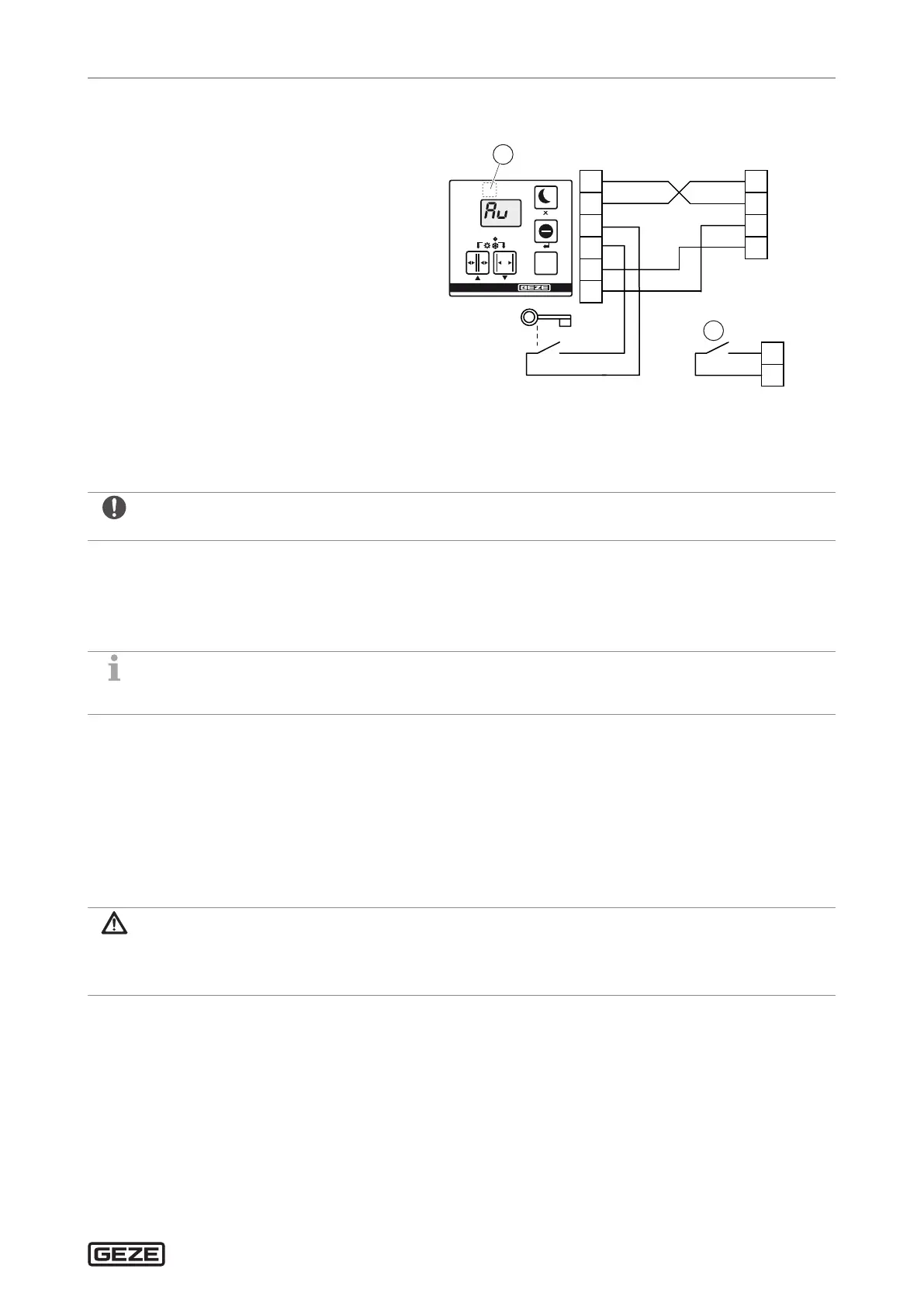

14.4 Display programme switch
à DPS with OFF, AS500, ush-mounted,
mat. no. 151524
à DPS with OFF SCT, AS500, UP, with key
switch, without Euro prole half cylinder,
mat.no.155810
Accessories:
à Euro prole half cylinder, mat. no. 090176
à Additional contact, mat. no. 024467
à Surface-mounting cap, single, AS500,
mat.no.120503
à Surface-mounting cap, double, AS500,
mat.no.128609
X
Heed the installation instructions for DPS.
2
1
1
44
41
42
GND
1
2
24V
42
RS485-A
41
RS485-B
RS485
100 mA
OFF
2
1
20
KB
3
24V
KB
1 Hidden service button
2 Additional contact in the key switch for activation of KB
X
Before connecting the DPS switch the drive operating voltage o.
Otherwise the DPS will not be detected by the control unit.
à The DPS cannot be used together with the MPS with ECturn Inside.
à Modes of operation: OFF, NA, AU, DO
Locking or releasing DPS operation by key switch
Operation of the DPS can be blocked/released by connecting a key switch to prevent the mode of operation being
changed by unauthorised persons. Operation is possible using the key switch.
Permanent release of mode of operation switchover using the display programme switch:
X
Rather than actuating the key switch at the display programme switch, connect a jumper between 1 and 44.
à If operation of the DPS is not possible since the block is active, 2 lines will ash in the display if a button is pressed.
15 Mains connection
Use an on-site automatic cut-out as the line-side disconnecting device, the dimensioning of which is matched to
the type, cross-section, type of routing and ambient conditions of the on-site power supply circuit. The automatic
cut-out must have at least 4A and max. 16A.
15.1 Mains connection ECturn
DANGER
Danger of electric shock!
X
If the connection to the mains voltage is without a Schuko plug, it must be carried out by a qualied electrician.
X
Perform the power connection and equipment earth conductor test in accordance with VDE 0100 Part 600.
