Commissioning and service
20 Commissioning and service
Commissioning and service can be eected either via the display programme switch or the buttons S1 and S2,
see chapter 21, “Parameter menu”.

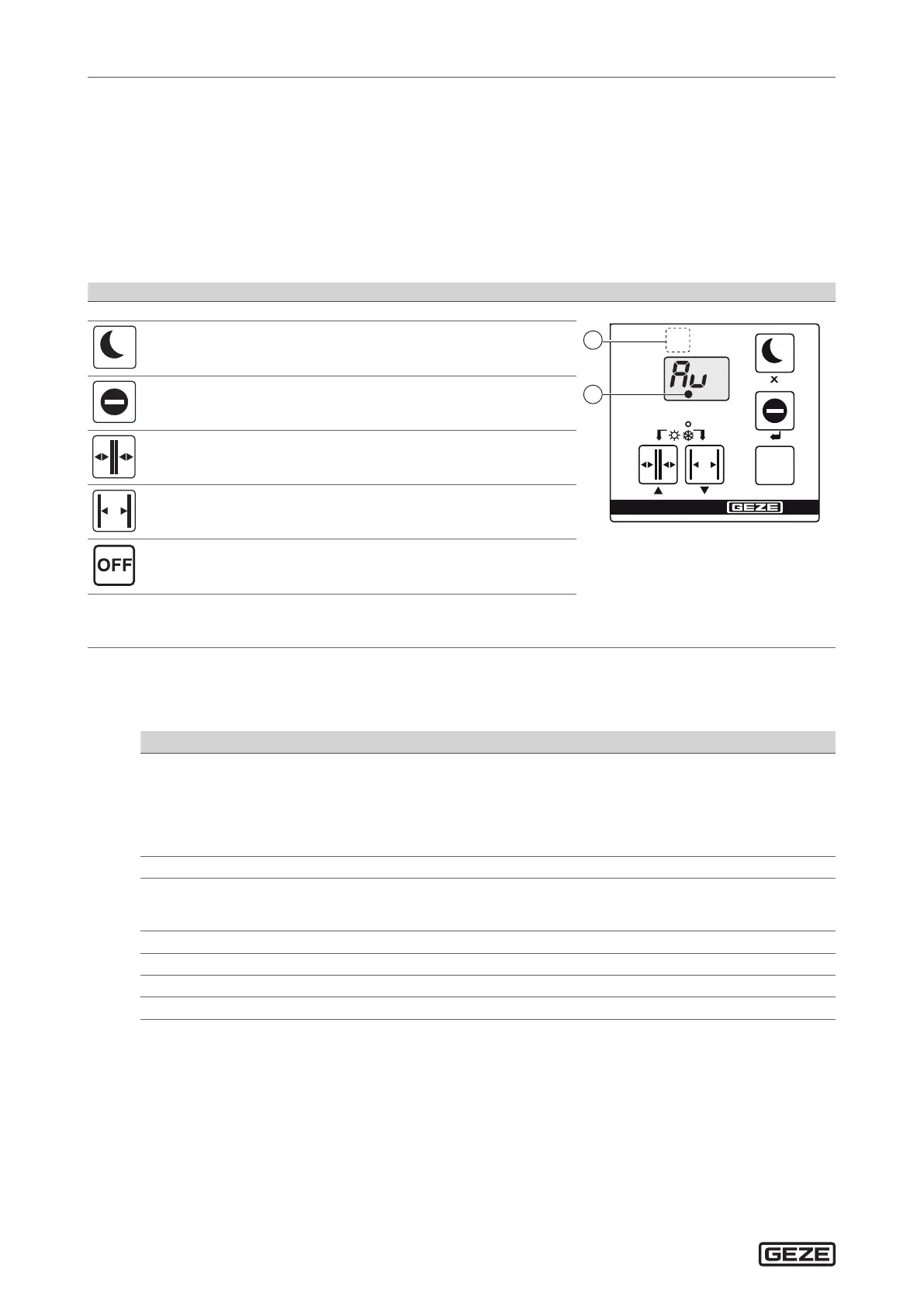

20.1 Display programme switch
The DPS can be used for commissioning and servicing (mat. no. 151524);
à for changing the drive parameters
à for teaching the drive
à for diagnosis
Modes of operation Service mode
OFF
1
2
1 Service key
2 Position unknown
Na
Night mode × Cancel and return to rst
menu level
ls
Without function

Conrm
aU
Automatic

Scroll up
Increase value
DO
Hold open

Scroll down
Reduce value
Of
OFF
Service button (1)
+  simultane-
ously
Change mode of operation / service mode
20.2 Service buttons S1 and S2
Function Input and reaction
Open/leave the parameter menu
X
Press buttons S1 and S2 simultaneously for longer than 2 s.
LED5 ashes slowly, corresponding to the selected param-
eter level:
Level 1: 1 pulse + 1s break
Level 2: 2 pulses + 1s break
LED1 through LED4 display the parameter.
Parameter selection
X
Briey press button S2 (+) or button S1 (–).
Switch to value setting
X
Keep button S1 pressed longer than 2s.
In the value menu, LED5 is o and LED1 through LED4
display the value in accordance with the value table.
Change value
X
Briey press button S2 (+) or button S1 (-).
Conrm value
X
Press button S1 for longer than 2s.
Value setting without exiting value change
X
Press button S2 for longer than 2s.
Reset values to factory settings
X
Set factory settings parameter to
01
.
20.3 Pre-conditions for commissioning
à Installation is complete.
à Electrical installation is complete.
à Sensors are correctly congured and aligned.
