GFA TS 970 - Limit Switch Configuration, Screwable Version up to Year of Construction in 1997; Limit Switch Configuration, Single Limit Switches

11

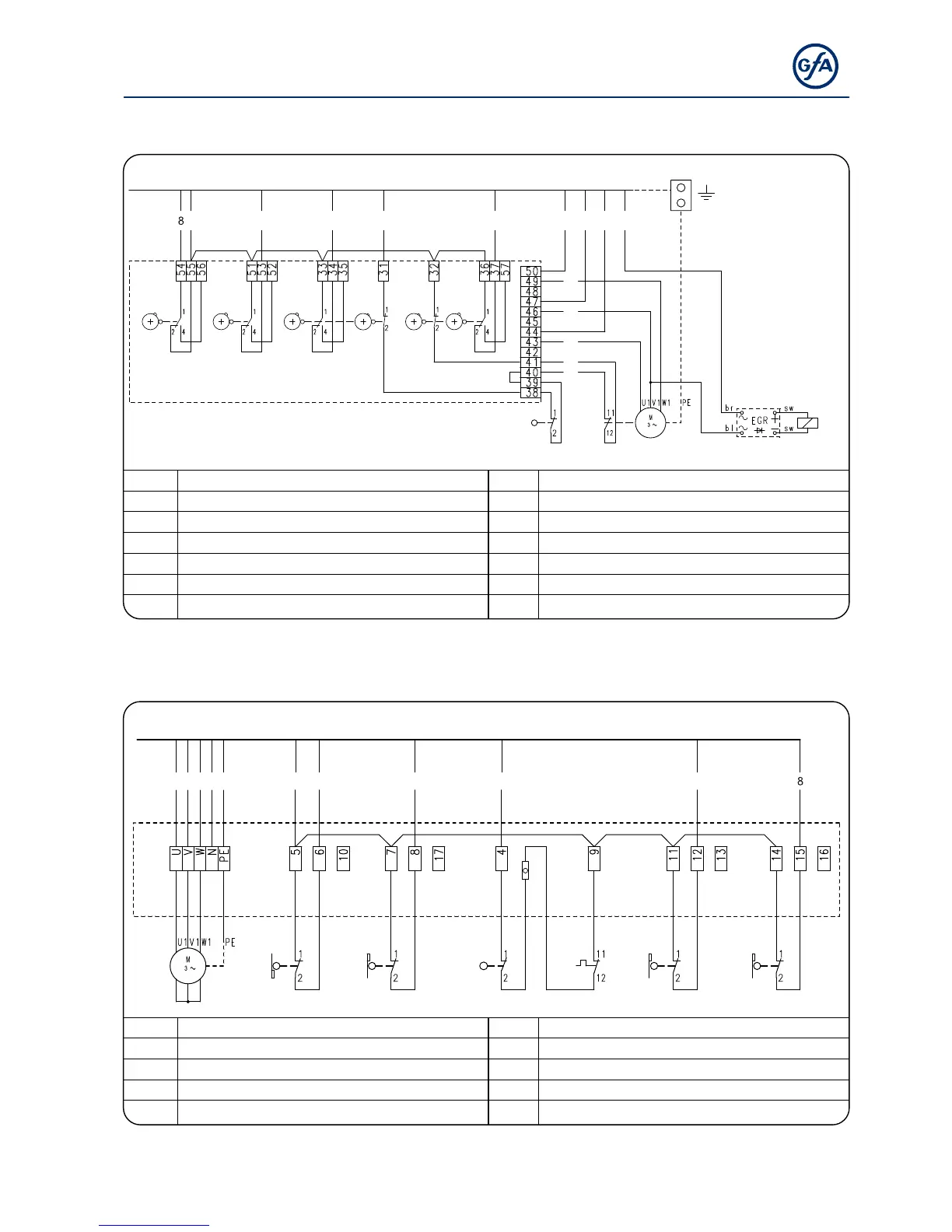

Limit switch configuration, screwable version up to year of construction in 1997
5
6710 93214(N)
S6 S5 S3 S1 S2 S4
S10 F1
G1
Y1
1
3
2
4
5
X12
W1
M1
F1 Thermal contact X12 Limit switch board
G1 Rectifier S1 Emergency OPEN limit switch
M1 Motor S2 Emergency CLOSE limit switch
S10 Emergency manual operation S3 OPEN limit switch
W1 Connection cable S4 CLOSE limit switch
Y1 Spring-loaded brake S5
A
uxiliary limit switch
S6
A
uxiliary limit switch
Limit switch configuration, single limit switches
5 671093214PE
M1 S10 F1S4S3 S5 S6
W1
A1
A
1 Terminal box S3 OPEN limit switch
F1 Thermal contact S4 CLOSE limit switch
M1 Motor S5
A
uxiliary limit switch
S10 Emergency manual operation S6
A
uxiliary limit switch
W1 Connection cable
