GFA TS 970 - NES: Rapid Limit Position Adjustment; NES Limit Position Setup

16
Observe the installation instructions of the drive unit!
 For adjusting the mechanical limit switch, see the drive unit installation
instructions

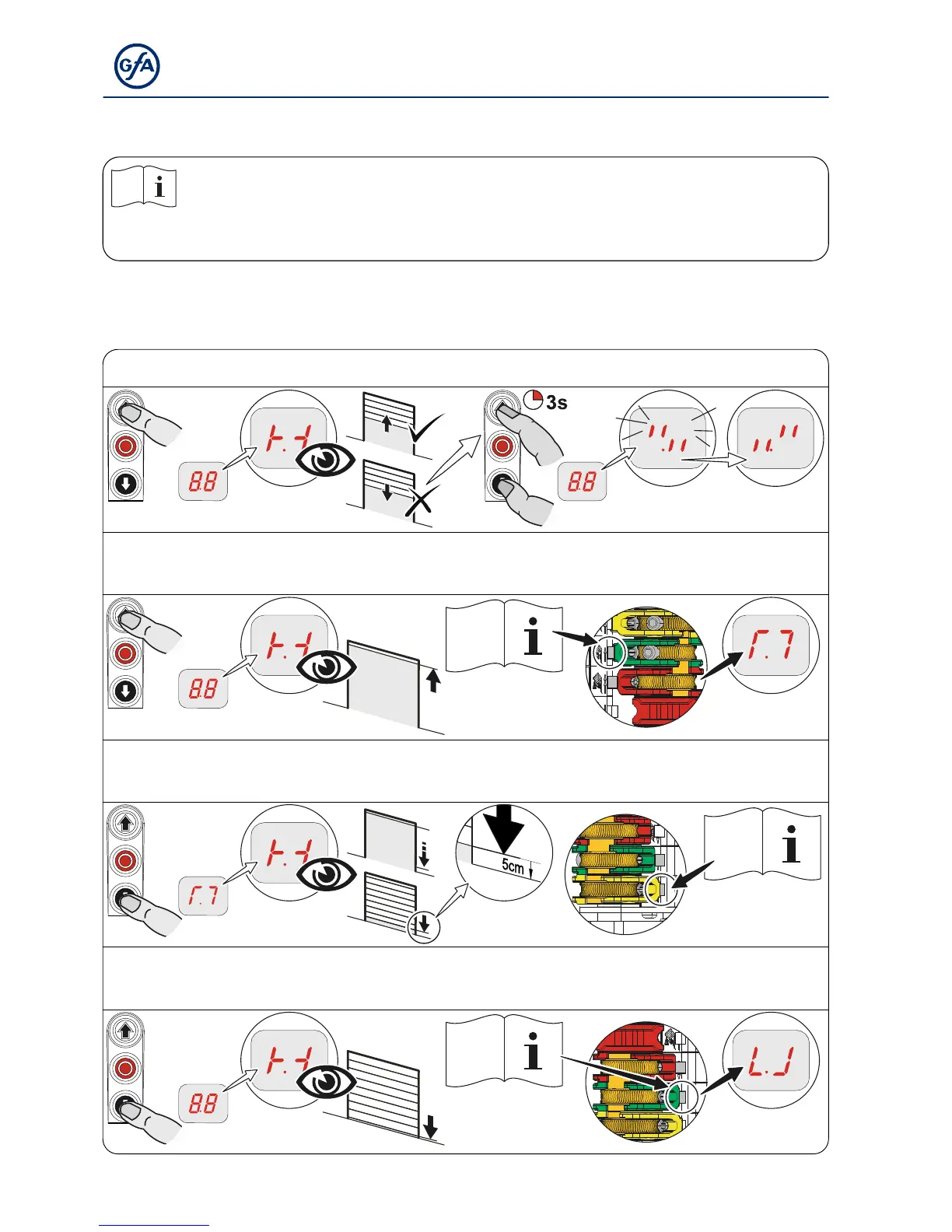

NES: Rapid adjustment of final limit positions
1. Check output rotating direction
2. Move to OPEN final limit position and adjust S3 OPEN limit switch
3. Move to CLOSE final limit position 5cm above the ground and adjust S5 pre-limit switch
4. Move to CLOSE final limit position and adjust S4 CLOSE limit switch
