GFA TS 970 - Door Positions; DES Final Limit Position Setup; DES Safety Edge Pre-limit Setup

23
Door pos itio ns

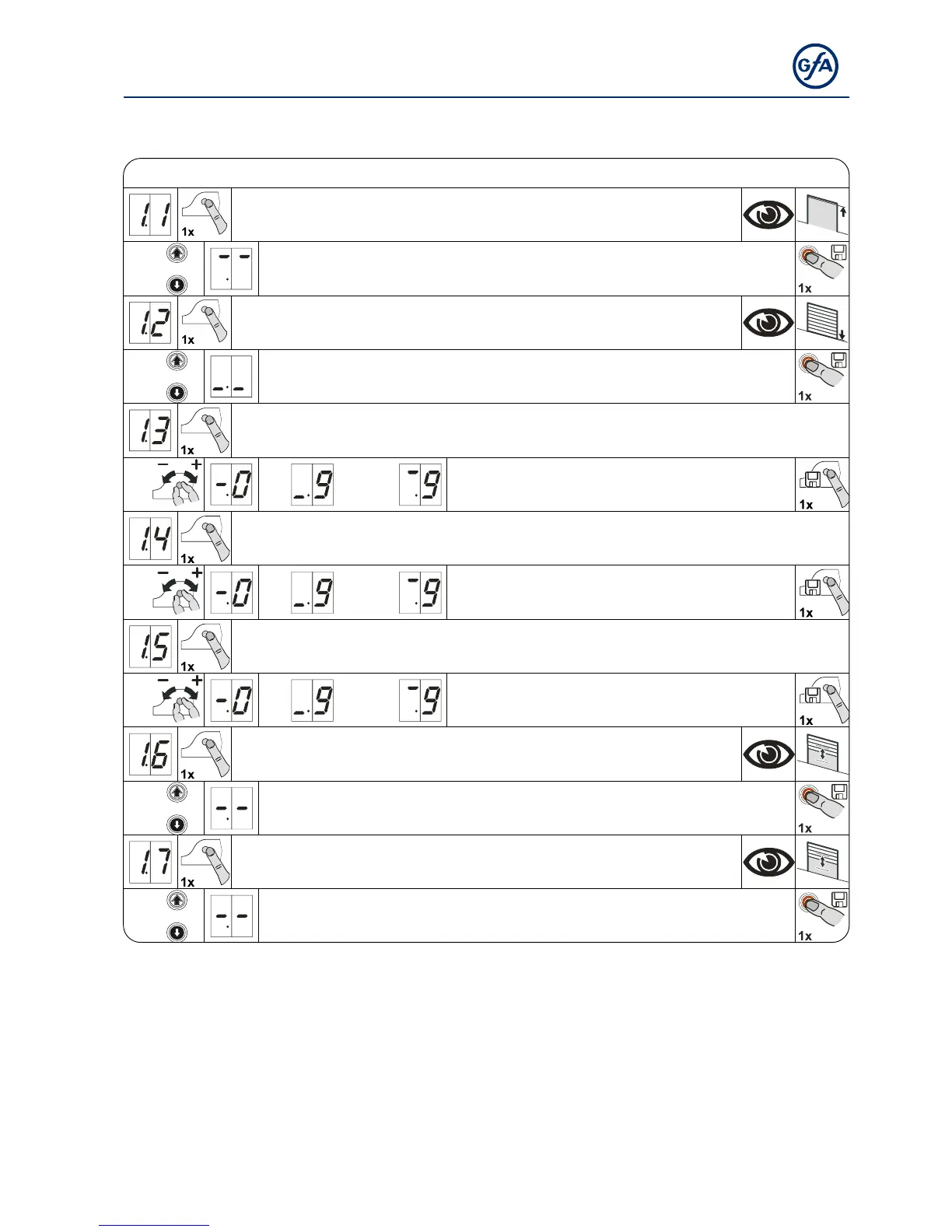

Door positions
OPEN final limit position, coarse correction (DES)
Approach and store desired door position
CLOSE final limit position, coarse correction (DES)
Approach and store desired door position
OPEN final limit position, fine correction (DES)
Without door movement,
[ + ] OPEN correction
[
–
] CLOSE correction
CLOSE final limit position, fine correction (DES)
Without door movement,
[ + ] OPEN correction
[ – ] CLOSE correction
Fine-correction pre-limit switch for safety edge (DES)
Without door movement,
[ + ] OPEN correction
[ – ] CLOSE correction
Adjust intermediate open X8 (DES)*
Approach and store desired door position
Setting for position of relay switching point (DES)*
Select relay function via menu item 2.7
Approach and store desired door position
*) Menu items 1.6 to 1.7 disappear at NES. The switching point must be adjusted via the S6 auxiliary limit switch
at the drive unit.
