GFA TS 970 - Overview of Control

14

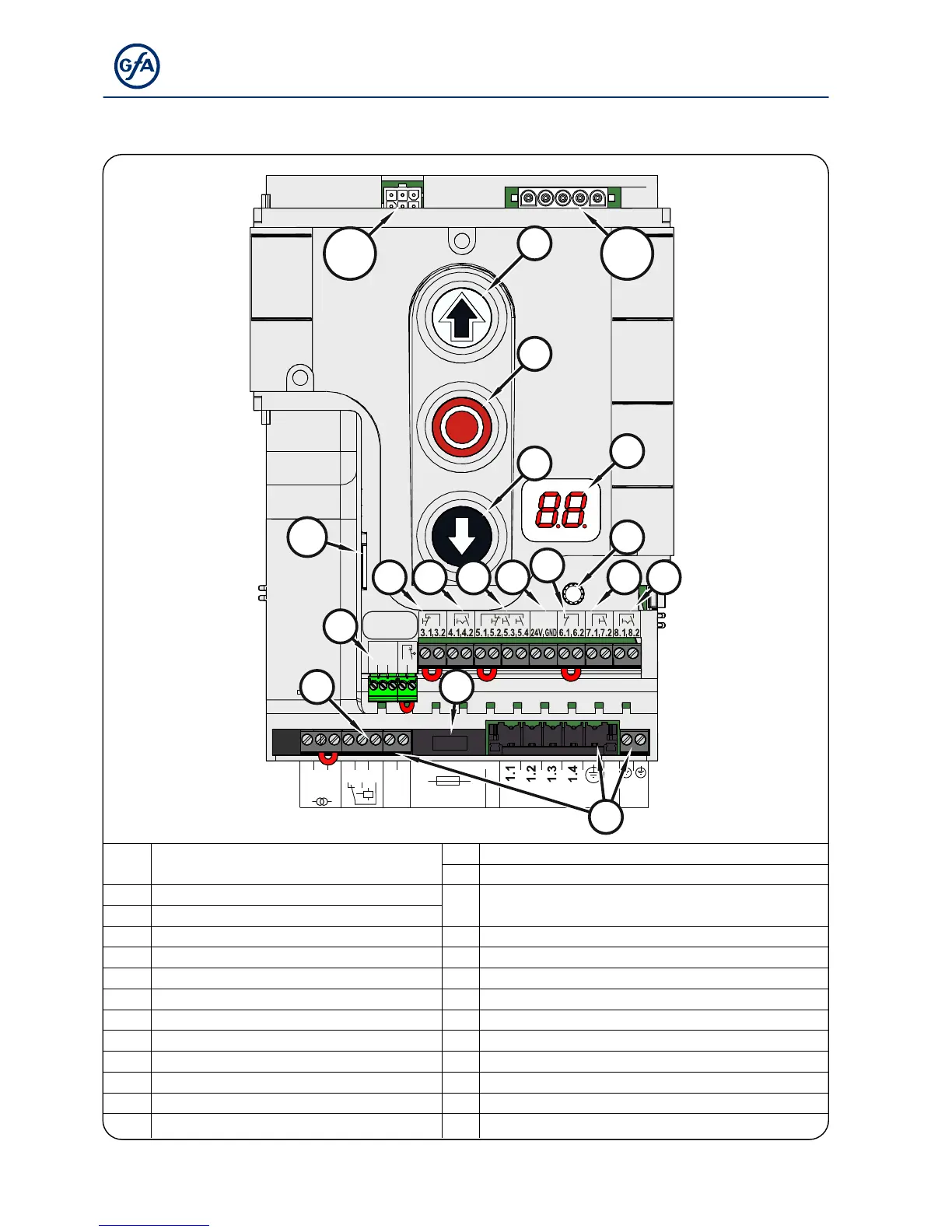

Overview of control
20.1
1.5
1.8 1.9
20.2
1.6
20.3
1.7
F1 = 1,6A t 230V 400V
2.1 2.3 2.5 2.2 2.4
V1
MOT
DES/
NES
S11
S12
S13
X20
X3
X2
X4 X5 X
X6
X7 X8
F1
UBS S
X1
970
DES/
NES
DES or NES limit switch socket
X 24 V mains supply, external devices
X1 Mains supply
F1 Micro-fuse 1.6 A time-lag
X2
Safety edge and
door safety switch
MOT Motor socket
S Selector switch X3 Emergency STOP control device
S11 OPEN push-button X4
A
utomatic closing On/Off
S12 STOP push-button X5 Control device, external three push-button
S13 CLOSE push-button X6 Through / reflective photo cell
UBS Universal command sensor socket X7 Pull switch
V1 Display X8 Intermediate stop On/Off
X20 Potential-free relay contact
