GFA TS 970 - Mains Supply and Connection; Mains Supply Options; Mains Connection Procedure

13

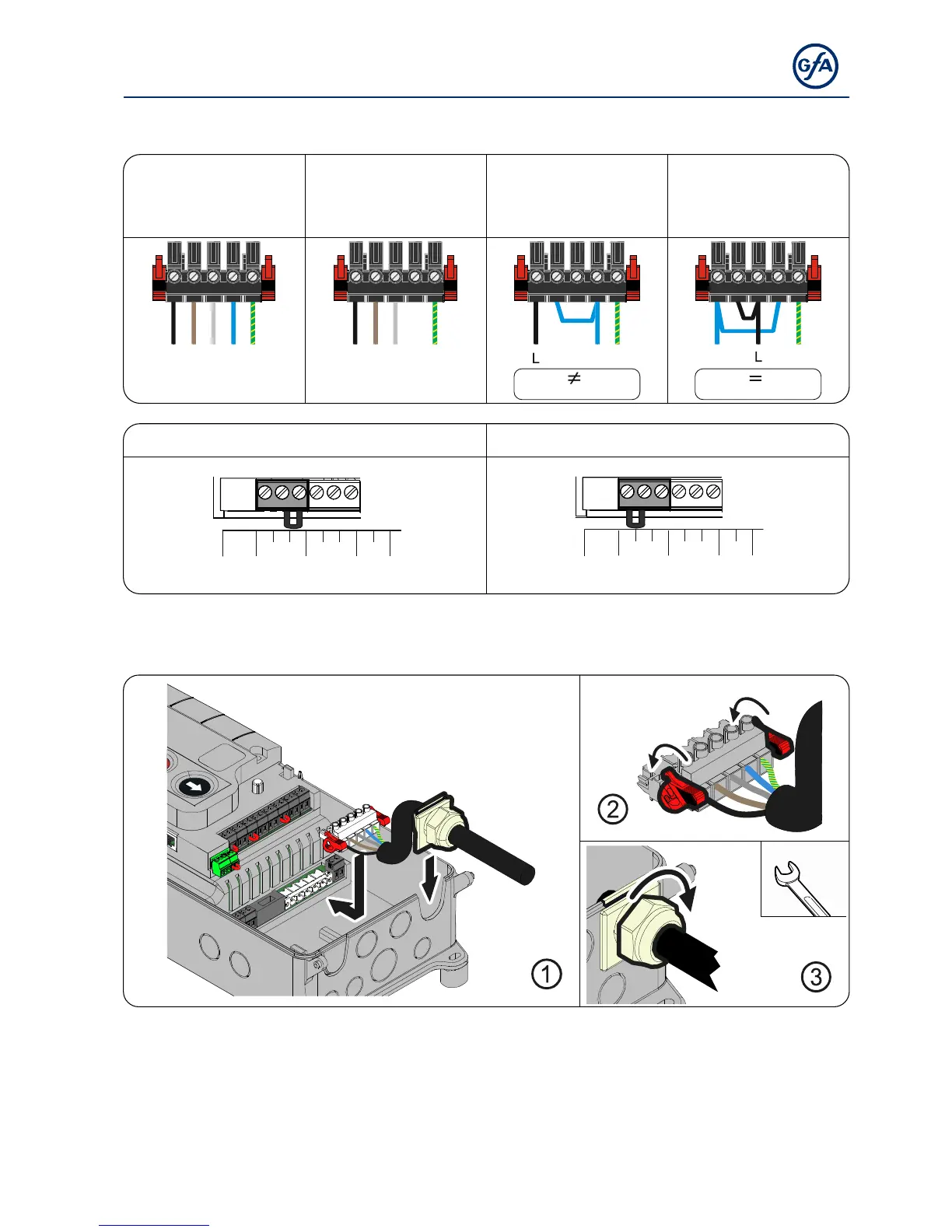

Mains supply
3~, N, PE
230 / 400 V
50 / 60 Hz
3~, PE
230 / 400 V
50 / 60 Hz
1~, N, PE, sym.
230 V
50 / 60 Hz
1~, N, PE, asym.
230 V
50 / 60 Hz
L1
L2
L3
N
PE L1
L2
L3 PE
N
PE
SI 25.15 WS, SI 45.7 WS
NPE
SI 25.15 WS, SI 45.7 WS
3 x 400 V 1 x 230 V / 3 x 230 V
20.1
1.5
1.8 1.9
20.2
1.6
20.3
1.7
2 30V 4 00V
20.1
1.5
1.8 1.9
20.2
1.6
20.3
1.7
2 30V 4 00V
Mains connection to control
3
Completing the electrical installation
Install and tighten cable entries and/or cable glands.
For commissioning of the control, leave the covers open.
