Door functions, part 4
Intermediate open function
All command inputs
Input X7.2
Input X5.3 and
OPEN push-button of control

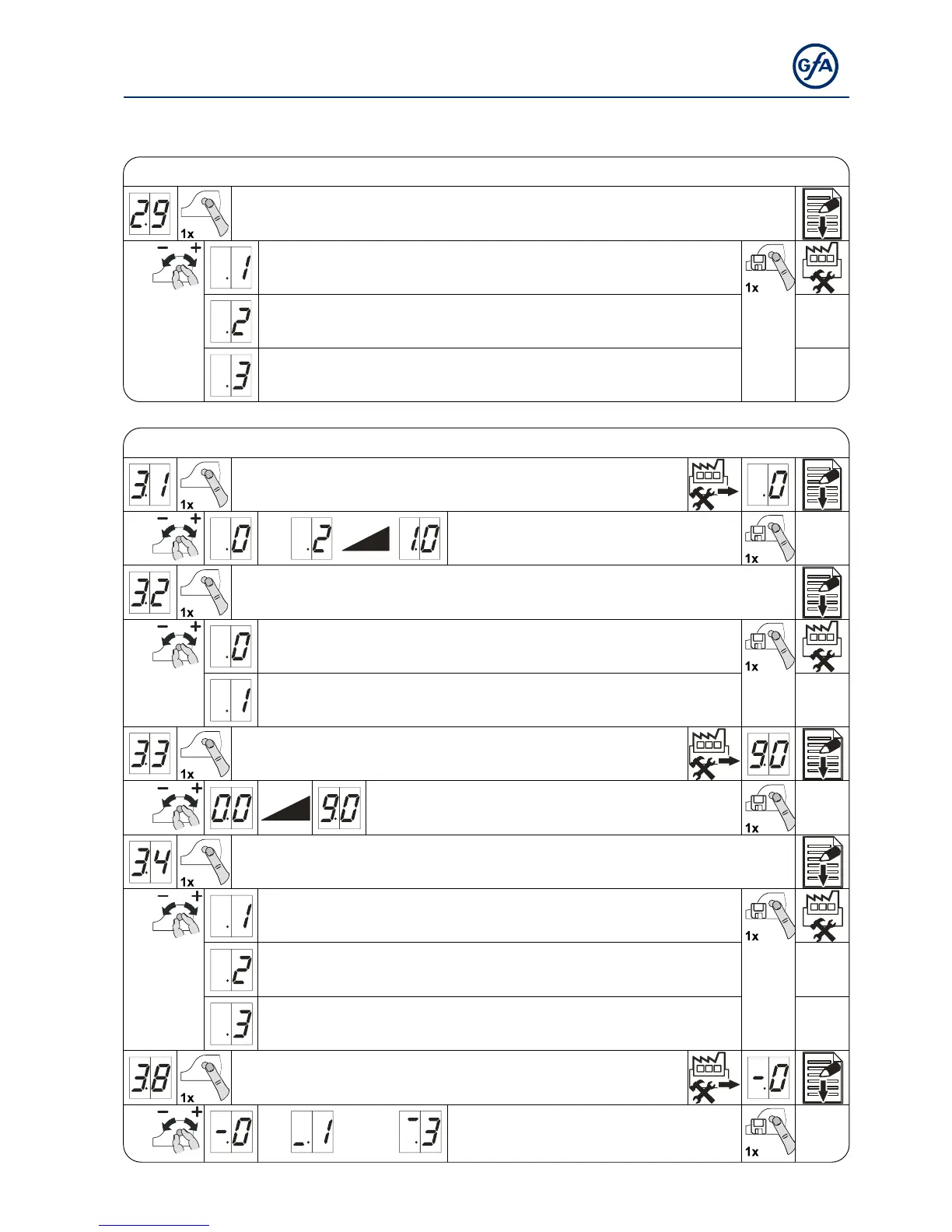

Safety f unctio ns
Safety functions
Force monitoring (DES)
0 = Off
Adjustable for 2 % to 10 % overload
Interruption of the photo cell function (DES)
Off
On
(single reference position taught-in twice)
Travel time monitoring (NES)
0 = Off
0 to 90 seconds
Door safety switch function
(Input X2.2)
Slack-rope / Pass-door switch
Crash switch as NC contact
After activation changeover to "Hold-to-run" door operating mode
Crash switch as NO contact
After activation changeover to "Hold-to-run" door operating mode
Reversing duration adjustment
[ + ] slower
[ – ] faster
