Gill Instruments 1561-PK-020 User Manual

WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
11
5. PRE-INSTALLATION
5.1. Equipment supplied
WindMaster 1590-PK-020/W, WindMaster RA 1590-PK-130/W or WindMaster Pro 1561-PK-020/W
Connector assembly comprising 31 way Clipper connector.
Solder bucket pins.
Sealing gland and washer.
Installation kit Four M6 stainless steel nuts, bolts and shake-proof washers.
User Manual (this document) on a CD.
WindMaster 1590-PK-050 Pipe Mount Unit
Installation kit Two 45mm Stainless Steel Jubilee Clips.
Three slotted M5x10mm set screws.
One M4 stainless steel screw, spring washer, washer and crimp ring
terminal.
User Manual (this document) on a CD.
5.2. Software
WIND software supplied on the User CD is also available free at www.gillinstruments.com , and is strongly
recommended as it provides an easy, user-friendly interface to configure the WindMaster/Pro unit.
WINDVIEW software supplied on the User CD is also available free at www.gillinstruments.com , and it provides an
interface to view and log WindMaster/Pro data.
5.3. Ordering Options
Notes These options must be specified when ordering the WindMaster or WindMaster Pro.
Option WindMaster/
WindMaster RA
WindMaster Pro
Software Serial
Number Prefix
Identification
Improved W Speed and
Improved  2C Sonic
Temperature Performance
(See Appendix A)
1590
-
PK
-
020/W
,
1590-PK-130/W and
1590-PK-050
1561
-
PK
-
020/W
Wxxxxxx
Four Analogue outputs
(See Note 2)
12 or 14 bit (specify
on
order)
14 bit
Specify when
ordering
N
ot Applicable
Four Analogue inputs
(See Note 2)
12 or 14 bit (specify on
order)
1590-PK-050 12 bit fitted
14
bit
Specify when
ordering
Not Applicable
PRT input
(
S
ee Note 2)
Not available
Specify when ordering
Not Applicable
32Hz
(See Note 2)
Specify when ordering
Not Applicable
Not Applicable
Wind tunnel calibration,
traceable to national
standards (See Note 1)
Specify when ordering
(See Note 1)
Specify when ordering
(See Note 1)
Not Applicable
Note 1, Units may be returned to Gill Instruments for Wind tunnel calibration.
Note 2, Implemented options are identified on the unit label
with a against the option description.

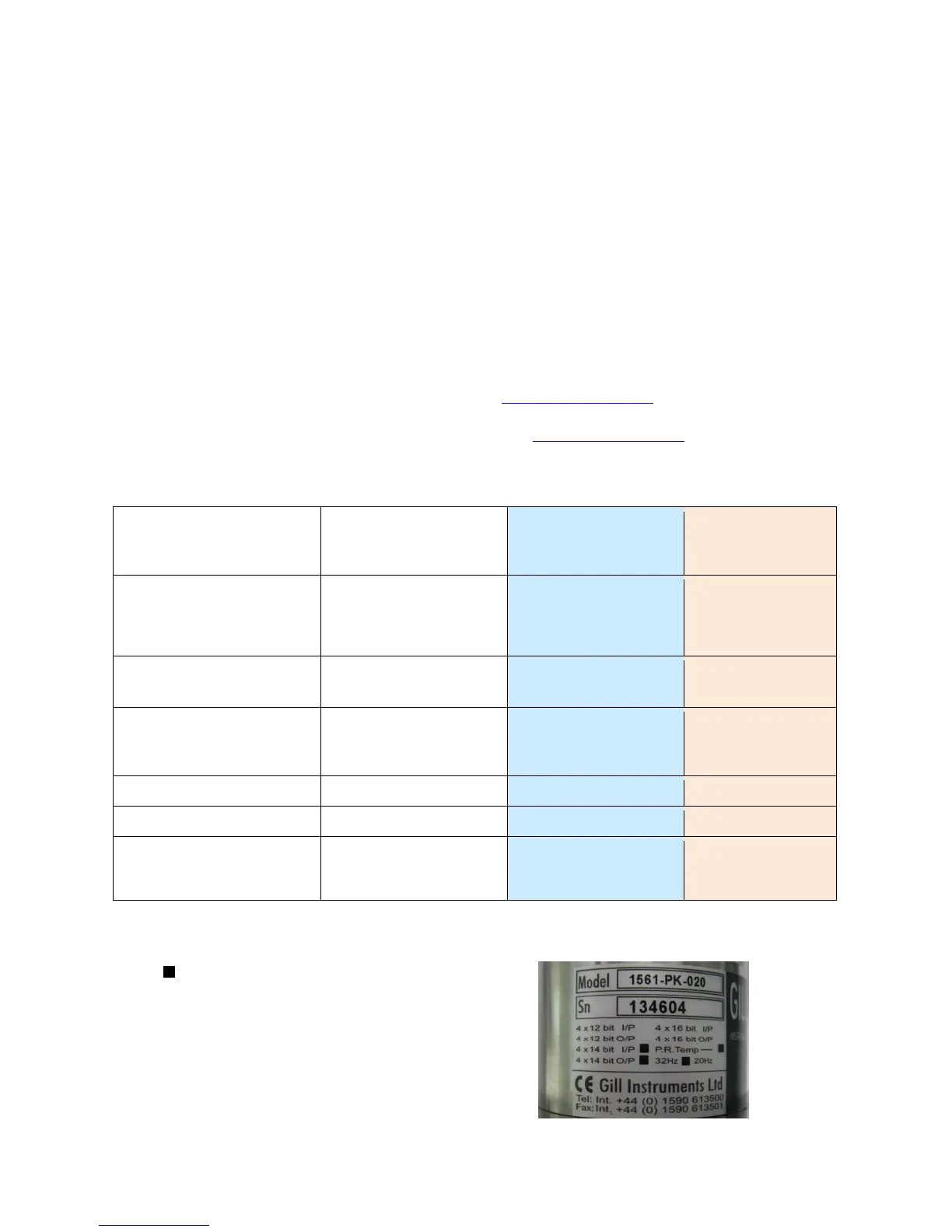

The picture opposite shows a unit with options for:-
4 x 14 bit I/P
4 x 14bit O/P
PRT
32Hz
