WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
29

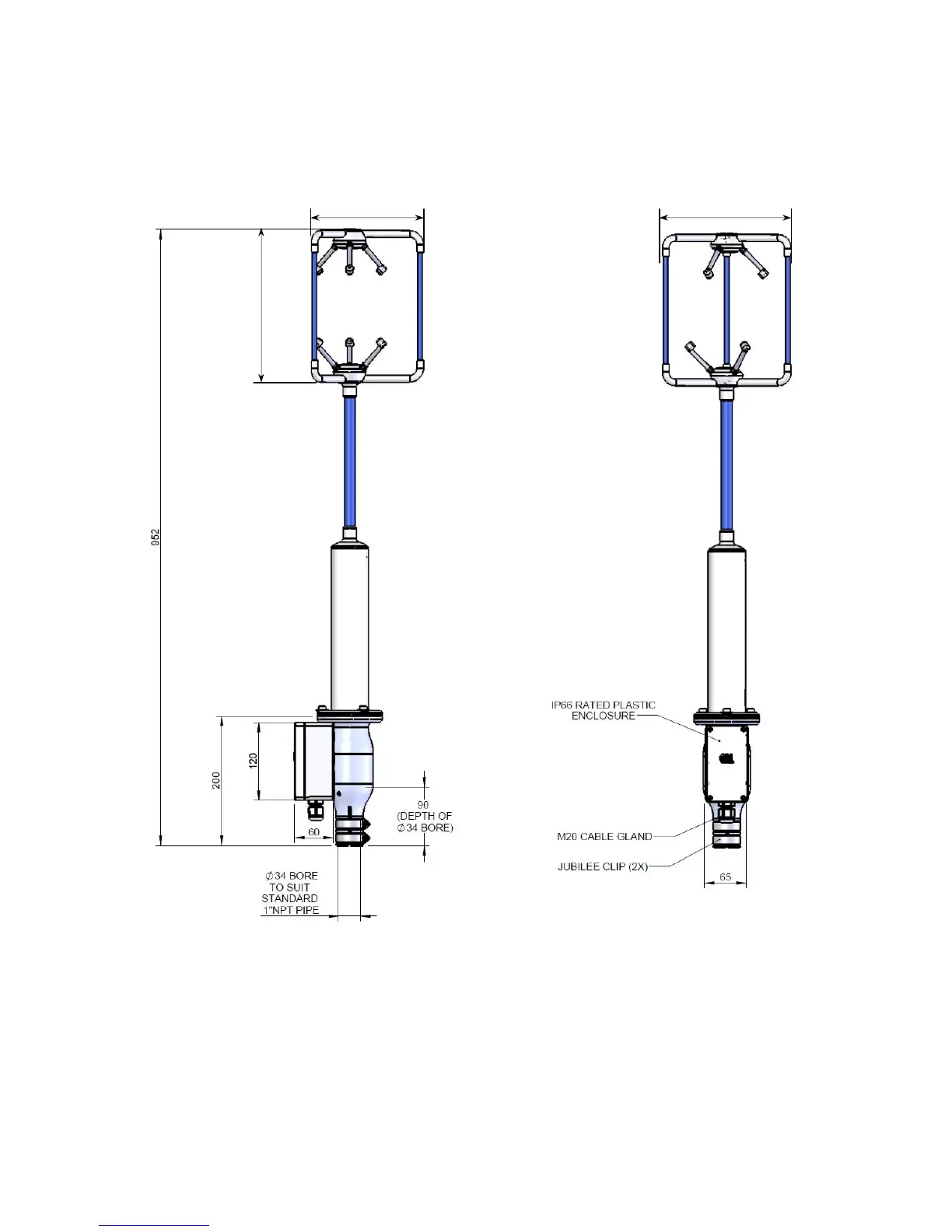

Part 1590-PK-050 WindMaster Pipe Mount Dimensions
The North Spar and Alignment marking is illustrated in Figure 3 on the previous page.
Corrosion
Careful note should be taken of the possibility of galvanic corrosion by incorrect mounting. It is vital that only stainless
steel fixings are used and that the instrument is insulated from the mounting surface with the rubber gasket. This will
ensure that the anemometer will provide long service under extreme conditions such as marine.
