Gill Instruments 1561-PK-020 User Manual

WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
16
31 Way Connector Cable Assembly.
Open the pack of parts (1561-PK-050) provided with the WindMaster (not Pipe Mount units).
Strip the cable and solder the contact pins to the cores (please note that the connector supplies the correct strain relief
for cables with an outside diameter of 6-12mm).

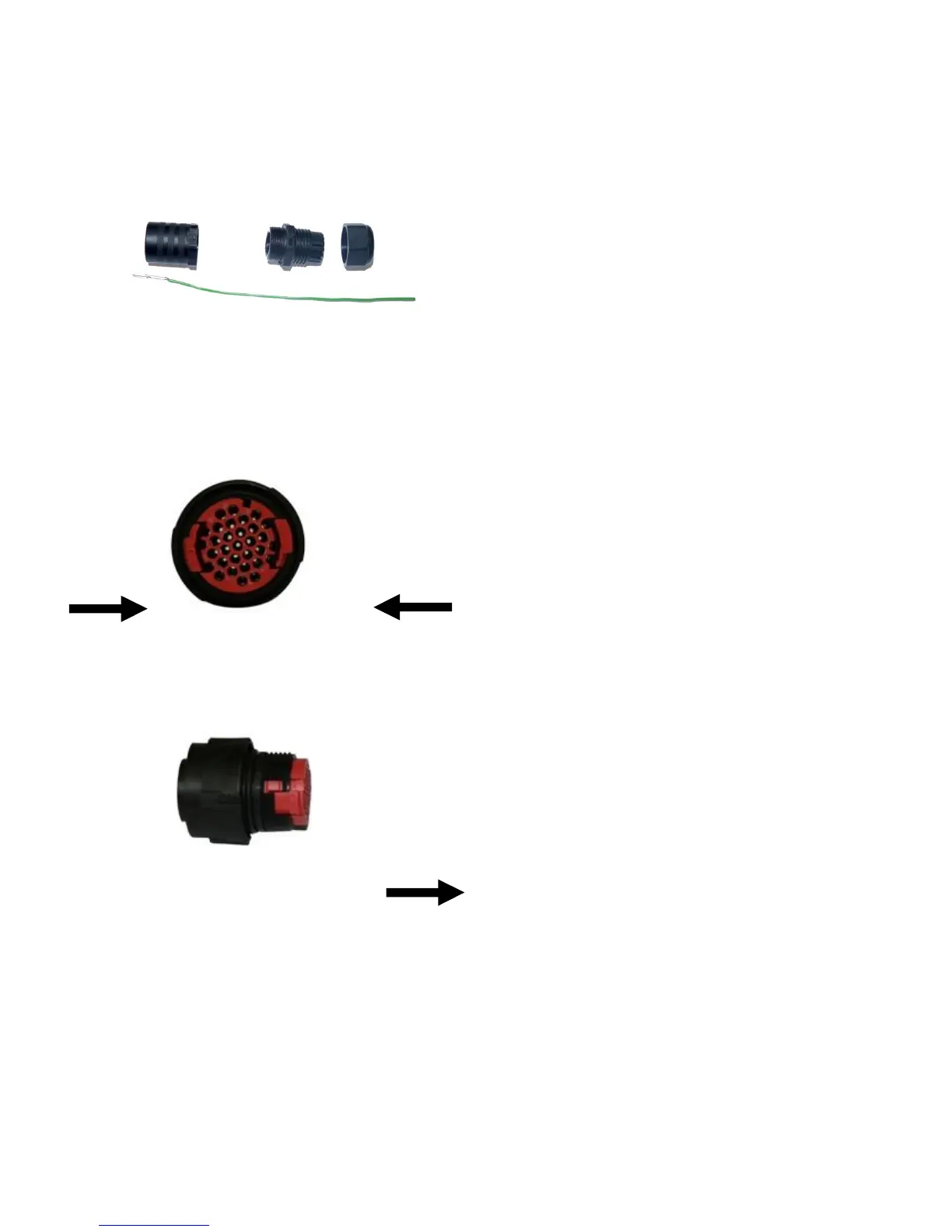

Put the parts on the cable in the order as shown below.
Whilst squeezing the red retainers in the direction of ARROW A, pull in the direction of ARROW B.
A
B
Your connector should now resemble the connector in the picture above.
