WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
31
Gill Instruments Pipe mount adaptor (1561-PK-026).
The pipe mount adaptor enables the WindMaster to be fitted directly to a standard 1.5 inch BSP pipe (Pipe size OD 1.9"
(48.3mm) , ID 1.5" (38.1mm) , wall thickness 0.2" (5.08mm). The pipe mount adaptor can be ordered from Gill.
The WindMaster connector must be connected to the WindMaster before the pipe mount adaptor is attached to the
WindMaster. Pass the cable (fitted with the 31 way Clipper plug) through the tube. Connect the plug by twisting it
whilst pushing it gently into the socket on the WindMaster. When it locates, twist the outer sleeve clockwise to connect
and lock the plug.
Fix the pipe mount adaptor to the pipe using the 2 off M8 stainless steel screws provided.
Note: the customer MUST fit appropriate strain relief to the cable - this is particularly important with pipe mounting.
Mount the WindMaster unit to the pipe mount adaptor using the flange gasket and the M6 nuts, bolts and washers
provided.

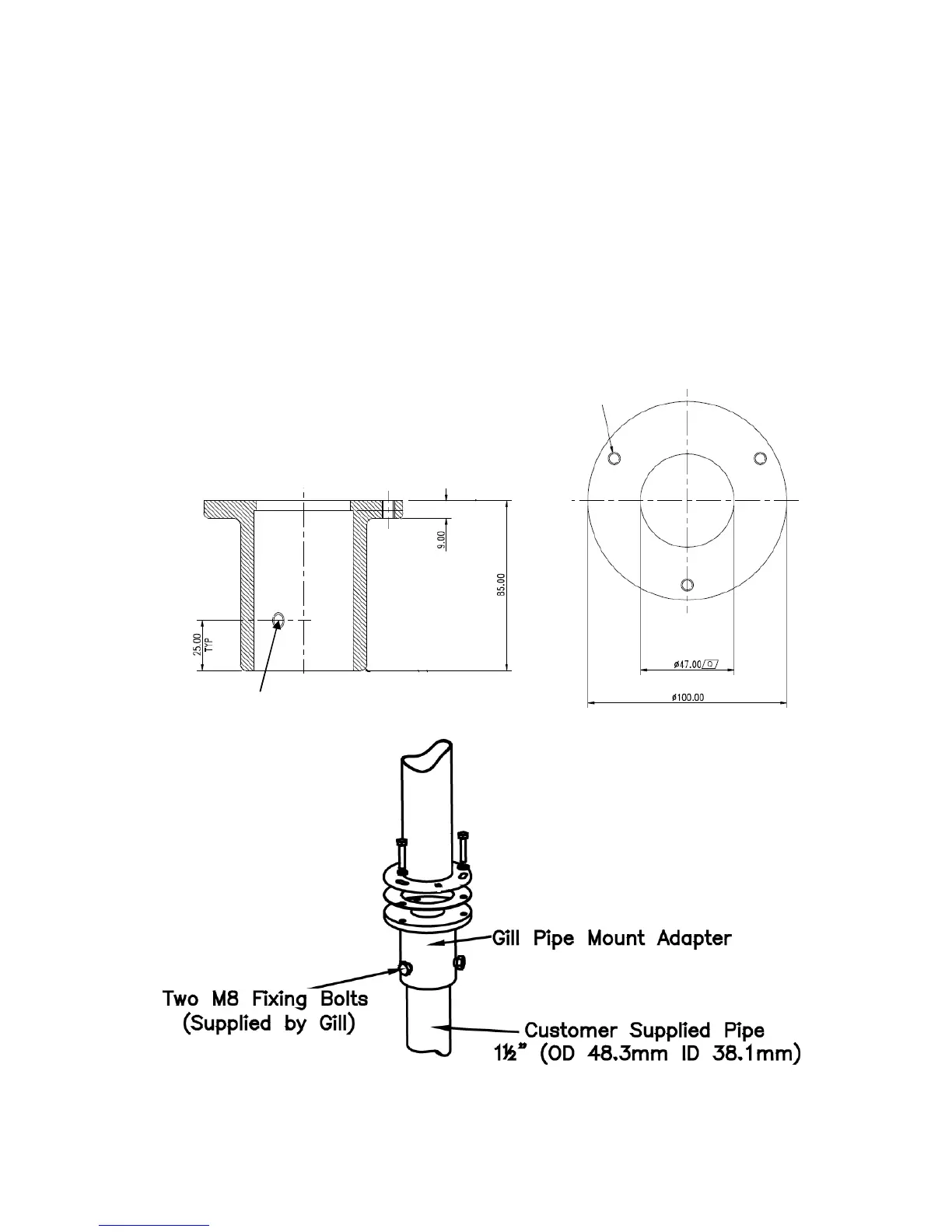

Figure 5 Pipe Mount Adaptor (1561-PK-026)
In whichever way the WindMaster is mounted ensure a good Earth connection is made. An earth connection can be
made using a 6mm2 wire see page 28.
