WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
33
Gill Instrument Pipe Mount Adaptor 1590-PK-048.
Gill Pipe Mount Adaptor Part 1590-PK-048 can be used with WindMaster and WindMaster Pro units.
A kit parts are supplied that can be assembled to the base of the WindMaster/Pro and to complete mounting the
assembled unit to a pipe.
The Pipe Mount has a smooth internal bore (3.54 inches/90mm in depth) and is designed to mount on a smooth pipe
with a nominal outer diameter of 1.32 inches or 33.4mm. E.g. a pipe with outer dimensions of a one inch national pipe
thread.
Assembly Details.

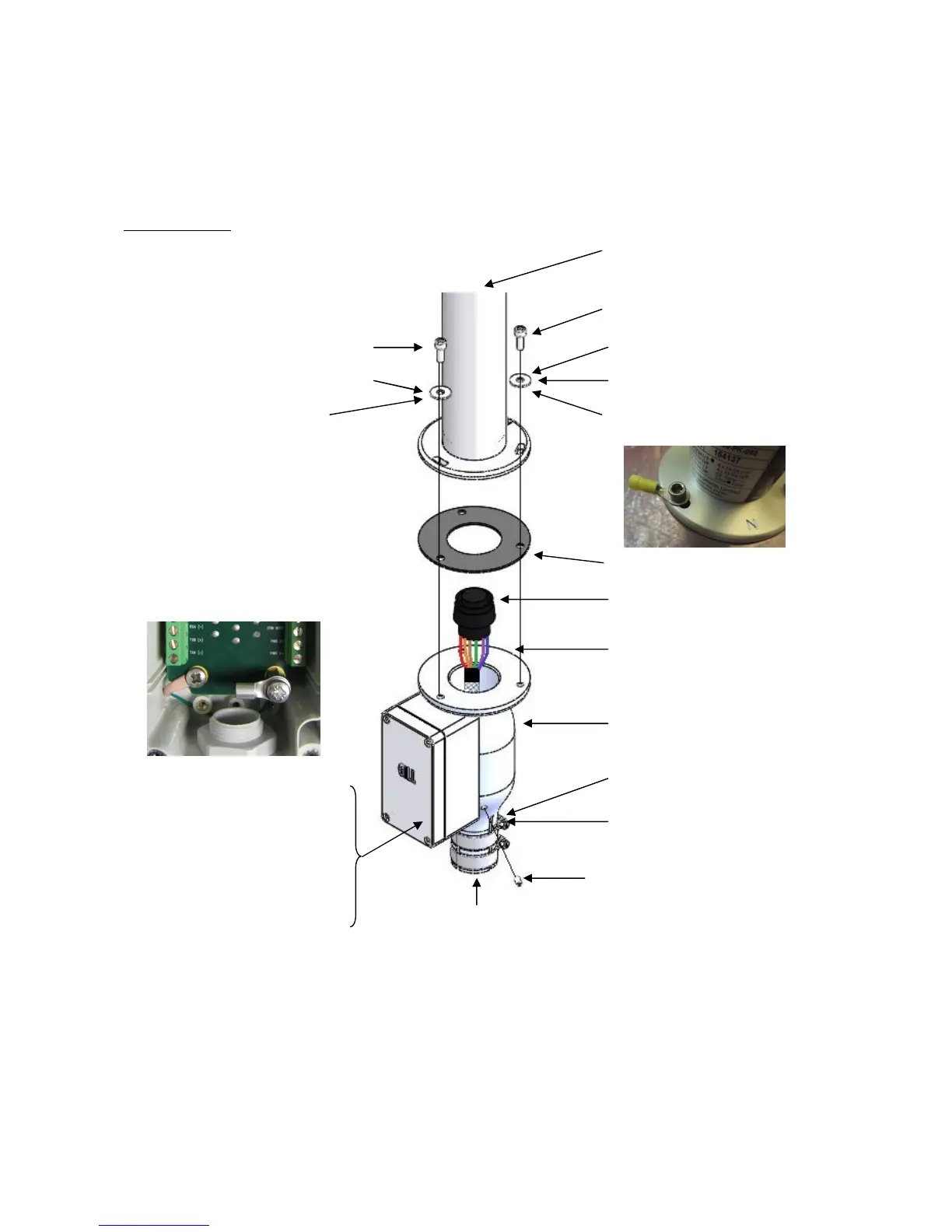

Open the supplied installation kit box 1590-PK-046 which contains items highlighted in red and referring to the above
illustration.
Assemble the WindMaster/WindMaster Pro base to the Pipe Mount, fitting the 31 way plug, M6 parts and gasket
supplied in the sequence and order shown in the above illustration.
Slide the two 35mm rubber bands on to the pipe section of the mount.
Slide on the two supplied 35-45mm Jubilee Clips over the two rubber strips (see above illustration).
Slot the WindMaster into position on to the mounting pipe (engage to depth of 90mm).
Fit the 3 off M5 set screws into three equidistant holes in the pipe mount, see above illustration. Align the unit
North Spar/N marking to North as required (see Page 27, Figure 3) and then tighten the 3 set screws in place.
Tighten and torque the two Jubilee clips in turn, evenly to a figure of 5 Newton/Metres or 45 Pounds/Inch.
