Gill Instruments 1561-PK-020 User Manual

WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
43
8. ANALOGUE INPUTS
Notes:- Options of four analogue inputs must be specified when ordering.
WindMaster Part 1590-PK-050 is supplied with four off 12 bit analogue inputs.
Use Gill Wind Software to enable Analogue inputs.
Information on how to change the formats and all the settings follows in Section 10, CONFIGURING.
Averaging (G command) does not apply to Analogue inputs. If the G command is set for example to
G10, one reading every 10 seconds, then the last value displayed will be output until the 10 second point
arrives and a new instantaneous (non averaged) reading will be output.
Analogue inputs are not supported in Syncpoll 1 mode.
8.1. Analogue Inputs
The input range is fixed at  5V
For pin connections see 6.6.1 and 6.6.2 Connections.
The WindMaster can be configured for 4 single analogue inputs (31 way connector Pins 27, 28, 29 and 24 or on Pipe
mount box A IN 1, A IN 2, A IN 3, and A IN 4) or 2 differential analogue inputs. 31 way connector Input 1 (Pins 27
and 28) and Input 2 (Pins 29 and 24) or Pipe Mount box Input 1 (A IN 1 and A IN 2) and Input 2 (A IN 3 and A IN 4).
Input range
-
5 V to + 5 V
Common mode input range

5 V
Input impedance
310 K ohm in series with 2.5 V
Resolution
12, 14 bit (as installed)

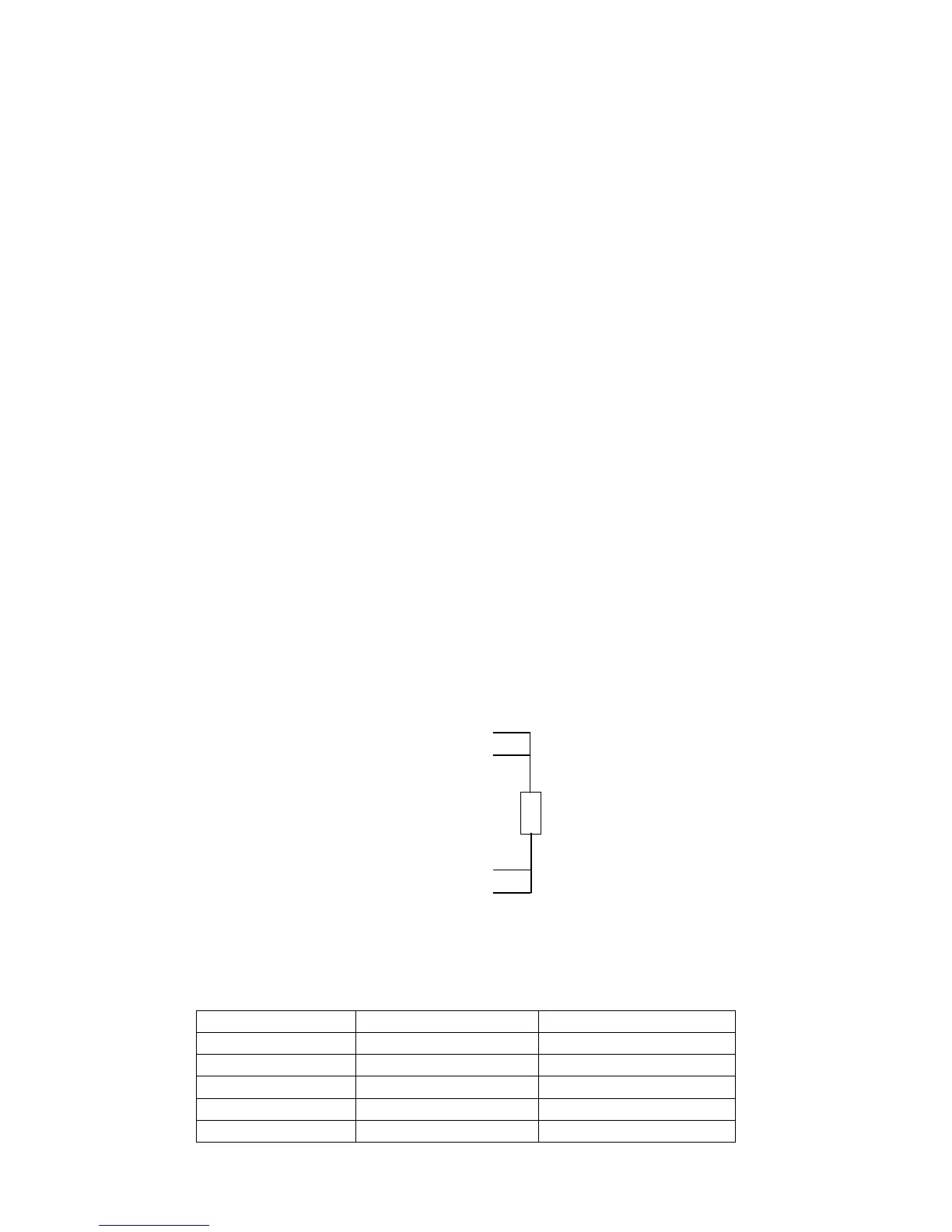

8.2. PRT input
Available on the WindMaster Pro only. (Must be specified when ordering).
The PRT input is designed to work with any 4 wire PRT that meets IEC60751.
Pin No's
19
PRT excitation +
25
PRT sense +
PRT 100
26
PRT sense
-
20
PRT excitation
–
8.3. Input Rates
In single ended mode timing responses are:-
Channel
20Hz Base Rate
32Hz Base Rate
1
20Hz
32Hz
2
20Hz
16Hz
3
5Hz
4Hz
4
5Hz
4Hz
PRT
5Hz
4Hz
