Gill Instruments 1561-PK-020 User Manual

WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
18
Once all of the contacts are inserted push the red retainer into place.
NB. The retainer can only be pushed back into place if the contacts are fully engaged.
Fit the connector to the WindMaster so that you can now finish assembling the connector.

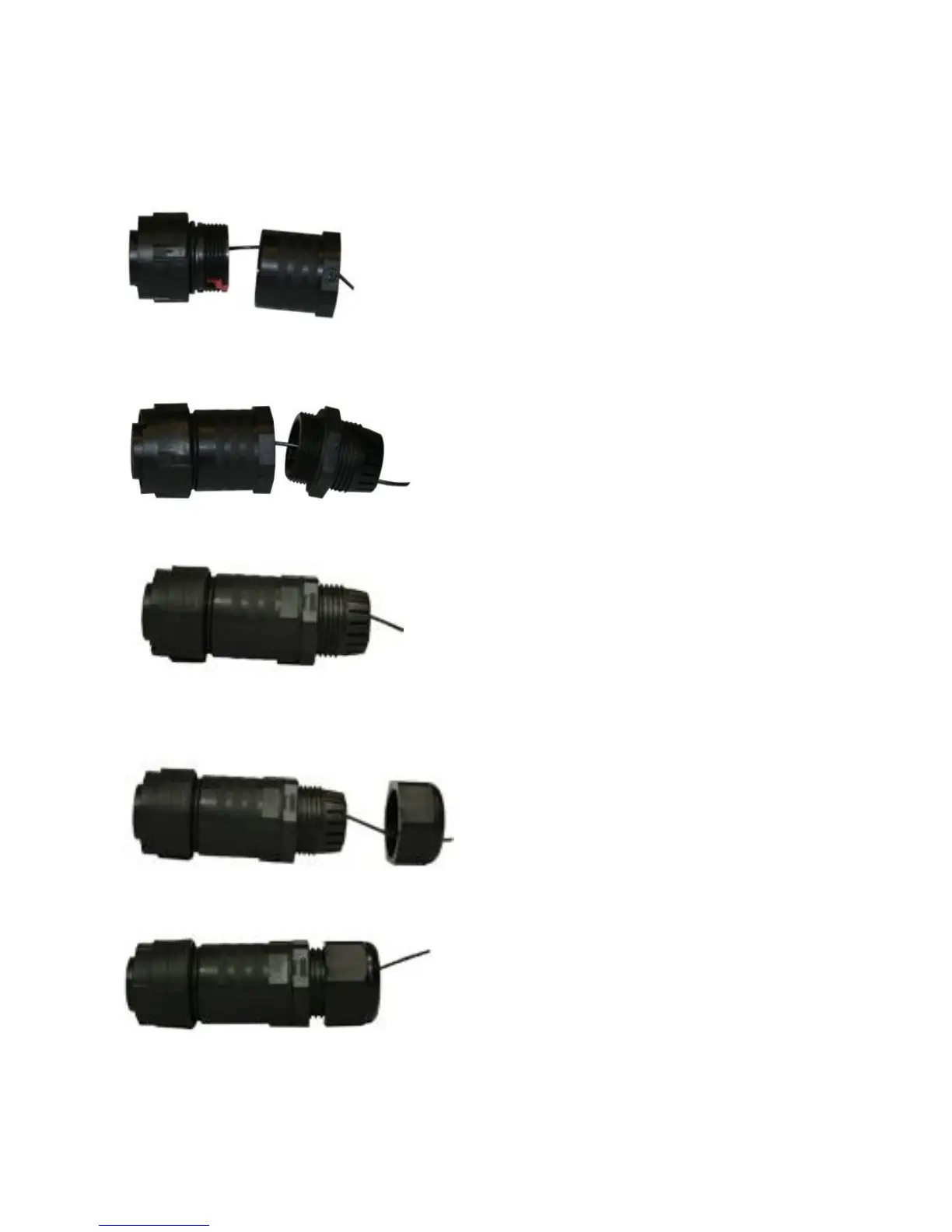

Screw the back-shell onto the connector until it is fully in place. Please note that the final rotations can be slightly
stiff
Screw the cable clamp into the back shell
Now screw the cable-clamping nut into place
.
The connector can now be removed from the WindMaster.
