WindMaster and WindMaster Pro 1561-PS-0001. Issue 11 February 2017
________________________________________________________________________________________________________________________
20

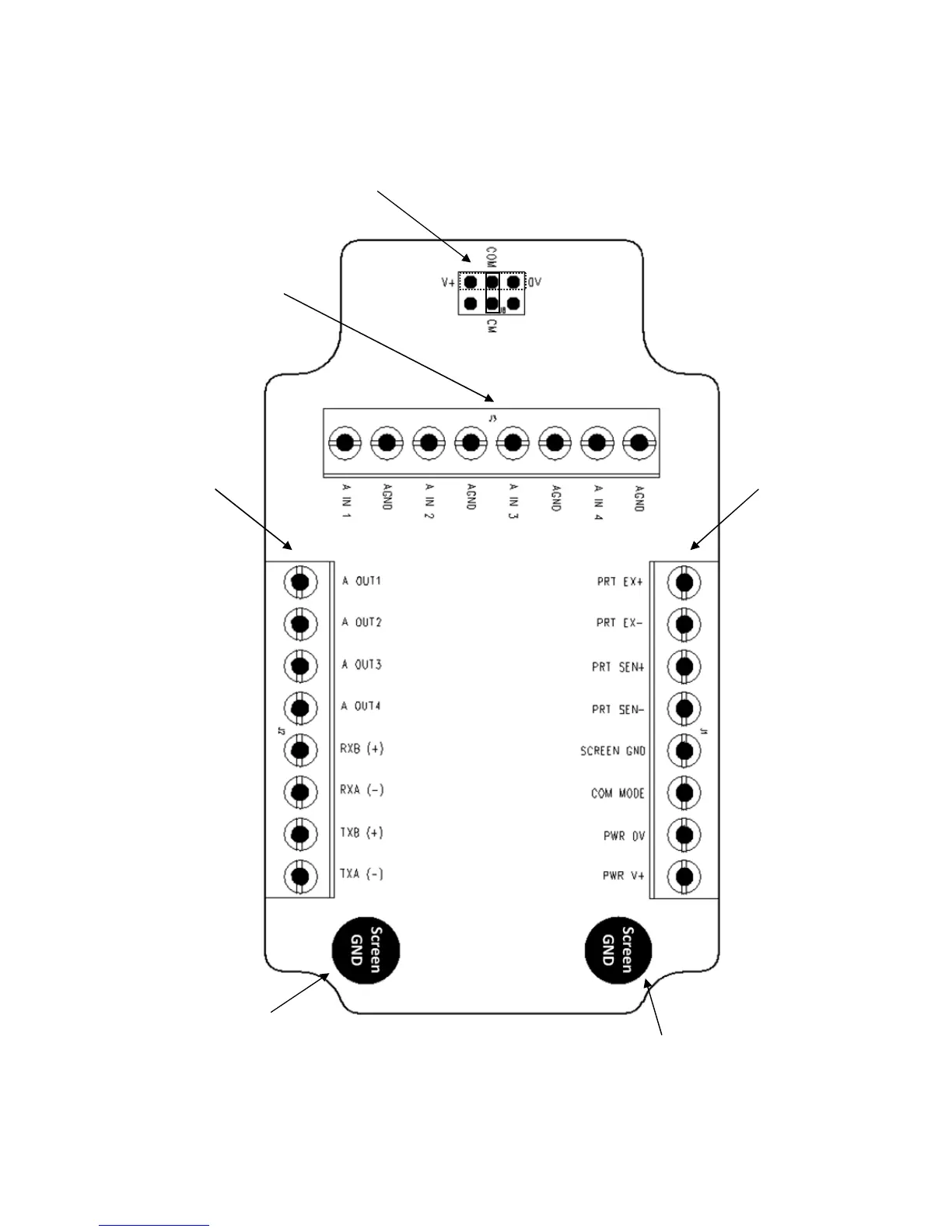

WindMaster 1590-PK-050 Pipe Mount Box Connection Schematic
Note: The M20 cable gland outlet on the Pipe Mount box is designed to accept cables with an outer diameter between
8mm to 13mm.
WindMaster 31 Way connector cable
screen connected to a crimp terminal
screwed to the hexagonal pillar.
The cable screen/s from user equipment are
wired to this Pillar using M4 screw, washers and
terminal fixings supplied in the installation kit
1590-PK-045 or 1590-PK-046.
J4, Comms Link Positions.
Solid line is default (COM to CM).
Move to COM and V+ for RS232 only if not using an external wire link to set RS232 operation.
Move to COM and 0V for RS422/RS485 only if not using an external wire link to set RS422/RS485 operation.
J3
J2
J1
To Next Page
