GORBEL Destuff-it DTU - Remote Panel

22
860-7200-18 DTU DTB Service & Maintenance Manual

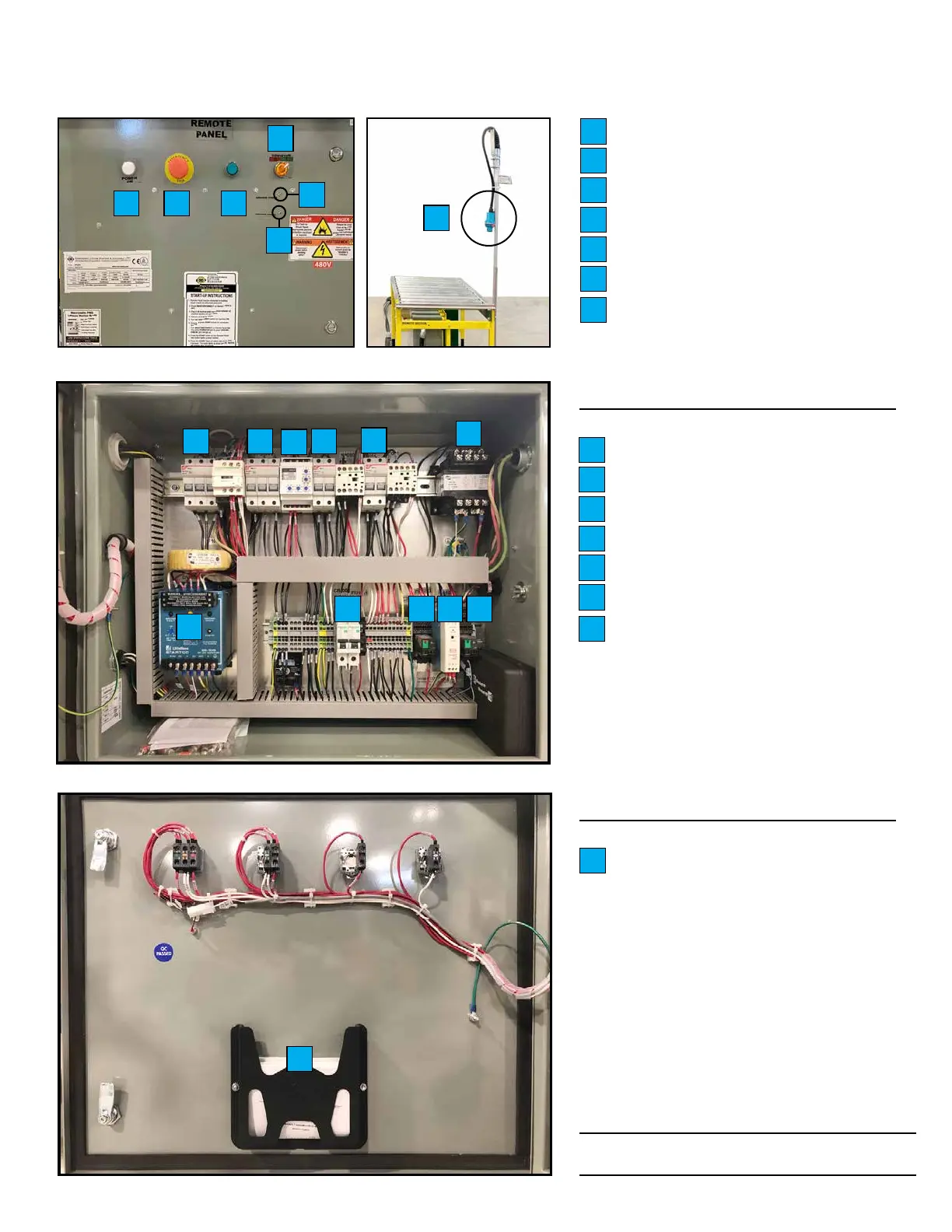

REMOTE PANEL
White Power ON Light
E-Stop Button
Green Start Button
Conveyor Start/Stop Selector Switch (if equipped)
Ground Check Green LED
Ground Fault Red LED
Meltric Connector
A
B
C
D
E
F
G
REMOTE PANEL (CASE)
REMOTE PANEL (DOOR)
G
Schematics
H
I
L
J
M
N
L
K
O
O
NOTE: If your machine has network integration, the Remote
Panel will appear dierent. Please see Appendix.
A B C
F
D
E
Fuses
Ground Fault/Monitor Relay
Relays
PMD (Phase Monitor Relay)
480V to 120VSEC Transformer
24VDC Power Supply
Circuit Breakers
H H H
I
K
H
J JMN
