GORBEL Destuff-it DTU - Access under Floor Plates

32
860-7200-18 DTU DTB Service & Maintenance Manual
ACCESS UNDER FLOOR PLATES

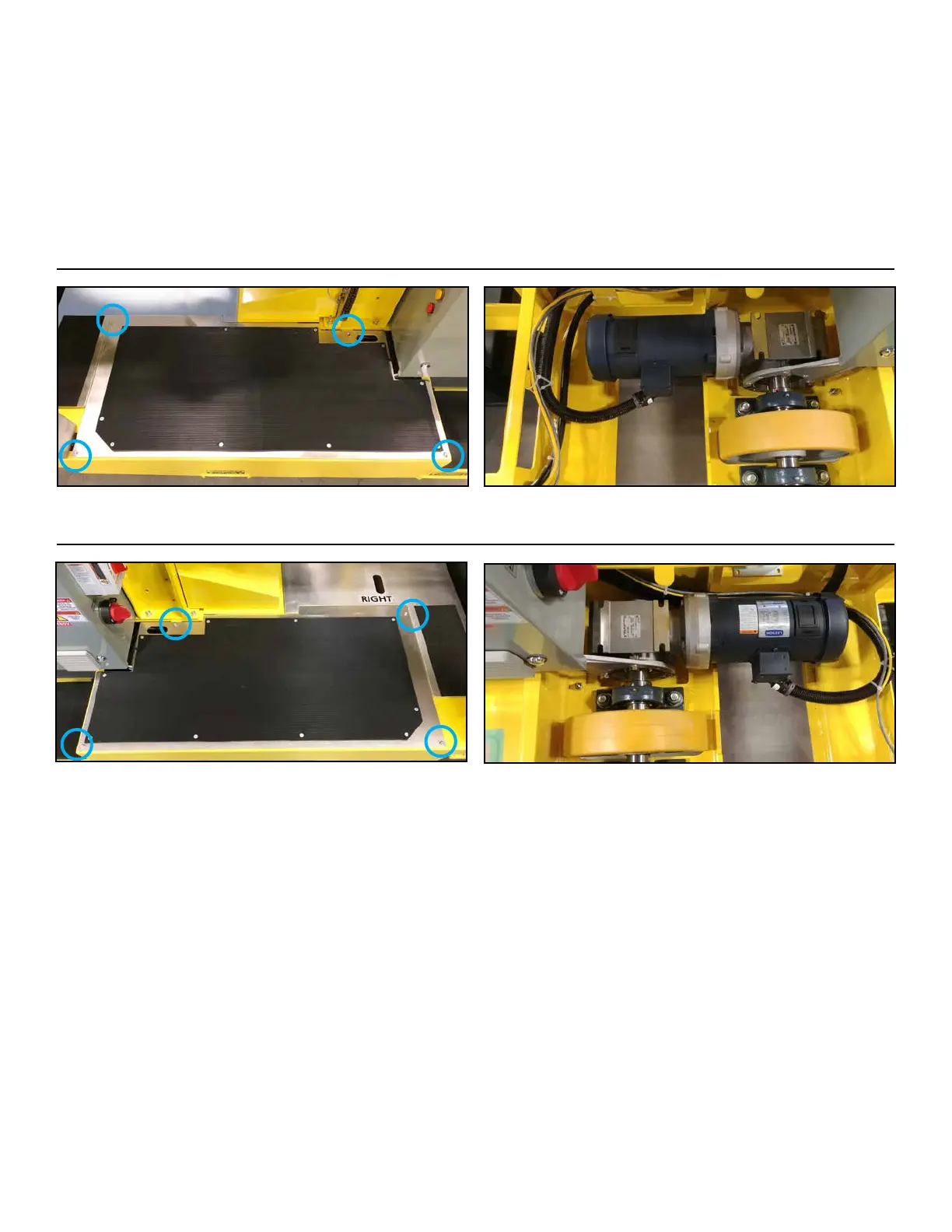

1� To remove oor plates, remove the four screws (as shown).
2� Move the plate only slightly to access the mat connector plug
and disconnect it�
3� The plate can now be fully removed to access the motor and
wheel�
DO NOT remove Sensing Mat from the oor plate.
Left Hand Side
Right Hand Side
