860-7200-18 DTU DTB Service & Maintenance Manual

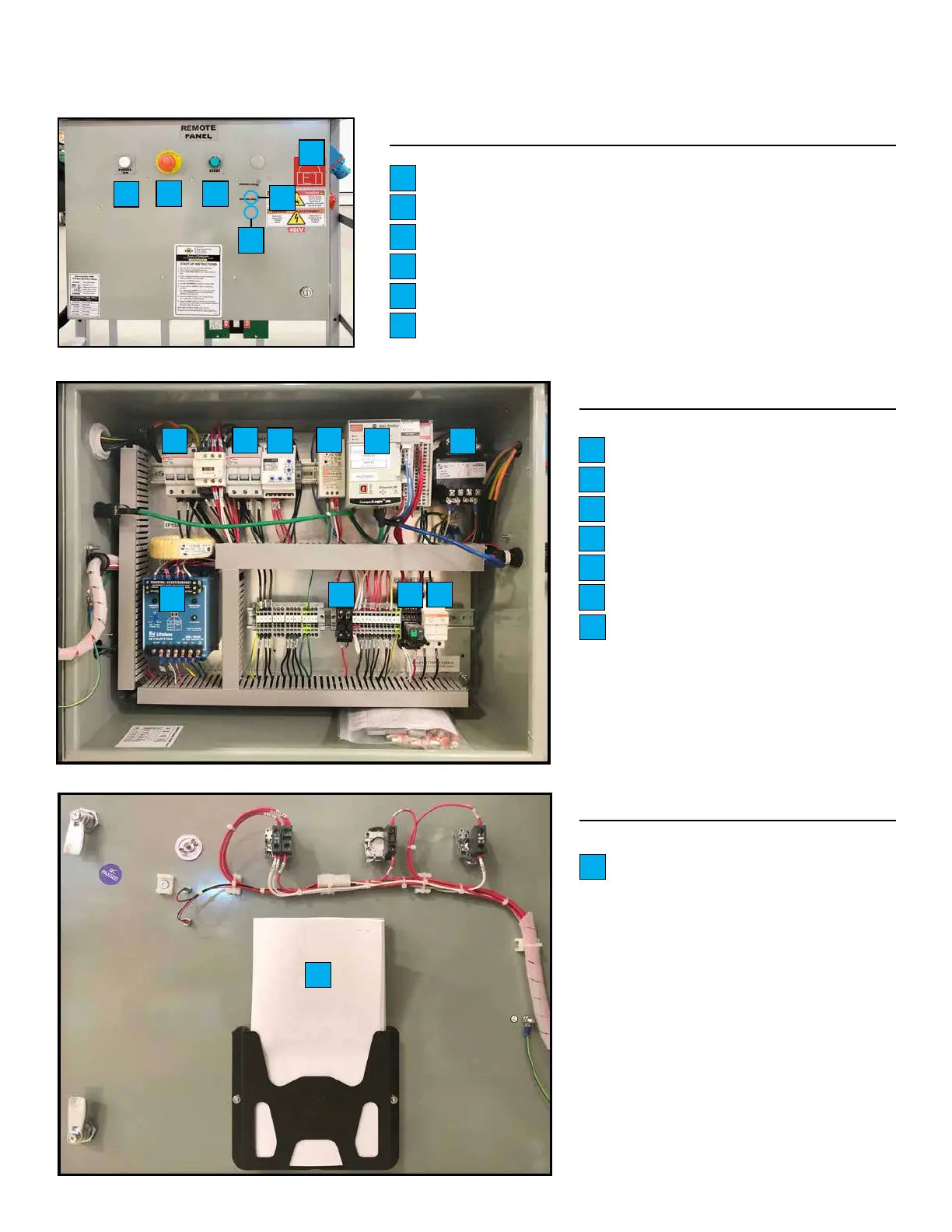

REMOTE PANEL (WITH NETWORK INTEGRATION)
White Power ON Light
E-Stop Button
Green START Button
Ground Fault Red LED
Ground Check Green LED
Meltric Connector
A
B
C
D
E
F
REMOTE PANEL (CASE)
REMOTE PANEL (FRONT)
REMOTE PANEL (DOOR)
F
Schematics
G
G
G G
G
H
K
I
M
L
K
J
J
I
N
M
A
B
C
D
E
Fuses
PMD (Phase Monitor Relay)
24VDC Power Supply
PLC (Program Logic Control)
480V to 120VSEC Transformer
Ground Fault/Monitor Relay
Relays
L
H
N
