860-7200-18 DTU DTB Service & Maintenance Manual
After connecting power supply to the Remote Panel, phasing
must be veried. If phasing is correct, the LED Status on the
Phasing Monitor Device (PMD) will be green and the White Power
Light on the door of the Remote Panel will turn on� If phasing is
reversed, the White Power Light on the door of the Remote Panel
will not turn on� The Remote Panel door must be opened and the
PMD observed to identify the LED Status� The LED Status on the
PMD will appear red when phasing is reversed�
Only correct phasing on the supply side of the connector� Never
change wiring on the machine side of the connector�
PHASING

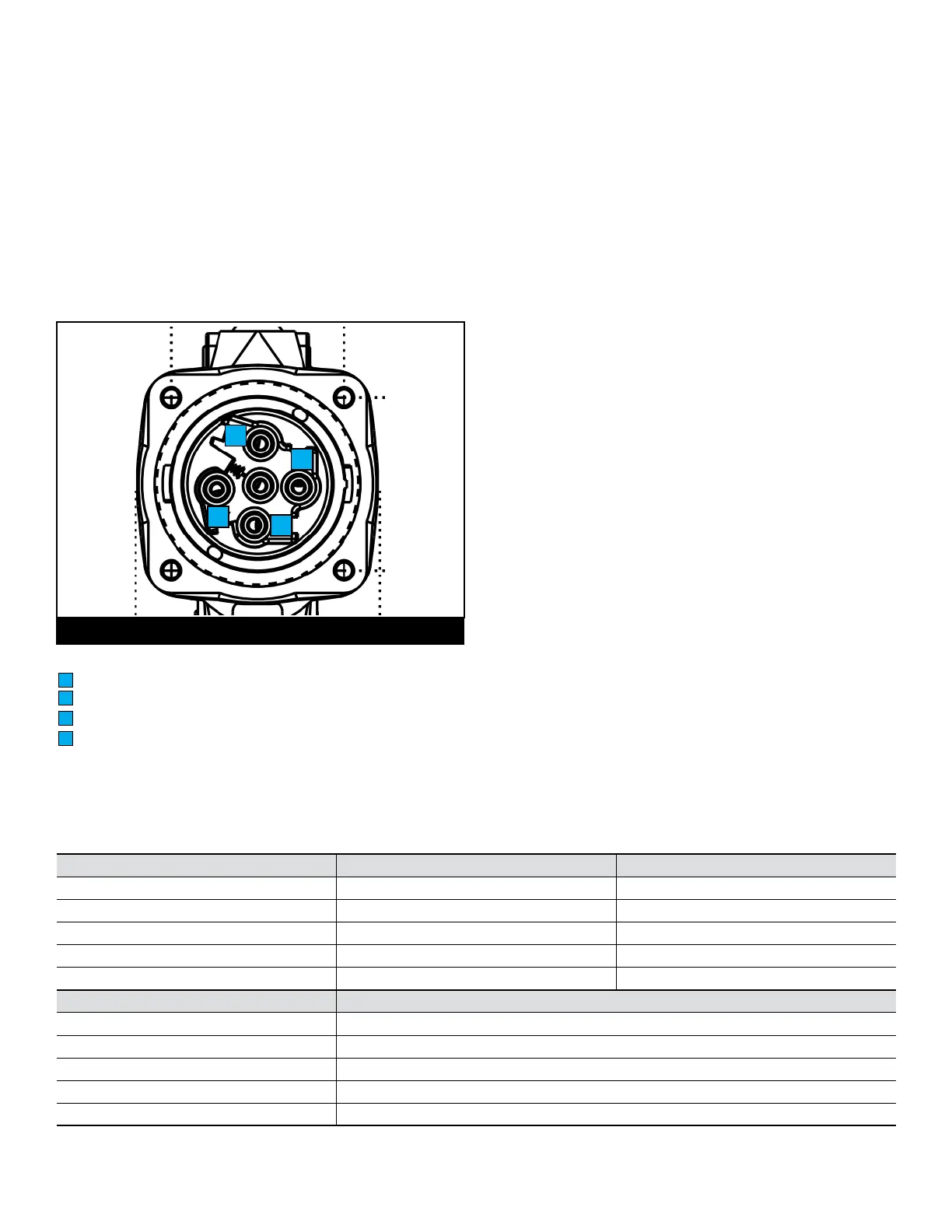

Meltric Connector Pins
1
2
3
N
PIN 1 = PHASE 1
PIN 2 = PHASE 2
PIN 3 = PHASE 3
PIN N = NEUTRAL
1
2
3
N
NORTH AMERICAN 20A APPLICATION 30A APPLICATION
CABLE TYPE SOOW 600V UL CSA CE SOOW 600V UL CSA CE
CONDUCTORS 3 and GROUND 3 and GROUND
SIZE 12 AWG 10 AWG
PHASE PH 1, 2, 3 and GROUND PH 1, 2, 3 and GROUND
DIAMETER RANGE 13-18 mm 18-25 mm
EUROPEAN 30A APPLICATION MAX�
CABLE TYPE HO7RN-F <HAR> 450/750V IEC 60811, EN 50395, EN 50396
CONDUCTORS 4 and GROUND
SIZE 2�5 mm
PHASE PH 1, 2, 3, N and GROUND
DIAMETER RANGE 12-15 mm
PE= GND GREEN / GREEN/YELLOW
Ground conductor to be electrically continuous and bonded to earth at the source�
For all locations National and Local Electrical Safety codes are to be followed�
