Gorgy Timing LEDI Network IN - Dual AFNOR;IRIG-B NFS87500 Output (B Type)

94
MDE-LEDI-NETWORK-IN-4065V1.0

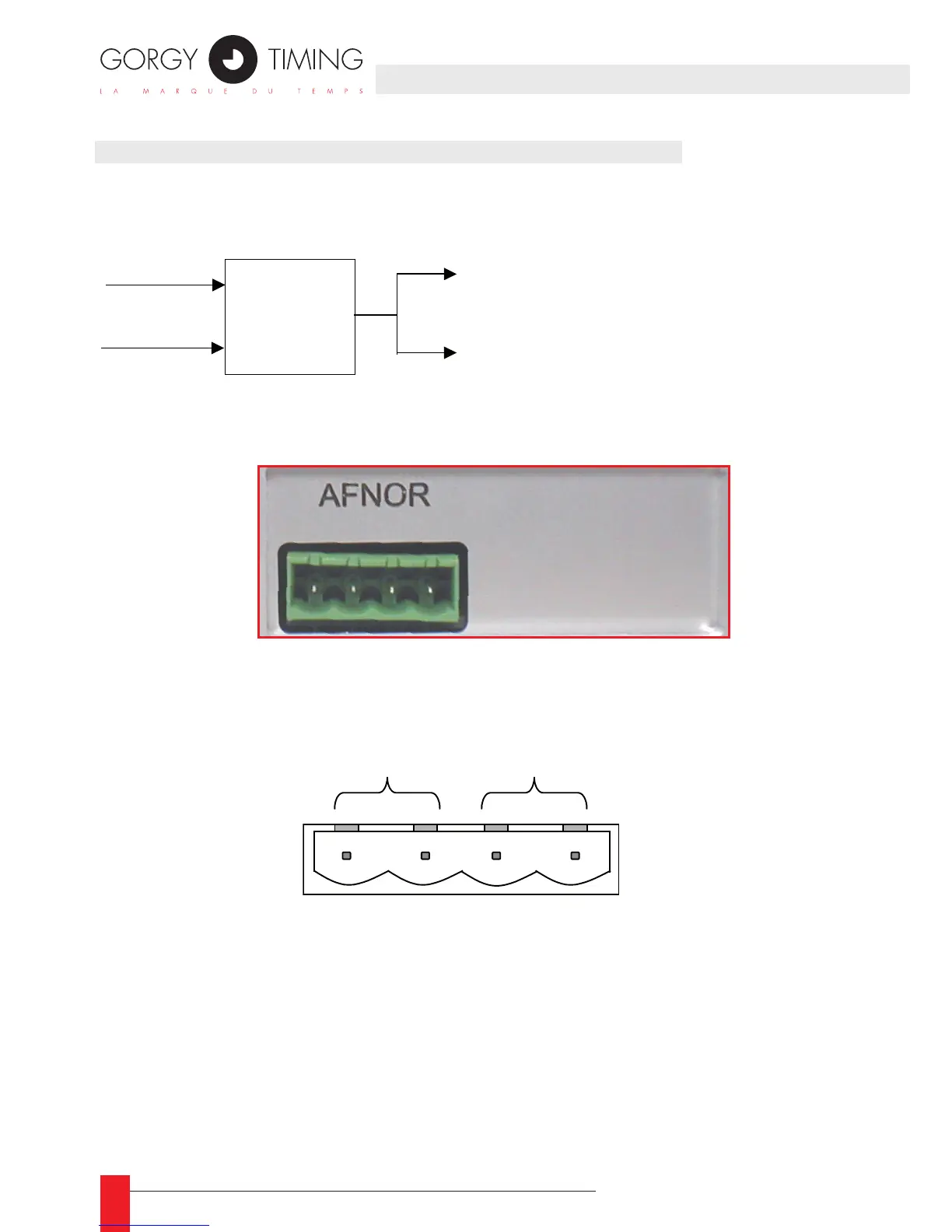

2. DUAL AFNOR/IRIG-B NFS87500 OUTPUT (‘B’ TYPE)
This card has its output on a single 4 points plug. The AFNOR code is available twice on
this output. Here is a schematic overview of the AFNOR/IRIG-B output card:
TOP
Time code
Amplitude
Modulator
AFNOR/IRIG-B output 1
AFNOR/IRIG-B output 2
The output connector is localized on the back side of the rack and is shown below:
Here is the pin-out of the connector (the same signal is generated on outputs ½ and ¾) :
APPENDIX A – CONNECTIONS
Output 2
Output 1
1 2 3 4
