4.2.5. Output and display setup

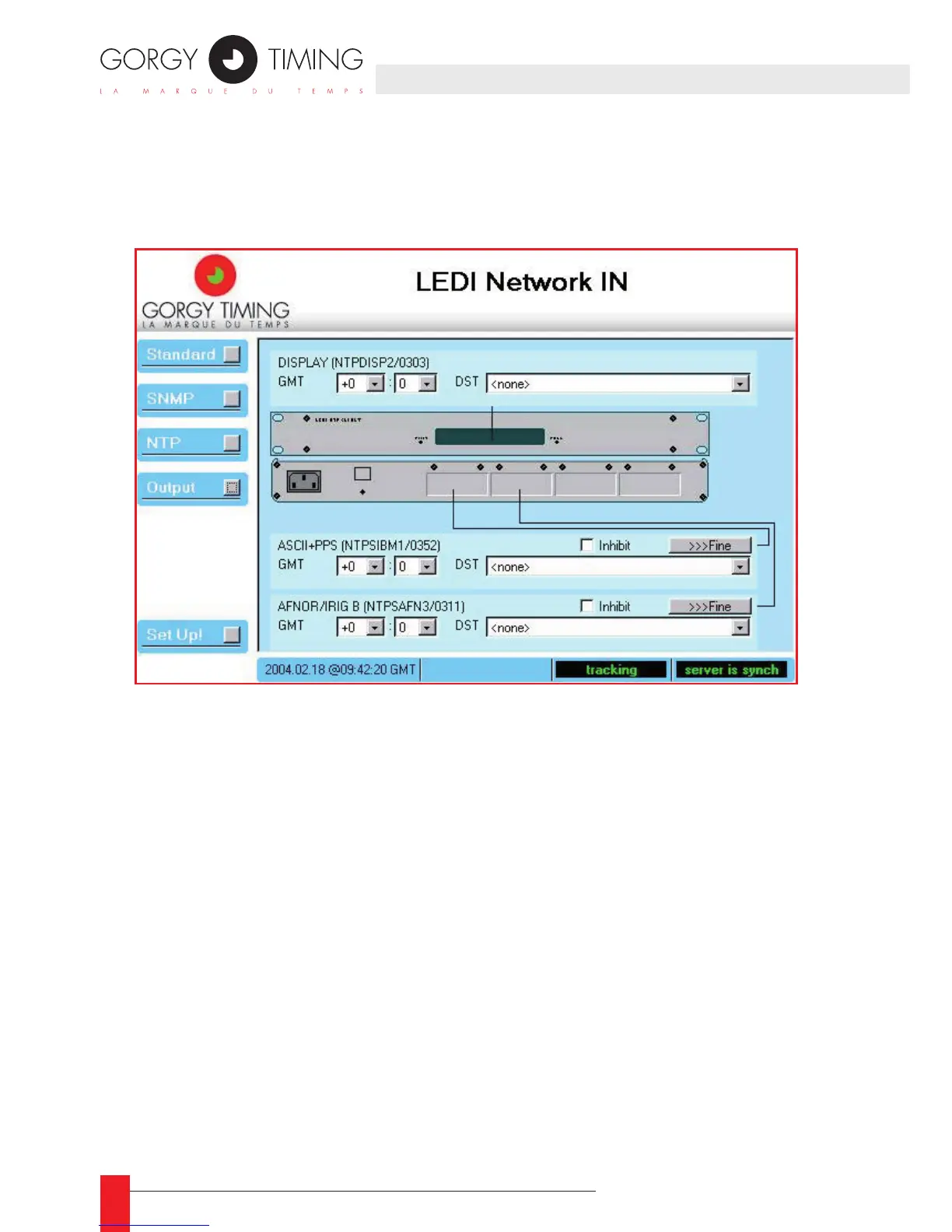

When you click on the Output button, the conguration of the output of the LEDI Network

IN is displayed as shown below:

This panel shows a synthetic view of the outputs of the product. The display is conside-

red as an output and is driven by a display card. A LEDI Network IN can contain up to 4

output cards plus the display card.

The display and each output cards can be congured independently using the right

cyan box. When an output card is not present or in failure, its box doesn’t appear.

At this time, there are 6 kinds of output cards:

• ASCII+TOP RS232 (‘A’ type card).

• ASCII+TOP RS485 (‘R’ type card).

• AFNOR NFS 87500 / IRIGB (‘B’ type card).

• AFNOR /IRIGB TTL / RS422 (‘T’ type card).

• ALARM (‘G’ type card);

• NTP server (‘N’ type card).

You can freely use and copy the table Devices conguration in Appendix F – Additional

documents.
