Gorgy Timing LEDI Network IN - Dual AFNOR;IRIG-B NFS87500 DCLS RS422 and TTL Output (T Type)

95
MDE-LEDI-NETWORK-IN-4065V1.0
APPENDIX A – CONNECTIONS
3. DUAL AFNOR/IRIG-B NFS87500 DCLS RS422 AND TTL OUTPUT
(‘T’ TYPE)

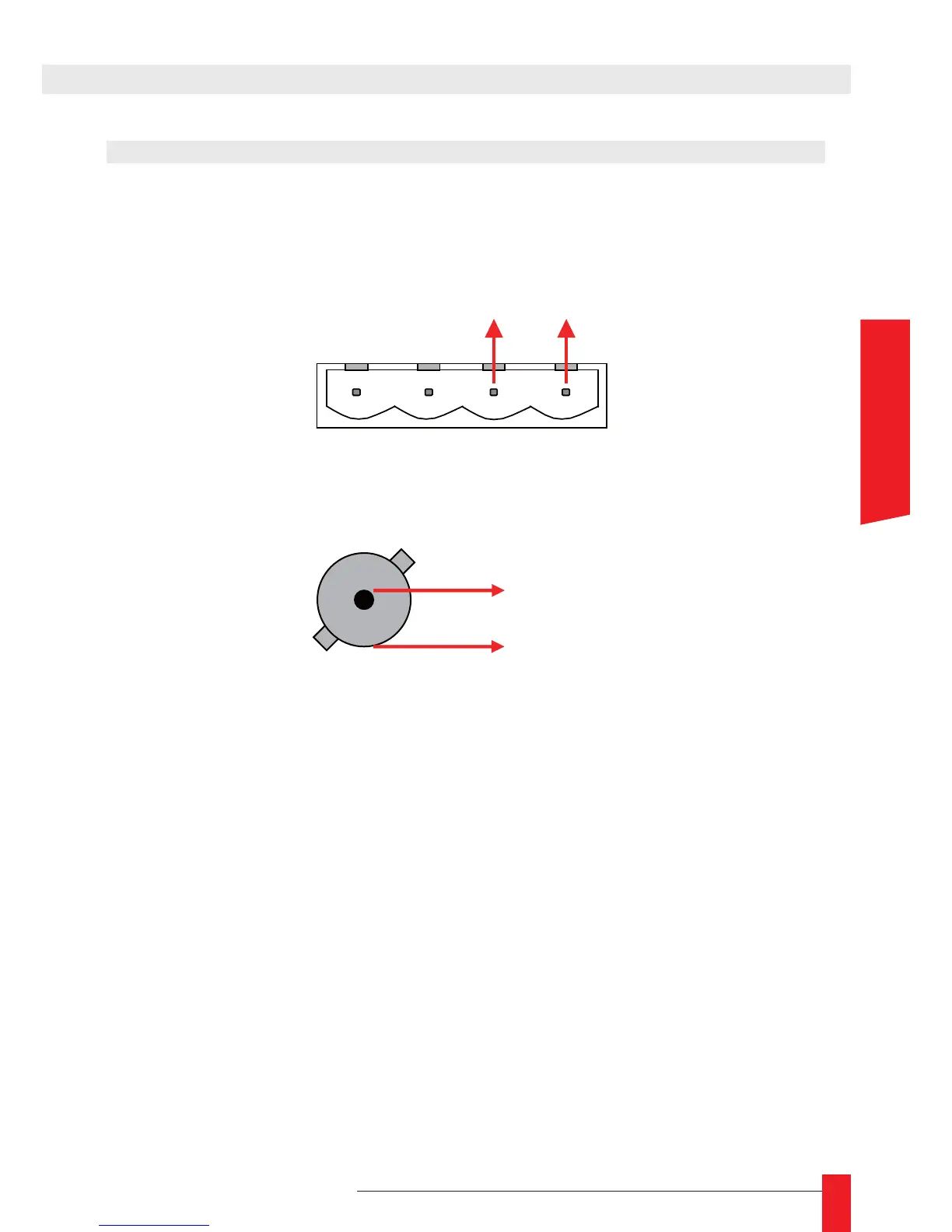

This card has its outputs on a 4 points plug and a BNC connector. The RS422 AFNOR code
is available on the 4 points output :
The BNC connector provides TTL signal :
Tx/Rx +
1 2 3 4
Tx/Rx -
Tx
GND
