Maintenance Procedures
20 313527ZAD
Remove 30 and 55 Gallon Platen Wipers
1. To replace worn or damaged wipers (EB), raise
platen up out of drum. Remove drum from base.
Wipe fluid off of platen.
2. Cut top and bottom wipers with knife and remove
from platen. See FIG. 15.
Reinstall 30 and 55 Gallon Platen Wipers
1. Using a wooden or plastic tool to prevent damage to
the wiper (EB), clean all material from seal grooves.
2. Working from the bottom, angle one wiper (EB) over
back of platen. See FIG. 16.
3. Insert wiper (EB) in top groove and run front of wiper
into groove.
4. 55 gallon wiper only: Insert second wiper (EB) in
lower groove and run front of wiper into groove.
5. Lubricate outside of wiper with lubricant compatible
with material being pumped. Check with material
supplier.
Remove 55 Gallon Platen Hose Wipers
1. To replace worn or damaged wipers (EB), raise
platen up out of drum. Remove drum from base.
Wipe fluid off of platen.
2. Loosen ends of banding (410) with jack screw. See
FIG. 17.
Reinstall 55 Gallon Plate Hose Wipers
1. Clean all material from the seal grooves. Lubricate
ram plate grooves before assembly.
2. Assemble two bands (410) together. Align one end
of band about 9 in. from jack screw and tape
attached band. Install screw jack in slot.

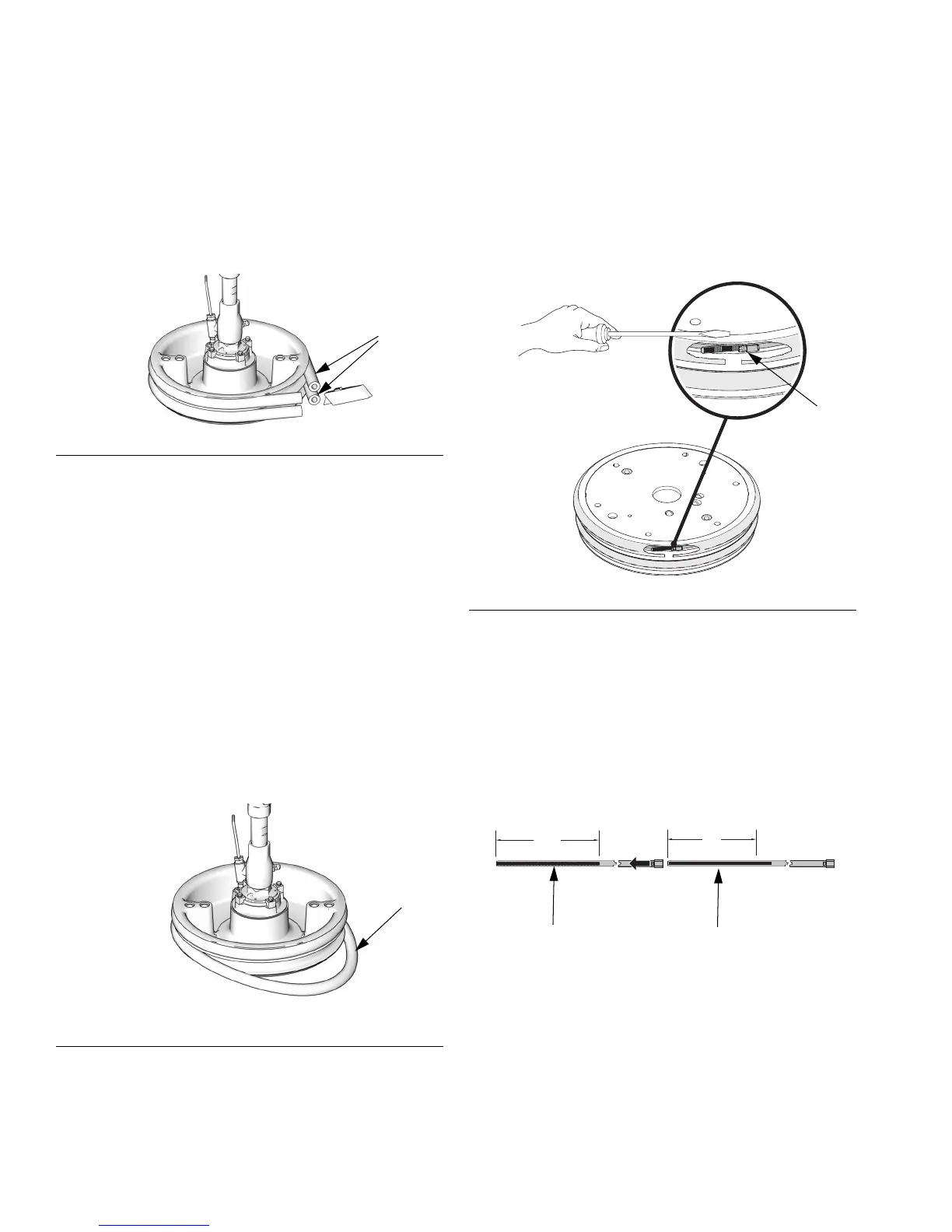

FIG.15
FIG.16
TI10613A
EB
TI10614A
EB
FIG.17
WLD
410
WLD


1
1
