Graco D200 - Platen Mounting Kits

Parts
313527ZAD 61

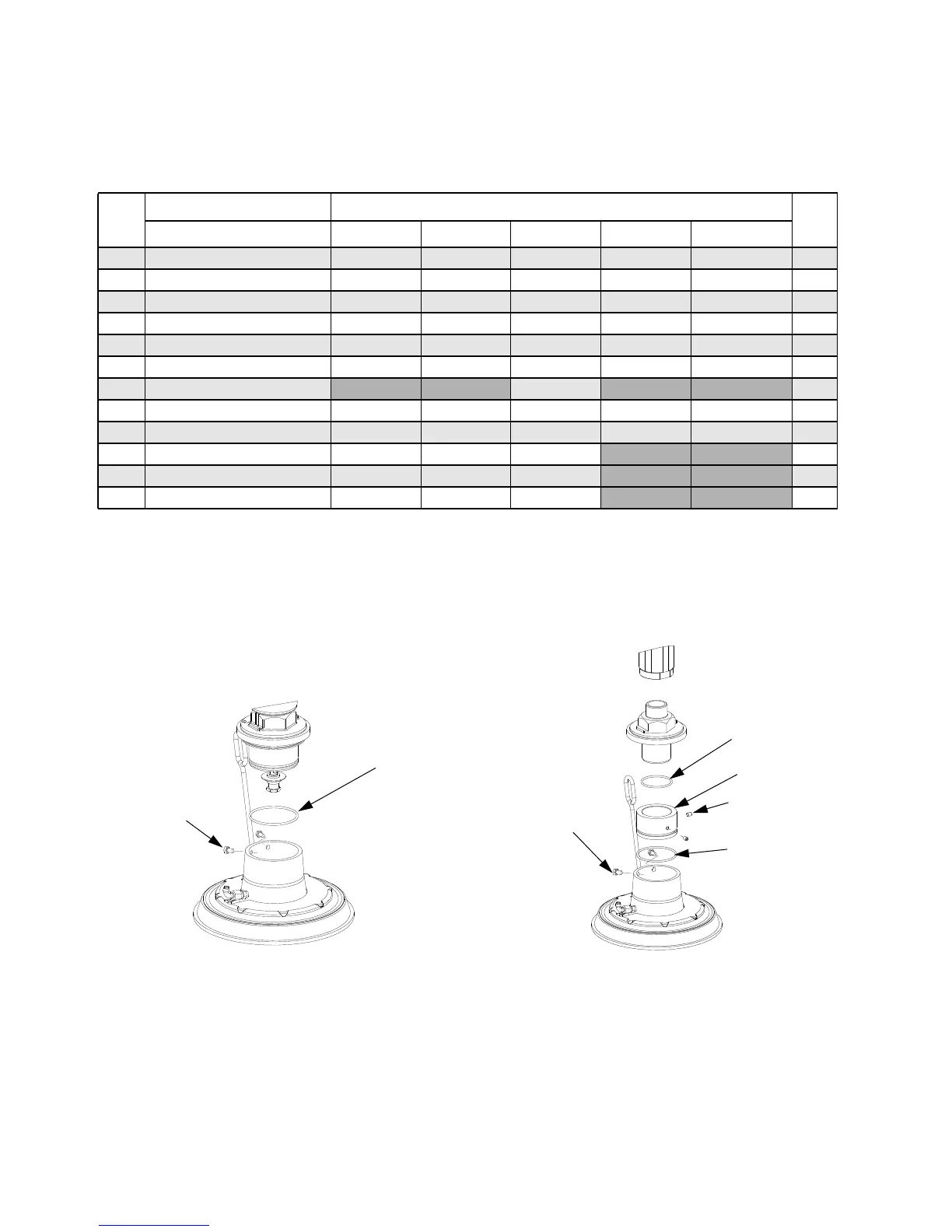

Varying Parts - 60 Liter (16 Gallon) Platens
The following tables indicates which parts (according to reference number) are included with each platen.
Parts designated n/a are not available separately. ‡ See page 59 for wiper assembly kits.
Platen Mounting Kits
Ref.
Reference Numbers
Qty:Description 257737 257740 257738 257739 257741
451 BASE 257665 257665 257662 257665 257665
1
452‡
SPACER 257684 257684 257684 257696 257696
1
453‡
WIPER, main 257674 257680 257677 257674 (2) 257680 (2)
1 (2)
454‡
WIPER, PE support 257683 257683 257683 257683 257683
1
455‡
PLATE, bottom n/a n/a n/a n/a n/a
1
457‡
PLATE, top n/a n/a n/a n/a n/a
1
460‡
WIPER, support 257691
1
462‡
SCREW, cap, hex hd 100057 100057 112894 100057 100057
2
464 VALVE, check 122056 122056 501867 122056 122056
1
468‡
TAG, instructions n/a n/a n/a
1
469‡
COVER 15X404 15X404 15X404
1
470‡
PIN, hairpin, cotter (10pack) 16U740 16U740 16U740
2
463
462
Check-Mate Mounting
r_255648_313527_35a
472
473
471
463
462
Dura-Flo Mounting Kit 257630
r_255648_313527_36a
Ref. Part Description Qty.
463 109482 O-RING 1
471 ADAPTER 1
472 SCREW, socket-hd 2
473 109458 O-RING 1
