Repair
ES ES
ES
On On
On
- -
-
Off Off
Off
Valve Valve
Valve
Repair Repair
Repair
1.Followthestepsin
PreparetheGunforService,page39.
2.Loosenthecaptivescrew(26p).Removethe
valve(26)fromthehandle.
3.Lubricatetheo-rings(26b*and26g*)with
non-siliconegrease,PartNo.111265.Donot
over-lubricate.
NOTE: NOTE:
NOTE:
Donotover-lubricateparts.Excessive
lubricantontheo-ringscanbepushedintothe
gunairpassageandblemishthe󰘰nishonthe
workpiece.
4.Cleanandinspectpartsfordamage.Replace
ifnecessary.
NOTE: NOTE:
NOTE:
Theprotrusionontheretainerplate(26f)
mustpointupward.
5.Reinstallthevalve.Torquethescrew(26p)to
15-25in-lb(1.7-2.8N•m).

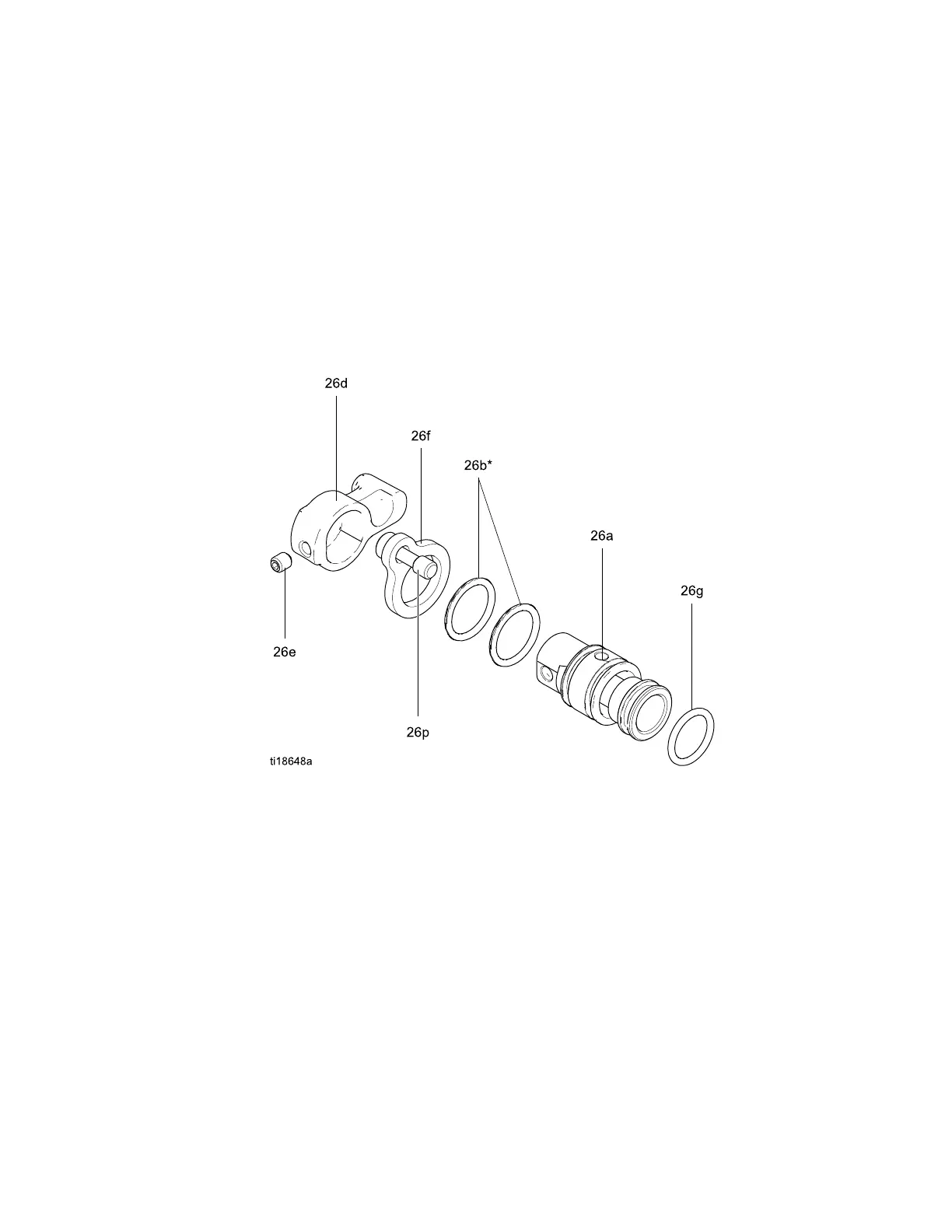

Figure39ESOn-OffValve
3A2495K49
