Graco Pro Xp H60T10 - ES On-Off Valve Repair; Air Valve Repair

Repair
Air Air
Air
Valve Valve
Valve
Repair Repair
Repair
1.Followthestepsin
PreparetheGunforService,page39.
2.FollowthestepsinGunBarrelRemoval,page43.
3.Removethescrews(13)andtrigger(12).
4.RemovetheESOn-OffValve.See
ESOn-OffValveRepair,page49.
5.Removethespring(2).
6.Pushonthefrontoftheairvalveshafttoforceit
outthebackofthehandle.Inspecttherubber
seal(23a*)andreplaceifdamaged.
7.Inspecttheu-cup(3).Donotremovetheu-cup
unlessdamaged.Ifremoved,installthenewone
withitslipsfacingintothegunhandle(16).Place
theu-cupontheshaftoftheairvalvetohelpseat
itinthegunhandle.
Figure40InstallU-Cup
8.Installtheairvalve(23)andspring(2)intothe
gunhandle(16).
9.InstalltheESOn-OffValve.See
ESOn-OffValveRepair,page49.
10.Installthetrigger(12)andscrews(13).
11.Followthestepsin
GunBarrelInstallation,page43.

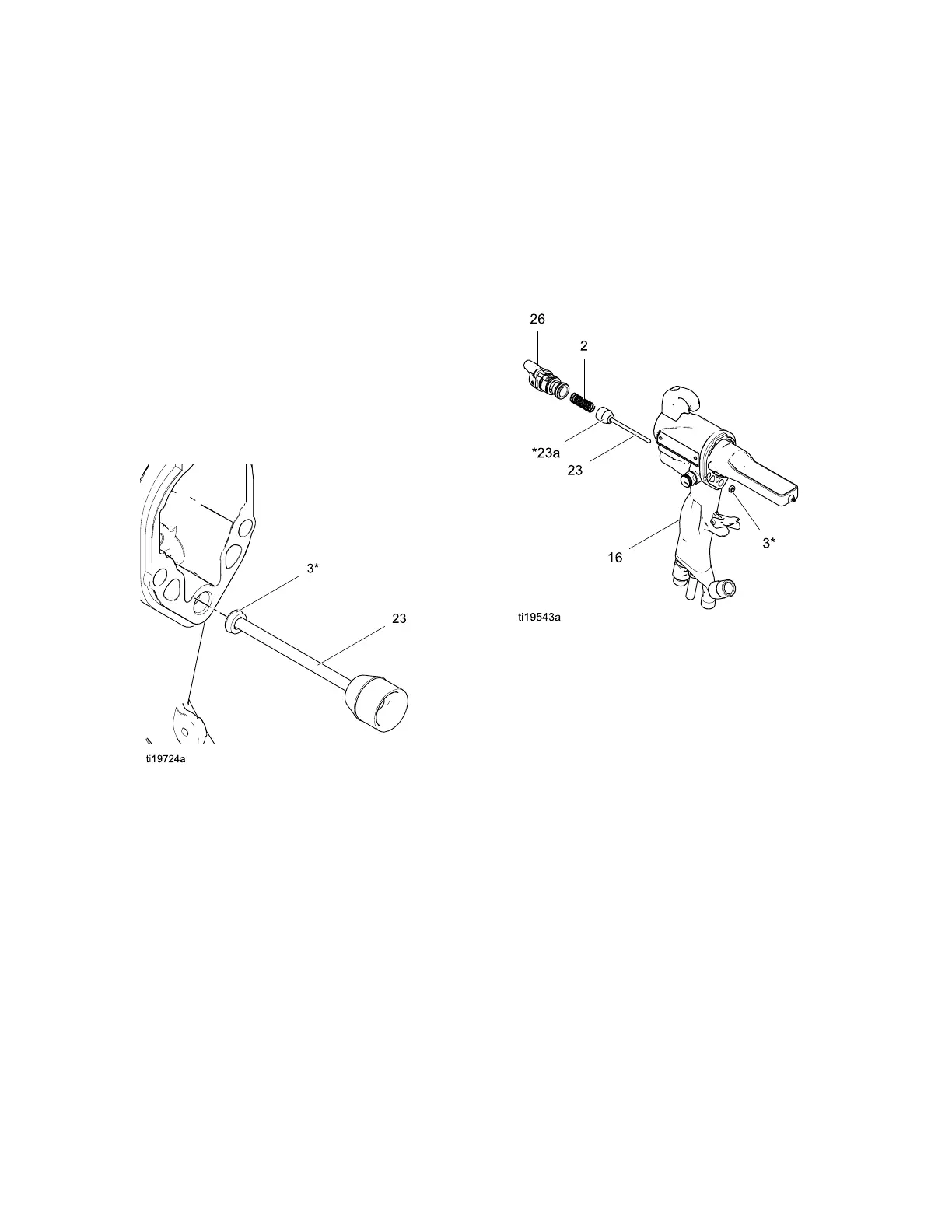

Figure41AirValve
503A2495K
